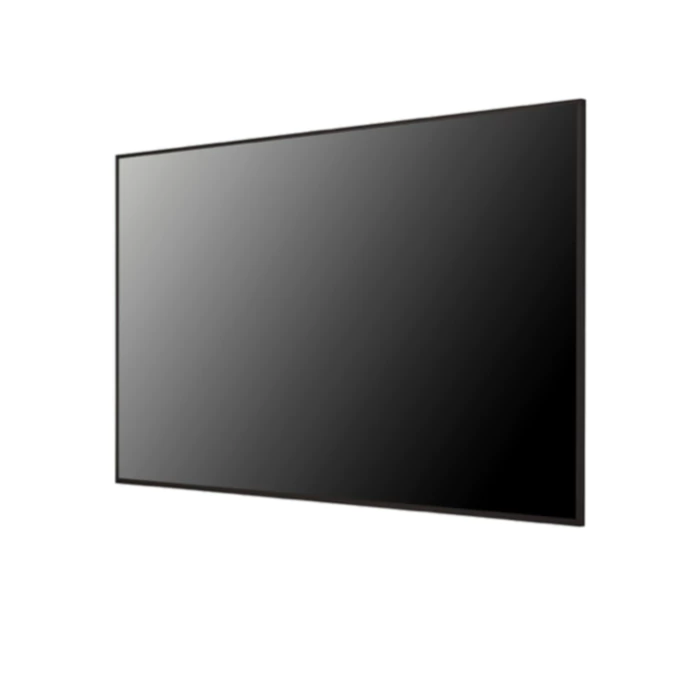

LG 65" UHD Signage Display TV 65UH5N-E | High Resolution Smart Platform

---



---

Specifications

65UH5N-E

INFO

• Product: Standard (UHD)
• Year: Y23
• Month: M05

• Screen Size (Inch): 65"
• Panel Technology: IPS
• Back Light Type: Edge
• Aspect Ratio: 16:9
• Native Resolution: 3840 x 2160 (UHD)
• Refresh Rate: 60Hz
• Brightness (Typ.): 500nit (Typ.)
• Contrast Ratio: 1,100:1
• Dynamic CR: 1,000,000:1
• Color gamut: BT709 95%
• Viewing Angle(H x V): 178 X 178
• Color Depth: 10bit(D), 1.07Billion colors
• Response Time: Tr : 8ms / Tf :10ms
• Surface Treatment(Haze): 28%
• Life time: 50,000Hrs (Min.)
• Operation Hours (Hours/Day): 24/7
• Portrait / Landscape: Yes / Yes

• (JACK INTERFACE)
• HDMI IN: Yes(3), 3840×2160@60Hz, HDCP 2.2/1.4
• DP IN: Yes(1), 3840×2160@60Hz, HDCP2.2/1.3
• RS232C IN: Yes (1), 4pin Phone-jack
• RJ45(LAN) IN: Yes (1)
• IR IN: Yes (1)
• USB IN: USB2.0 Type A(1)
• HDMI Out: Yes(1), 3840×2160@30Hz, Input : HDMI1/2/3/DP
• Audio Out: Yes (1)
• RS232C Out: Yes (1), 4pin Phone-jack
• IR Out: No (Support IR daisy chain via RS232C IN/OUT)
• Daisy Chain: Yes(Input HDMI, DP / Output HDMI)

• Bezel Color: Black
• Bezel Width: T/R/L: 8.9mm, B: 12.9mm
• Weight (Head): 24.2 kg
• Packed Weight: 30.4 kg
• Monitor Dimensions (W x H x D): 1450.3 x 830.3 x 29.7mm (Without IR)
• Carton Dimensions (W x H x D): 1600.0 x 970.0 x 172.0mm
• VESATM Standard Mount Interface: 300 x 300

• Internal Memory: 16GB
• Wi-Fi (Built-in): Yes
• Temperature Sensor: Yes
• Auto Brightness sensor: Yes(IR)
• Acceleration(Gyro) Sensor: Yes
• Local Key Operation: Yes
• Speaker (Built-in): Yes

• OS ver.: webOS6.0
• Local Contents Scheduling: Yes
• Group Manager: Yes
• USB Plug & Play: Yes
• Fail over: Yes
• Booting Logo Image: Yes
• No Signal Image: Yes
• RS232C Sync: Yes
• Local Network Sync: Yes
• PIP: Yes
• PBP: Yes (4)
• Screen Share: Yes
• Video Tag: Yes (4)
• Play via URL: Yes
• Screen Rotation: Yes
• External Input Rotation: Yes
• Gapless Playback: Yes
• Tile Mode Setting: Yes (Max. 15×15)
• Setting Data Cloning: Yes
• SNMP: Yes
• ISM Method: Yes
• Auto Set ID: Yes
• Status Mailing: Yes
• Control Manager: Yes
• Cisco Certi.: Yes

• Crestron Inside: Yes
• Smart Energy Saving: Yes
• PM mode: Yes
• Wake on LAN: Yes
• Beacon: Yes
• Network Ready: Yes
• HDMI-CEC: Yes
• SI Server Setting: Yes
• webRTC: Yes
• Pro:Idiom: Yes

• Operation Temperature: 0°C to 40°C
• Operation Humidity: 10 % to 80 %

• Power Supply: AC 100-240V~, 50/60Hz
• Power Type: Built-In Power
• Power Consumption (Typ.): 145W
• Power Consumption (Max.): 200W
• Power Consumption (British Thermal Unit): 495 BTU/Hr(Typ.), 682 BTU/Hr(Max)
• Power Consumption (Smart Energy Saving, ~70%): 101.5W
• Power Consumption (DPM): 0.5W
• Power Consumption (Power Off): 0.5W

• Safety: CB / NRTL
• EMC: FCC Class "B" / CE / KC
• ErP / Energy Star: Yes(NewErP)/Yes
• ePEAT(US only): Yes
• ISTA6: Yes(~'23.9, US Suffix Only)
• Carbon Trust: Yes(TBD, Reducing CO2)
• BS476 Part7: Class 1 (case top / back cover)
• EN13501-1: Class A1 (case top) / Class A2 (back cover)

• SuperSign CMS: Yes
• SuperSign Control / Control+: Yes / Yes
• SuperSign WB: Yes
• SuperSign Cloud: Yes
• Mobile CMS: Yes
• Connected Care: Yes

• OSD: English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish→Türkiye, Arabic

• Basic: Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA)
• Optional: Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) | Wall Mount Adapter (AM-B330S)

• Tilt (Face Down): Yes(Max 30º degree, 40ºC temperature)
• IP Rating: IP5X
• Conformal Coating (Power Board): Yes
