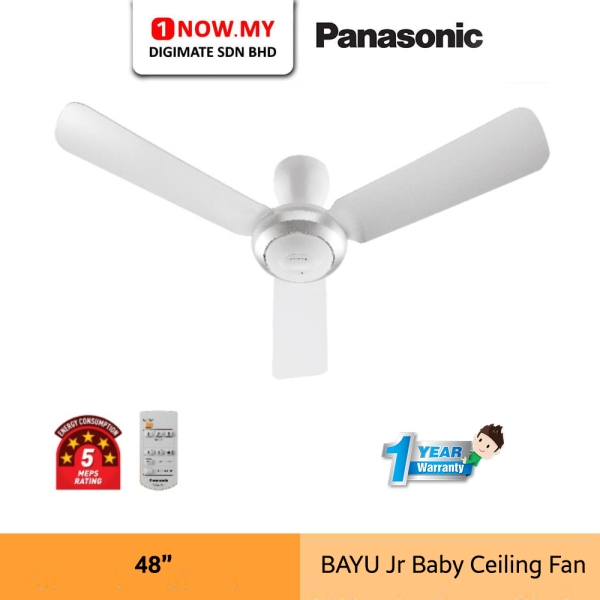

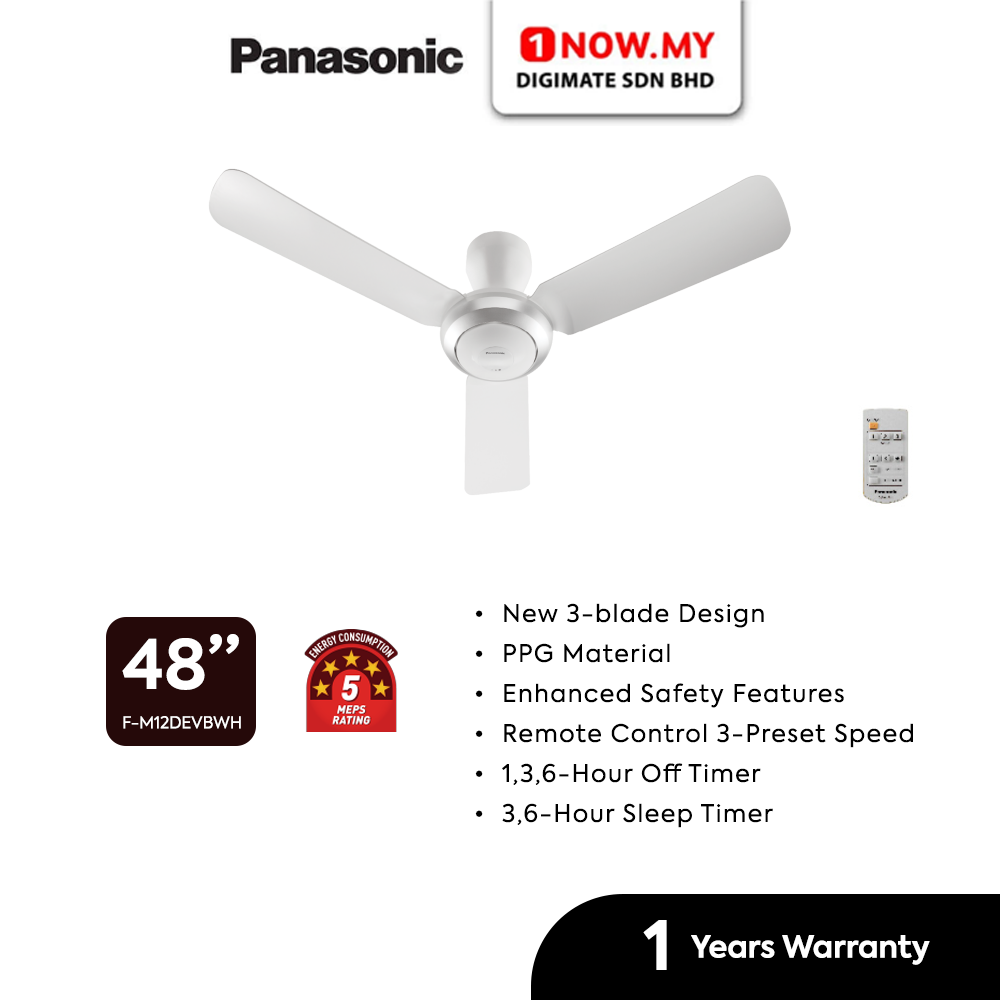

PANASONIC 48 Inch BAYU Jr Baby Ceiling Fan F-M12DEVBWH | Remote Control Timer 3 Speed

---

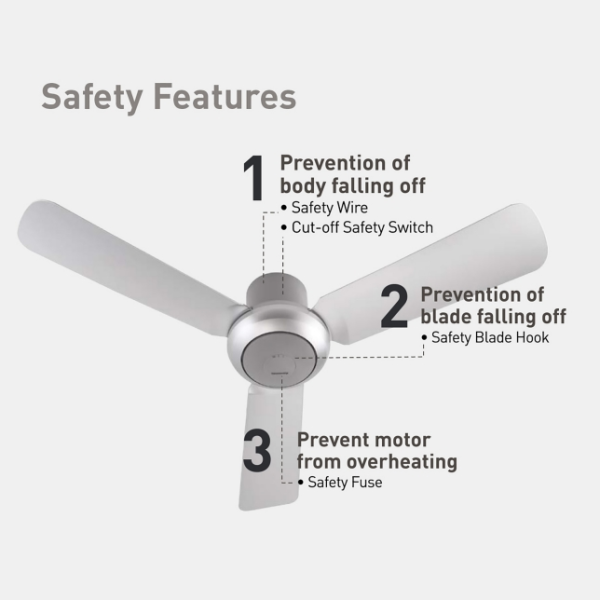

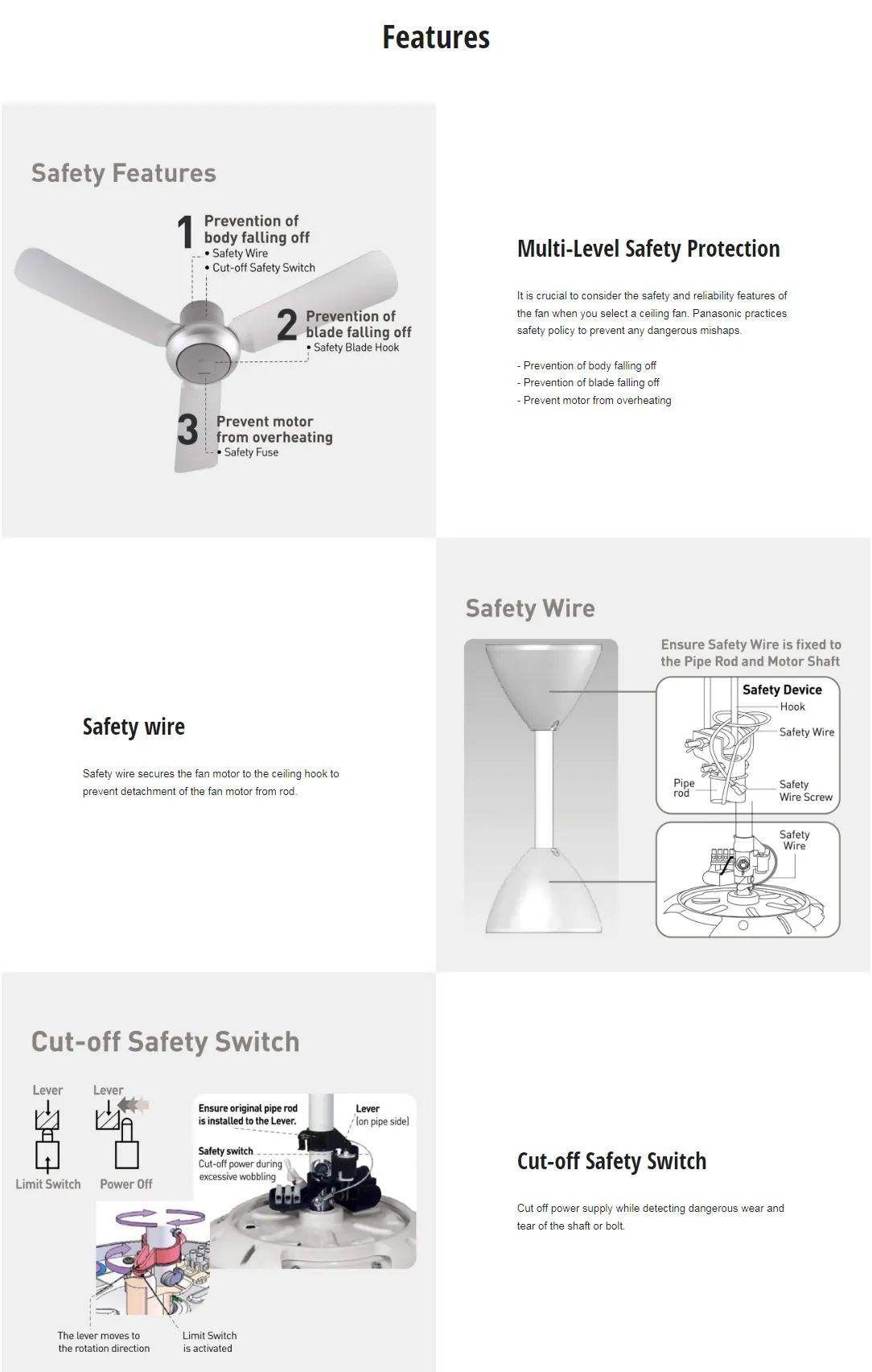

Multi-Level Safety Protection

It is crucial to consider the safety and reliability features of the fan when you select a ceiling fan. Panasonic practices safety policy to prevent any dangerous mishaps.

– Prevention of body falling off
– Prevention of blade falling off
– Prevent motor from overheating

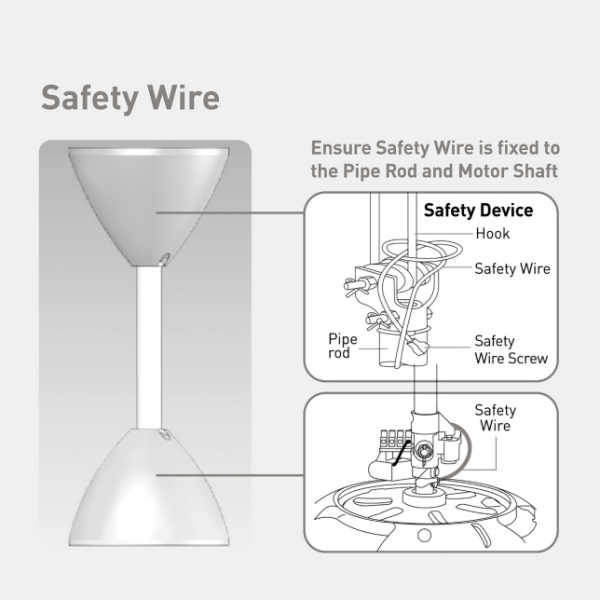

Safety wire

Safety wire secures the fan motor to the ceiling hook to prevent detachment of the fan motor from rod.

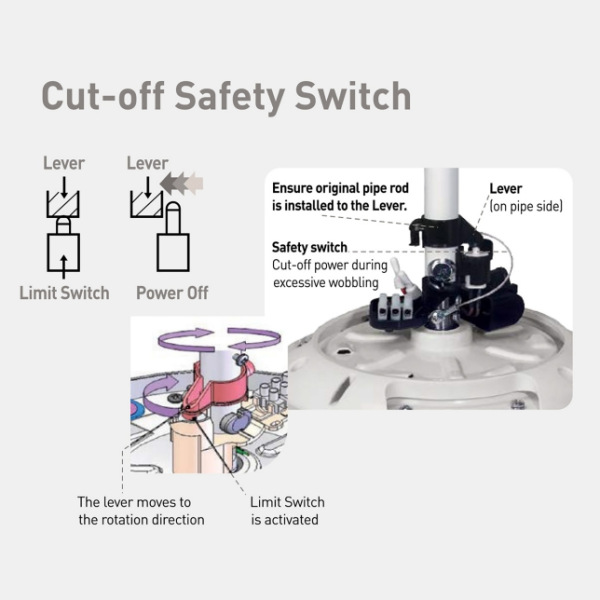

Cut-off Safety Switch

Cut off power supply while detecting dangerous wear and tear of the shaft or bolt.

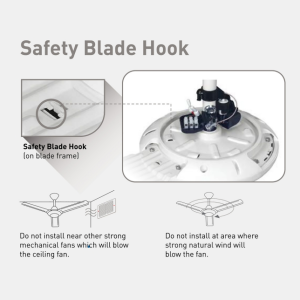

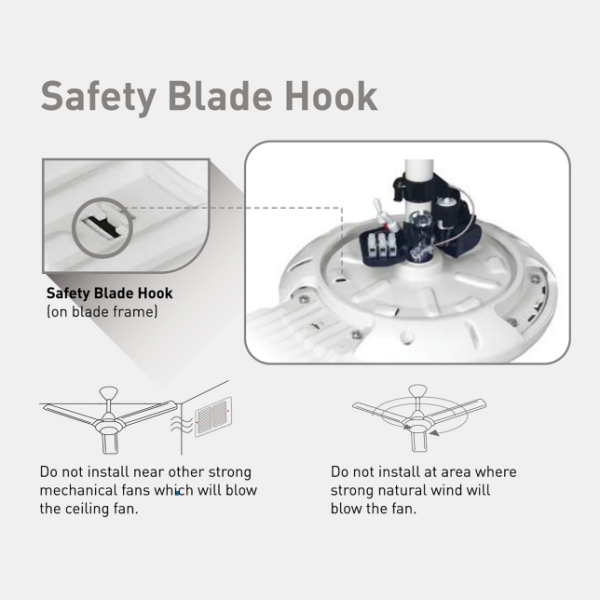

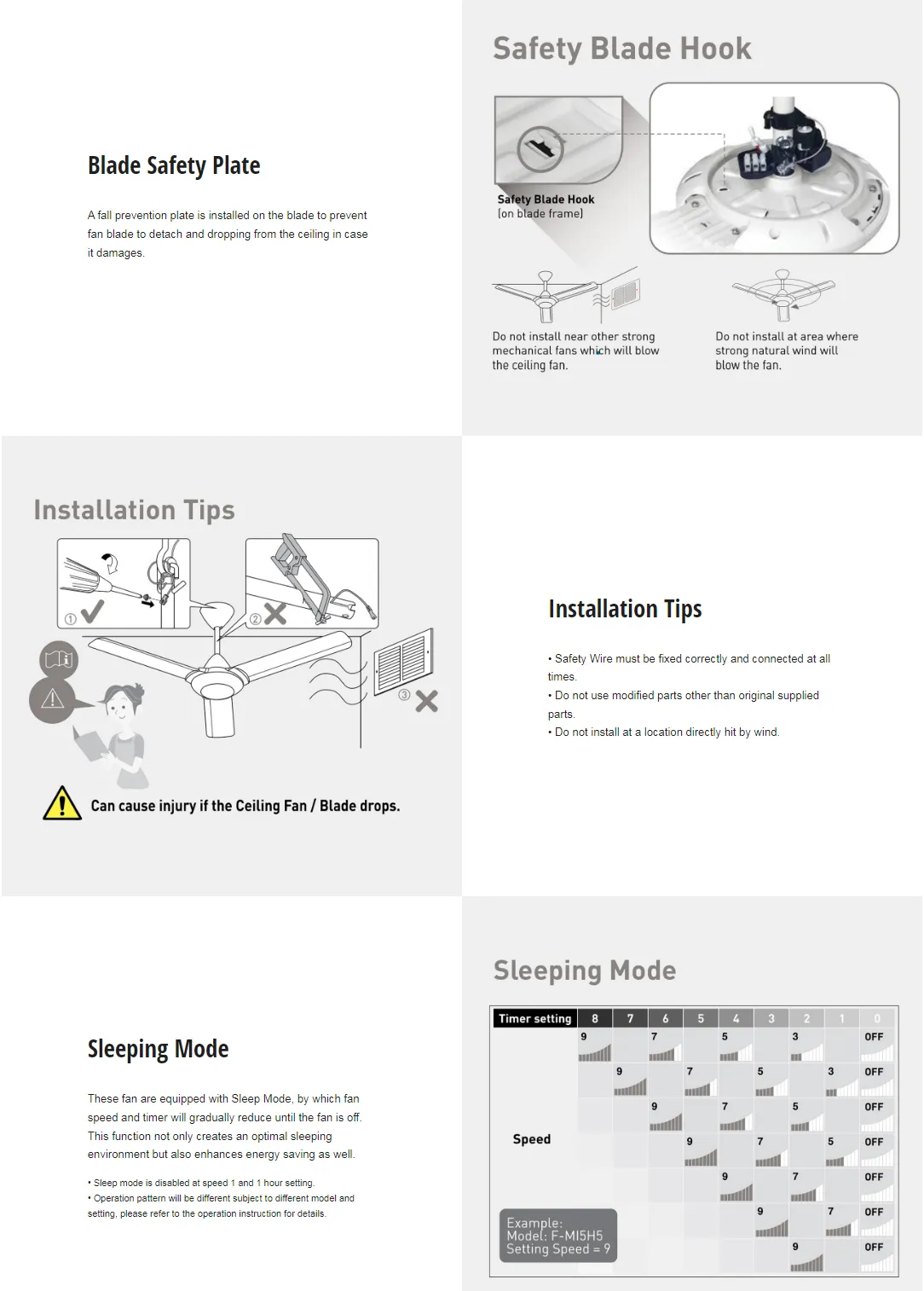

Blade Safety Plate

A fall prevention plate is installed on the blade to prevent fan blade to detach and dropping from the ceiling in case it damages.

Installation Tips

• Safety Wire must be fixed correctly and connected at all times.
• Do not use modified parts other than original supplied parts.
• Do not install at a location directly hit by wind.

Sleeping Mode

These fan are equipped with Sleep Mode, by which fan speed and timer will gradually reduce until the fan is off. This function not only creates an optimal sleeping environment but also enhances energy saving as well.

• Sleep mode is disabled at speed 1 and 1 hour setting.
• Operation pattern will be different subject to different model and setting, please refer to the operation instruction for details.

---

Specificattions

• Model No: F-M12DEVBWH
• Motor Type:
• LED Lighting: No
• 1/f Yuragi: N/A
• Remote Control: Yes
• Mobile App Control: N/A
• Blade Type: PPG Material
• Color: White
• Width (mm): Ø1200mm (48”)
• Height (mm): 305mm
• Power Consumption (Fan Only): Low (W): 22 ; High (W): 65
• Forward Fan Speed: Low (RPM): 118 ; High (RPM): 223
• Reverse Fan Speed: Low (RPM): N/A ; High (RPM): N/A
• Air Velocity (m/min): 185
• Air Delivery (m³/min): 187
• Noise Level (dB):
• Wi-Fi Frequency Range: N/A
• Mobile App OS: N/A

---

DIMENSION
