MAXHUB 65″ XBoard V7 Series 4K UHD Interactive Display Business Touchscreen V6550

---

ALL-IN-ONE WINDOWS-BASED INTERACTIVE FLAT PANEL POWERED BY MAXHUB OS

The Windows-based MAXHUB XBoard provides seamless compatibility

Instant Meeting Access With One Click

There are four mainstream conference platforms to choose from.

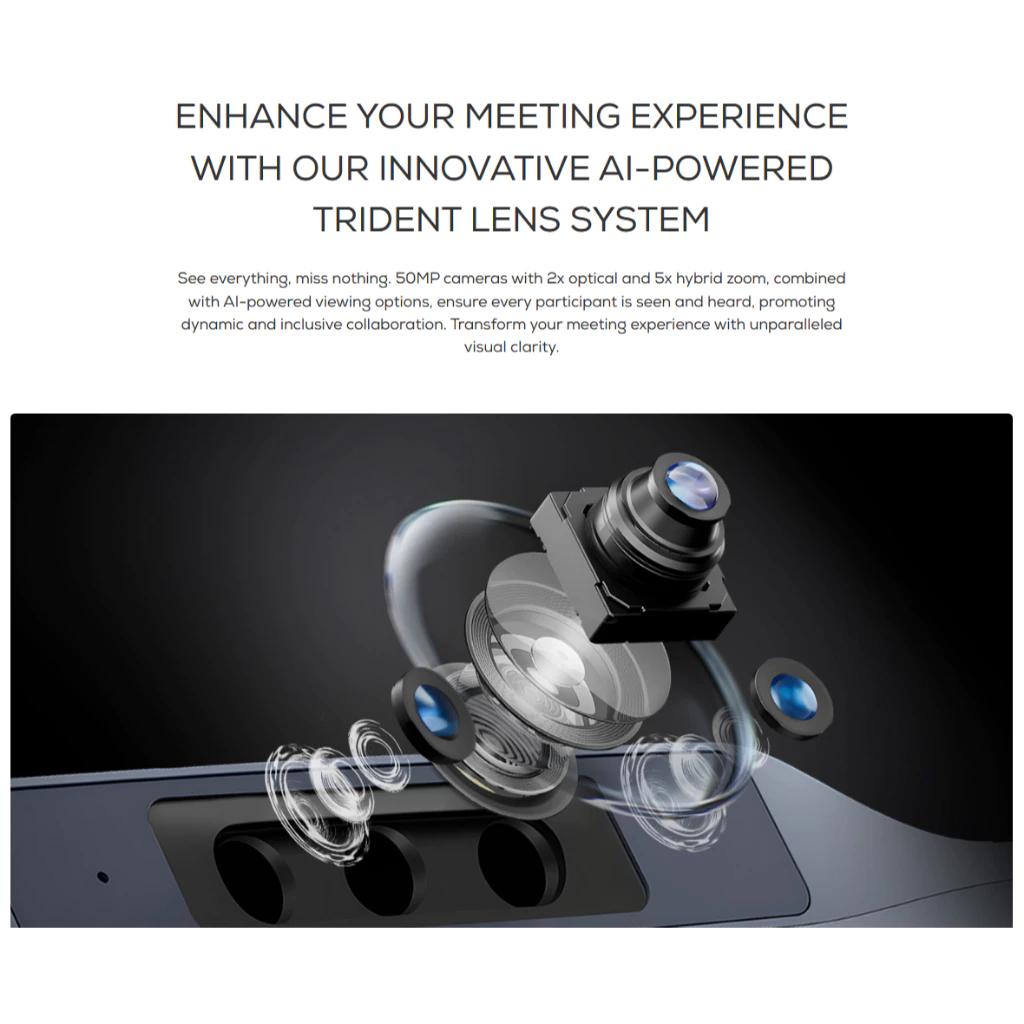

Innovative Ai-powered Trident Lens System

See everything, miss nothing. 50MP cameras with 2x optical and 5x hybrid zoom, combined with AI-powered viewing options, ensure every participant is seen and heard, promoting dynamic and inclusive collaboration. Transform your meeting experience with unparalleled visual clarity.


90% NTSC Color Gamut

Color gamut is the range of color accuracy in all scenario. 90% NTSC presents high-end photographic, film, and video quality.

Non-Glare Screen

Non-Glare Screen technology reduces reflections and improves visibility in bright environments.


Flexible Sizes

55/65/75/86-inch 16:9 resolution, offering great size and aspect ratio flexibility.

Content Sharing Capability

BYOM

With BYOM (Bring-Your-Own-Meeting), you can host meetings directly from your own device while leveraging MAXHUB XBoard V7

Content Sharing

Flexible content sharing with both wired and wireless options.

Sonic Share

Instant screen sharing with ultrasonic technology. No Wi-Fi needed  Ultrasonic screen sharing enables instant, point-to-point connections, with no wire complications

P2P Connection

P2P screen mirroring works even without a network, it is super fast and clear.

---

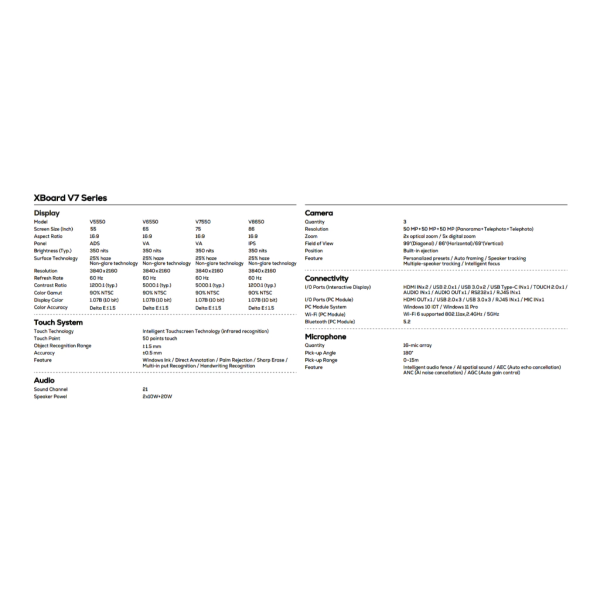

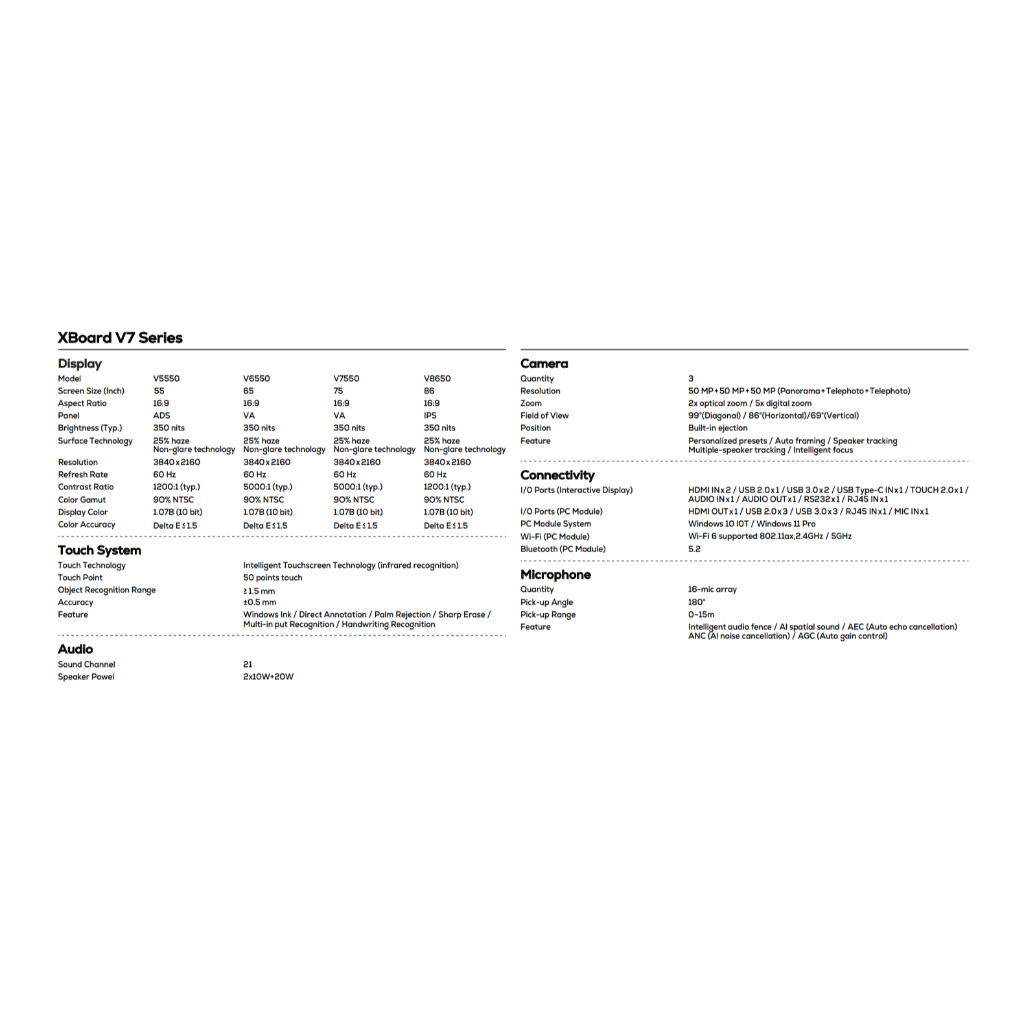

Specifications

V6550

Display

• Screen Size: 65"
• Resolution: 4K (3840 × 2160)
• Aspect Ratio: 16:9
• Panel Type: VA
• Brightness: 350 nits
• Refresh Rate: 60 Hz
• Surface: 25% haze, non-glare
• Color Gamut: 90% NTSC
• Color Depth: 1.07B (10-bit)
• Color Accuracy: ΔE ≤ 1.5
• Contrast Ratio: 5000:1

Touch System

• Infrared touch technology
• 50-point multi-touch
• Precision: ±0.5 mm
• Object recognition: ≥1.5 mm
• Features: Windows Ink, annotation, palm rejection, handwriting recognition, multi-input support

Audio

• 2.1 channel system
• Output: 2 × 10W + 20W

Camera System

• Triple 50MP cameras (Panorama + Telephoto + Telephoto)
• Zoom: 2× optical / 5× digital
• Field of view: 99° / 86° / 69°
• Smart features: auto framing, speaker tracking, multi-speaker tracking, intelligent focus

Microphone

• 16-mic array
• Pickup angle: 180°
• Range: 0–15 m
• AI features: noise cancellation, echo cancellation (AEC), ANC, AGC, audio zoning

Connectivity

• HDMI in ×2
• USB 2.0 ×1
• USB 3.0 ×2
• USB-C ×1
• Touch port ×1
• Audio in/out ×1 each
• RS232 ×1
• RJ45 ×1
• WiFi 6 + Bluetooth 5.2 support (via PC module)
• Windows 10 IoT / Windows 11 Pro support
