PANASONIC 1HP 1.5HP 2HP 2.5HP Non Inverter Air Conditioner CS-PN9 / 12WKH CS-PN18 / 24 / 30XKH | PN-WKH PNXKH

---

• Powerful Mode lets you enjoy instant powerful cooling

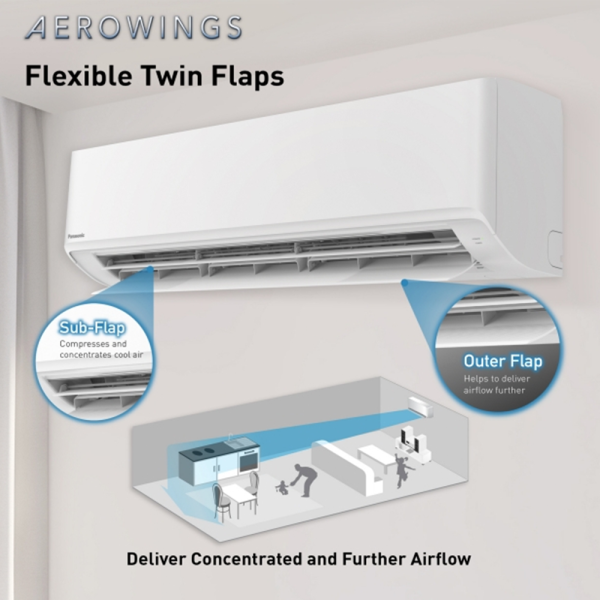

• AEROWINGS delivers faster and further airflow across the room

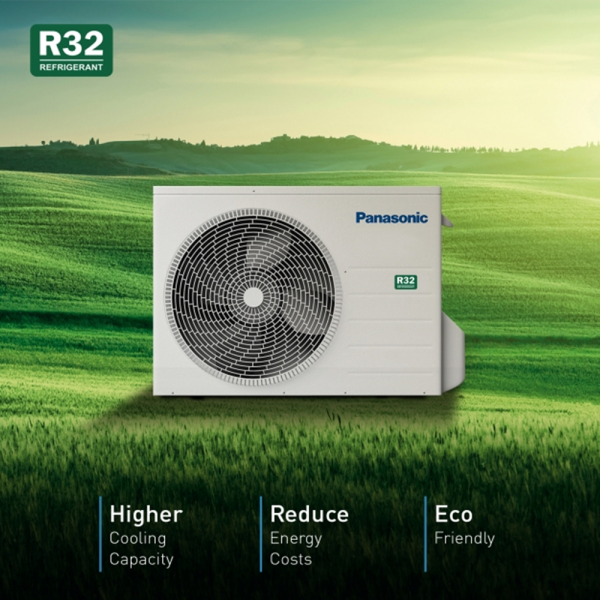

• Eco-friendly R32 refrigerant provides greater energy and cost-effectiveness at low environmental impact

---

---

Specifications

Comfort Features

• Sleep Mode
• Powerful Mode
• Soft Dry Operation Mode
• Quiet Mode
• Airflow Direction Control (Up & Down)
• Manual Horizontal Airflow Direction Control

Cleaner Air Features

• Odour Removing Function
• Removable Washable Panel

Convenience Features

• 24-Hour Dual ON & OFF Real Setting Timer

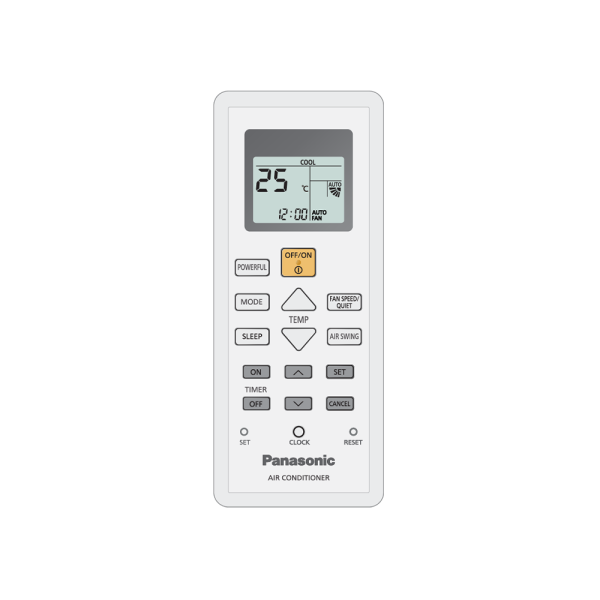

• LCD Wireless Remote Control
• Wired Remote Control (Optional)

Reliability Features

• Random Auto Restart (32 Restart Patterns)
• Blue Fin Condenser
• Long Piping (max.): 30 m
• Top Panel Maintenance Access

---

CS/CU-PN9WKH (1.0HP)

• Cooling Capacity (Btu): 9,500
• CSPF (W): 3.48
• Current: 3.7A
• Power Input: 820W
• Noise Level [dB(A)]
  • Indoor: 38/26
  • Outdoor: 48
• Dimensions (D x W x H)(mm)
  • Indoor: 209 x 779 x 290
  • Outdoor:  230 x 650 x 511
• Net Weight (kg)
  • Indoor: 8
  • Outdoor: 21

---

CS/CU-PN12WKH (1.5HP)

• Cooling Capacity (Btu): 12,000
• CSPF (W): 3.43
• Current: 4.8A
  • Power Input: 1,070W
• Noise Level [dB(A)]
  • Indoor: 41/29
  • Outdoor: 51
• Dimensions (D x W x H)(mm)
  • Indoor: 209 x 779 x 290
  • Outdoor:  289 x 780 x 542
• Net Weight (kg)
  • Indoor: 8
  • Outdoor: 26

---

CS/CU-PN18XKH (2.0HP)

• Cooling Capacity (Btu): 18,200
• CSPF (W): 3.49
• Current: 7.1A
  • Power Input: 1,620W
• Noise Level [dB(A)]
  • Indoor: 43/39
  • Outdoor: 53
• Dimensions (D x W x H)(mm)
  • Indoor: 244 x 1,040 x 295
  • Outdoor:  299 x 824 x 619
• Net Weight (kg)
  • Indoor: 12
  • Outdoor: 35



---

CS/CU-PN18XKH (2.0HP)

• Cooling Capacity (Btu): 18,200
• CSPF (W): 3.49
• Current: 7.1A
  • Power Input: 1,620W
• Noise Level [dB(A)]
  • Indoor: 43/39
  • Outdoor: 53
• Dimensions (D x W x H)(mm)
  • Indoor: 244 x 1,040 x 295
  • Outdoor:  299 x 824 x 619
• Net Weight (kg)
  • Indoor: 12
  • Outdoor: 35



---

CS/CU-PN24XKH (2.5HP)

• Cooling Capacity (Btu): 23,400
• CSPF (W): 3.32
• Current: 9.7A
  • Power Input: 2,190W
• Noise Level [dB(A)]
  • Indoor: 47/42
  • Outdoor: 55
• Dimensions (D x W x H)(mm)
  • Indoor: 244 x 1,040 x 295
  • Outdoor:  299 x 824 x 619
• Net Weight (kg)
  • Indoor: 12
  • Outdoor: 53



---

CS/CU-PN30XKH (3.0HP)

• Cooling Capacity (Btu): 28,600
• CSPF (W): –
• Current: 13.6A
  • Power Input: 2,900W
• Noise Level [dB(A)]
  • Indoor: 50/46
  • Outdoor: 56
• Dimensions (D x W x H)(mm)
  • Indoor: 244 x 1,102 x 302
  • Outdoor: 320 x 875 x 695
• Net Weight (kg)
• • Indoor: 13
  • Outdoor: 55
