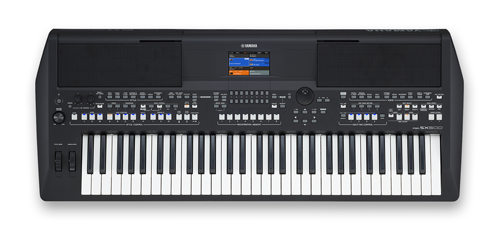

YAMAHA S Series 61 Keys Portable Music Keyboard PSR-SX600

---

PSR-SX600 is the standard model in the PSR-SX series, offering a range of content and functionality that makes it perfect for performing at home or on stage. With intuitive control and superb sound quality, the PSR-SX600 delivers the expressive control that professionals demand.

---

Specifications

PSR-SX600

Color/Finish:

• Body Color: Black



Size/Weight:

• Dimensions: Width: 1004 mm, Height: 134 mm, Depth: 410 mm
• Weight: 8.1 kg



Packing Box:

• Dimensions (W x H x D) mm: 1110 x 231 x 528



Control Interface:

• Keyboard: Number of Keys: 61, Type: Organ, Initial Touch
• Touch Response: Normal, Soft 1, Soft 2, Hard 1, Hard 2
• Other Controllers: Joystick: No, Control Knobs: 2 (assignable), Pitch Bend: Yes, Modulation: Yes
• Display Type: TFT Color WQVGA LCD, Size: 480 x 272 dots (4.3 inch), Touch Screen: No, Color: Color
• Language: English, German, French, Spanish, Italian, Japanese
• Panel Language: English



Voices:

• Tone Generation: Tone Generating Technology: AWM Stereo Sampling
• Polyphony: Number of Polyphony (Max.): 128
• Preset Voices: 850 Voices + 43 Drum/SFX Kits + 480 XG Voices
• Featured Voices: 73 S.Articulation!, 27 MegaVoice, 27 Sweet!, 64 Cool!, 71 Live!
• Compatibility: XG, GS, GM, GM2



Expandability:

• Expansion Voice: Yes (approx. 100 MB max.)
• Editing: Voice Set Part: Right 1, Right 2, Left



Effects:

• Reverb: 52 Preset + 30 User
• Chorus: 106 Preset + 30 User
• DSP: 295 Preset + 30 User
• Insertion Effect: Not specified
• Master Compressor: 5 Preset + 30 User
• Master EQ: 5 Preset + 30 User
• Part EQ: 27 Parts
• Others: Mic effects (Noise Gate x 1, Compressor x 1, 3 Band EQ), Arpeggio: Yes



Vocal Harmony:

• Number of Presets: Not specified
• Number of User Settings: Not specified



Accompaniment Styles:

• Number of Preset Styles: 415
• Featured Styles: 372 Pro Styles, 32 Session Styles, 10 DJ Styles, 1 Free Play
• Fingering: Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard, Smart Chord
• Style Control: INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3



Other Features:

• One Touch Setting (OTS): 4 for each Style
• Chord Looper: Not specified
• Style Section Reset: Yes
• Unison & Accent: Yes



Expandability:

• Expansion Style: Yes (Internal Memory)
• Expansion Audio Style: Not specified
• Compatibility: Style File Format (SFF), Style File Format GE (SFF GE)



Songs:

• Number of Preset Songs: 3 Sample Songs
• Recording: Not specified
• Number of Tracks: 16
• Data Capacity: Approx. 1 MB/Song
• Recording Function: Quick Recording, Multi Track Recording
• Compatible Data Format: Playback: SMF (Format 0 & 1), XF, Recording: SMF (Format 0)



Multi Pads:

• Number of Multi Pad Banks: 188 Banks x 4 Pads



Audio:

• Audio Link: Yes



Functions:

• Registration: Number of Buttons: 8, Control: Registration Sequence, Freeze
• Playlist: Number of Records: 500 (max.) Records per Playlist file
• Lesson/Guide: Follow Lights, Any Key, Karao-Key, Your Tempo
• Search: Registration Bank
• Demo/Help: Demonstration: Yes



Overall Controls:

• Metronome: Yes
• Tempo Range: 5 – 500, Tap Tempo
• Transpose: -12 – 0 – +12
• Tuning: 414.8 – 440.0 – 466.8 Hz
• Octave Button: Yes
• Scale Type: 9 types
• Sub Scale Setting: Not specified



Miscellaneous:

• Direct Access: Yes
• Text Display Function: Yes
• Wallpaper Customization: Not specified
• Display Out: Not specified



Voices:

• Harmony/Echo: Yes (with Arpeggio)
• Panel Sustain: Yes
• Mono/Poly: Yes
• Voice Information: Yes



Styles:

• Style Creator: Yes
• OTS Information: Yes



Songs:

• Score Display Function: Yes
• Lyrics Display Function: Yes
• Song Creator: Yes



Multi Pads:

• Multi Pad Creator: Yes





Audio Recorder/Player:

• Recording Time (max.): 80 minutes/Song
• Recording: *only on USB .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo)
• Playback: *only on USB .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo)
• Lyrics Display Function: Not specified
• Time Stretch: Yes
• Pitch Shift: Yes
• Vocal Cancel: Yes



Storage and Connectivity:

• Storage: Internal Memory: Yes (approx. 20 MB max.), External Drives: USB flash drive
• Connectivity: Headphones: Yes, FOOT PEDAL: 1 (Sustain), 2 (Unison), Function Assignable, Microphone: Microphone x 1, MIDI: Not specified, AUX IN: Stereo mini jack, LINE OUT: MAIN OUTPUT (L/L+R, R), USB TO DEVICE: Yes, USB TO HOST: Yes
