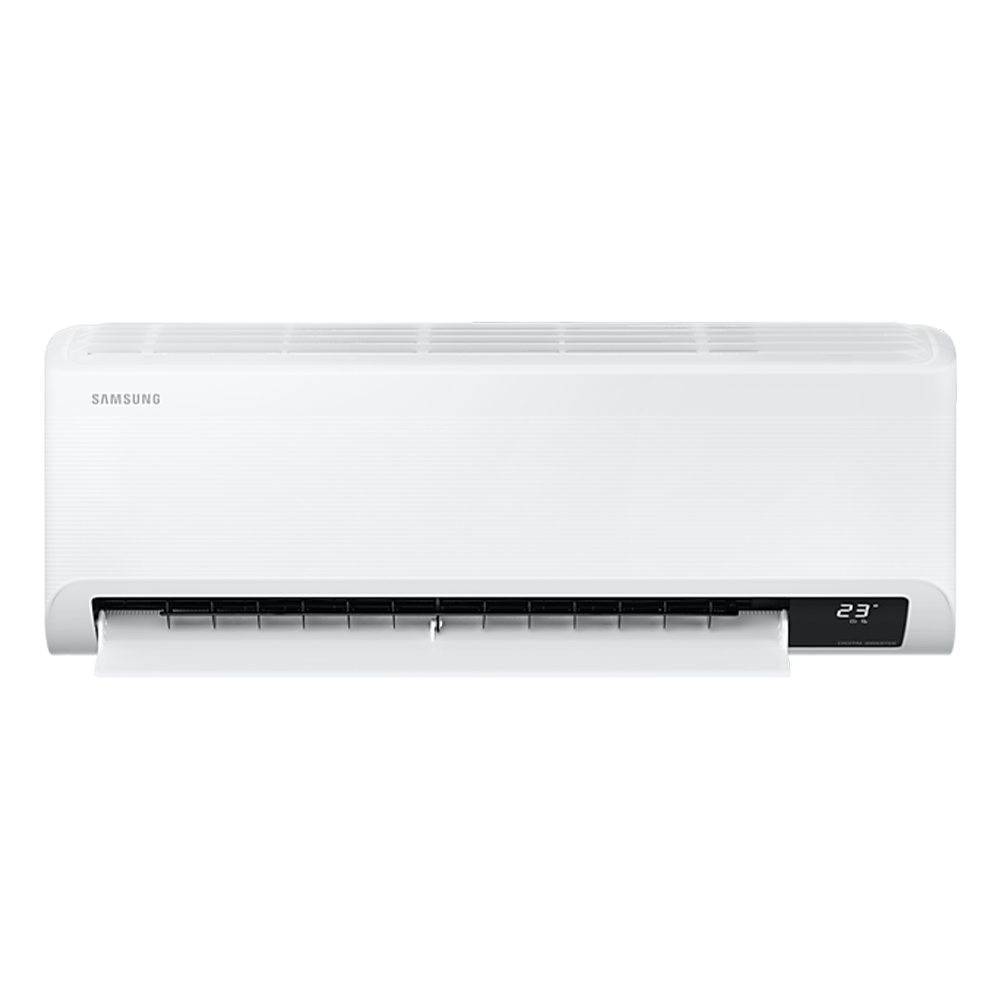

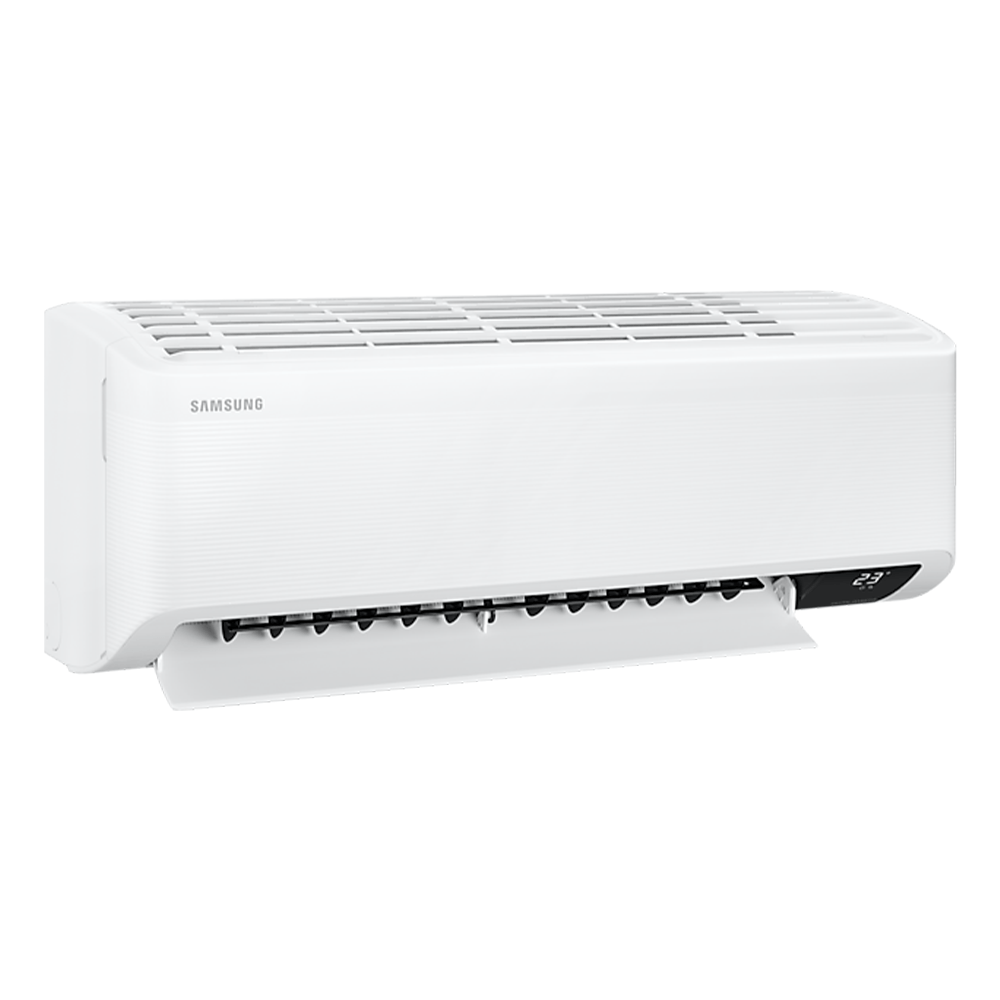

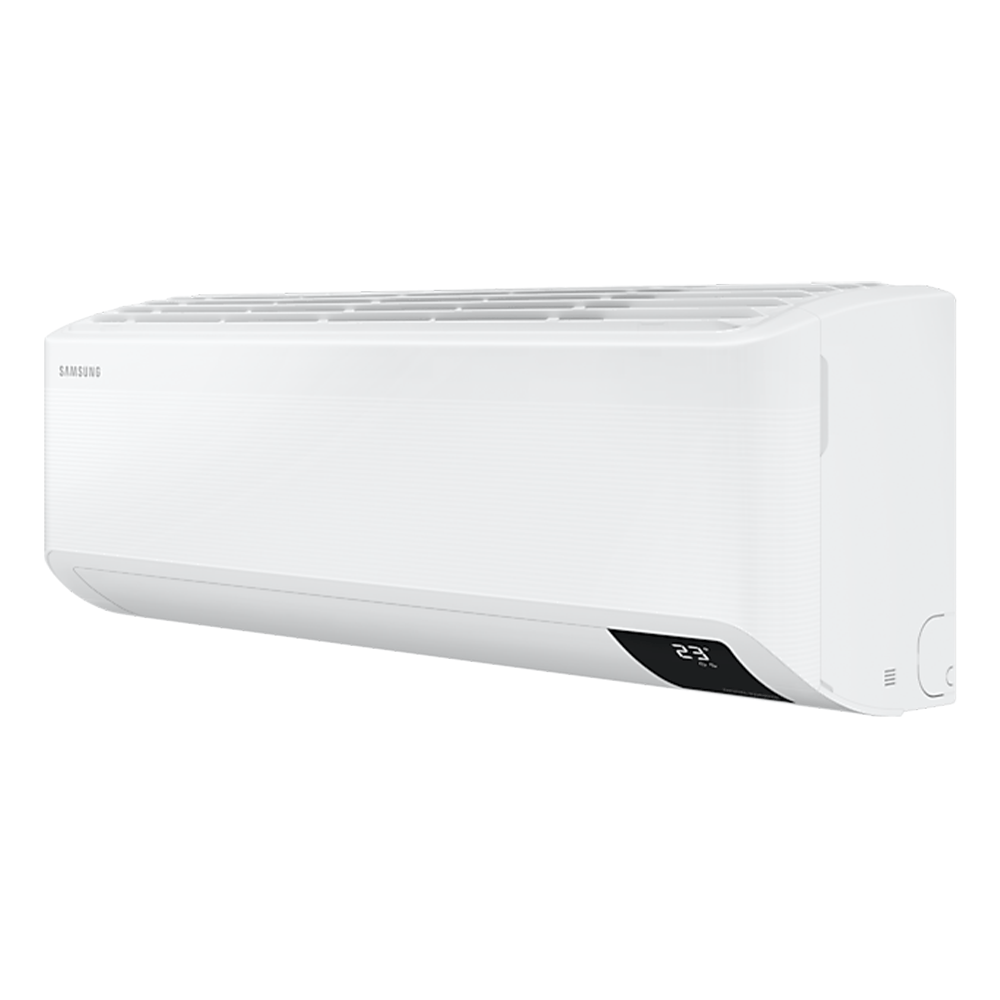

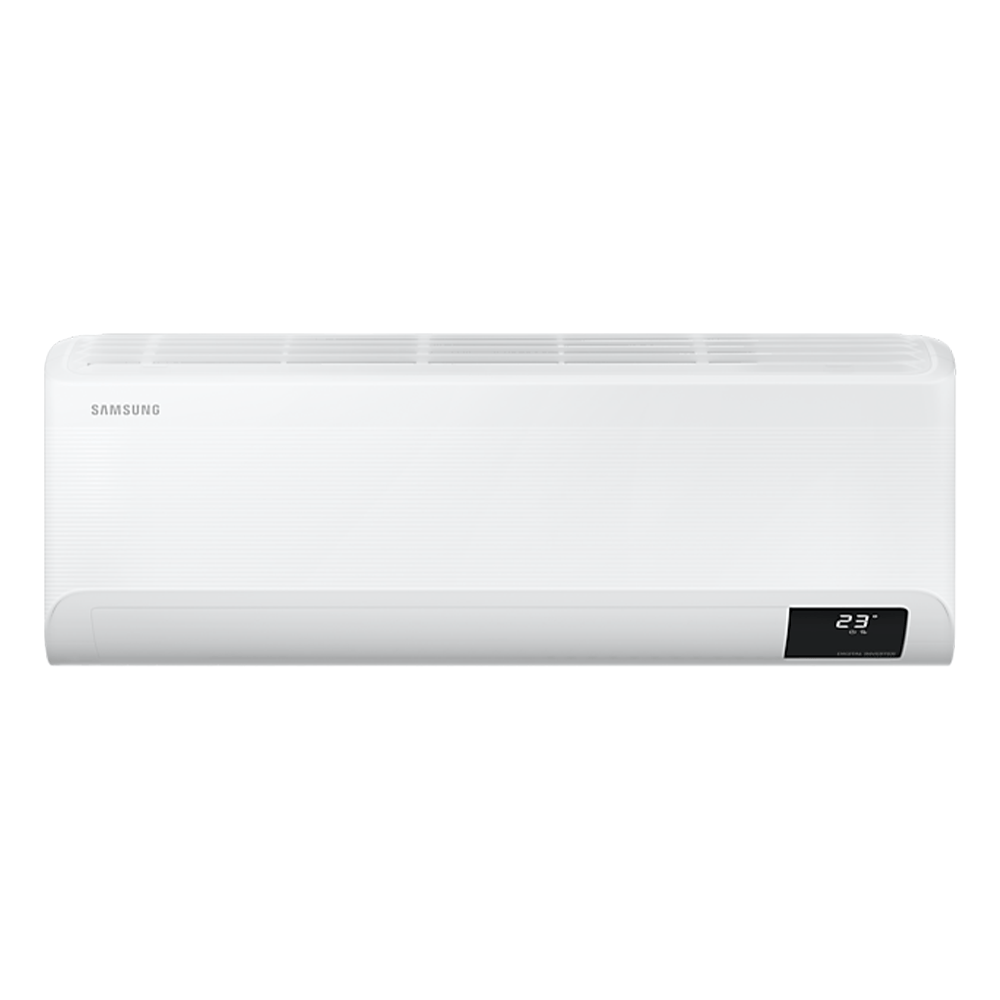

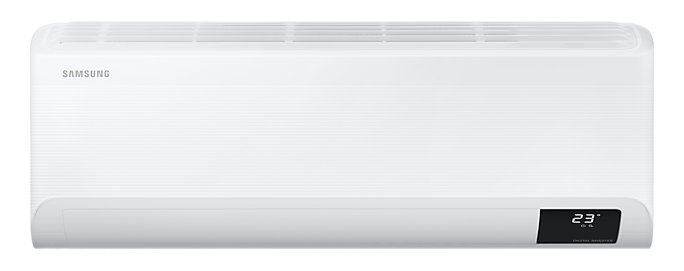

SAMSUNG 1.5HP Premium Air Conditioner F-AR1-3TYHYDWK (S-Inverter)

• Digital Inverter Boost: Reduce noise and energy usage
• Auto Clean Function: Automatically removes dust and moisture in the heat exchanger which prevents the growth of bacteria
• Good Sleep Mode: Creates the desirable climate for a good night’s sleep



Reduces noise and energy use by 73%*

Digital Inverter Boost

Save money every day with highly energy-efficient Digital Inverter Boost technology. It maintains the desired temperature with less fluctuation. It also has neodymium magnets and a Twin Tube Muffler, so it works efficiently, quietly and lasts much longer. And it reduces energy usage by up to 73%*.

* Tested on the AR09TXCAAWKNEU model compared with the Samsung conventional model AQ09TSLXEA.

Designed to cool faster, wider & farther

Fast Cooling

Cool rooms quickly from corner to corner, so you’re always comfortable. Digital Inverter Boost technology cools the air 43% faster*. Its advanced design also has a 15% larger fan, 18% wider inlet and a 31% wider blade. So cool air is dispersed farther and wider**, reaching up to 15 meters.

* Tested on the AR12TXCAAWKEU model compared with the Samsung conventional model AQ12EASER.** Tested on the AR24TXFCAWKNEU model.

Simply cleans itself – automatically

Auto Clean

When the air conditioner is turned off the Auto Clean function automatically runs a fan to remove dust and moisture in the heat exchanger. So it stays clean and dry, which prevents the growth of bacteria and mildew.



Easy to clean anti-bacterial filter

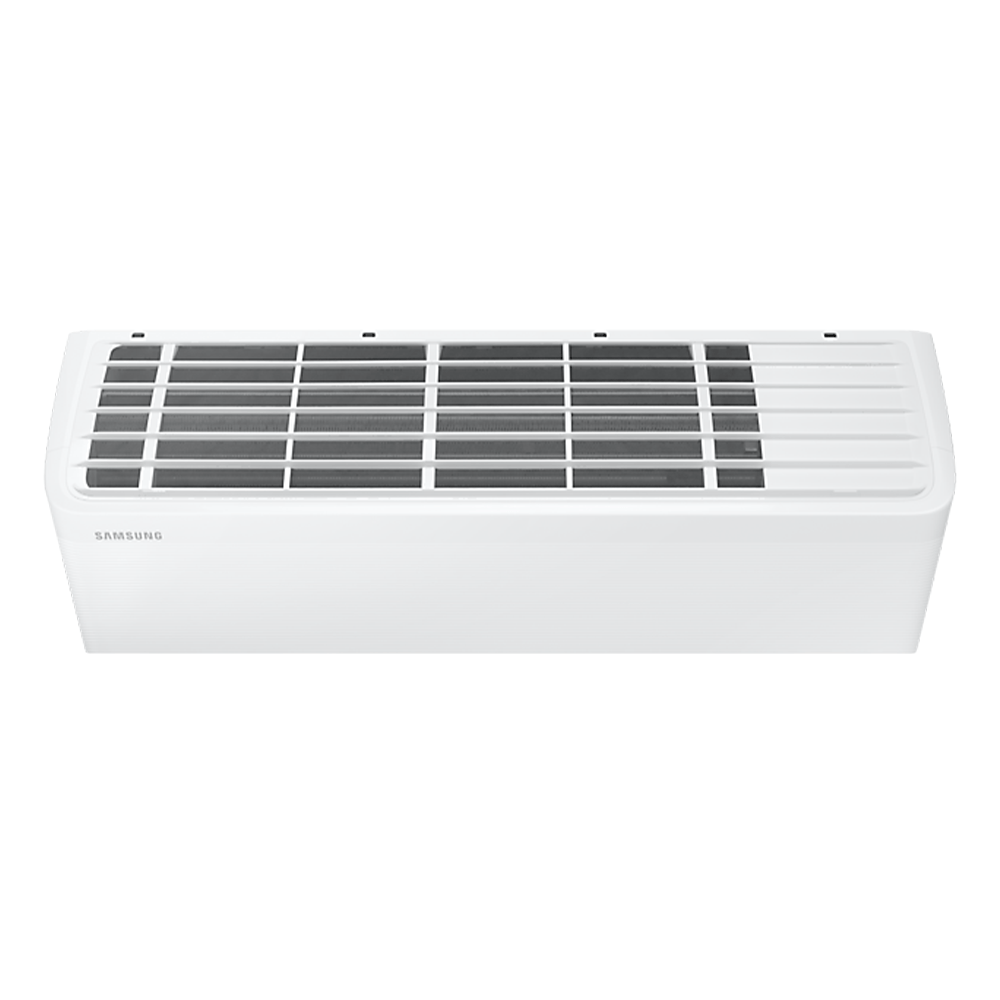

Easy Filter Plus

Keep your air conditioner working efficiently with less effort. The Easy Filter Plus is located outside, on the top, so it can easily be taken out and cleaned. Its dense mesh keeps the Heat Exchanger clean and an anti-bacterial coating helps protect you against dangerous airborne contaminants*.

* Tested in Korea test lab. Data has been measured under specific testing conditions and may vary depending on environmental factors and individual use.



Better Heat Exchanger performance

DuraFin™

Enhance the performance and efficiency of the Heat Exchanger using the DuraFin. It is made of a much denser material and is thicker in design. Its improved coating also has more corrosion resistance. So it passes the accelerated Sea Water Acetic Acid Test (SWAAT) for corrosion over 100 days*.

* Based on the AR13TYHYBWKNST model compared with the Samsung conventional model AR18JRFNFWK.



Stable and durable in harsh conditions

Triple Protector Plus

Enjoy a long-lasting performance in challenging environments. Triple Protector Plus technology prevents damage from power surges and fluctuating electrical currents, without a separate voltage stabilizer*. Its anti-corrosion coating also protects the condenser and cabinet in harsh conditions.

* Tested on the AR12TXEAAWKNEU model compared with the Samsung conventional model AS18FCMID.



Environmentally friendly refrigerant

R32 Refrigerant

Protect the planet by reducing the impact of climate change. The air conditioner uses the next generation R32 refrigerant, which helps conserve the ozone layer and has a low impact on global warming compared to conventional R22 or R410A refrigerants. So it’s much more environmentally friendly*.

* Tested on R32 refrigerant compared with Samsung conventional refrigerants R410A and R22.

Saves energy & money, cools effectively

ECO Mode

Save energy, but still stay cool. ECO mode uses less compressor capacity compared to Normal mode, which reduces energy consumption*. It lets you cool more efficiently when it’s not too hot outside or just save energy and money at any time, so you don’t have to worry about the electricity bills.

* Tested on the AR07T9170HA3 compared with Samsung conventional models, measuring the accumulated power consumption of Fast Cooling mode vs. ECO mode.



Sleep much better throughout the night

Good Sleep

Good Sleep mode creates the desirable climate for a good night’s sleep. With its temperature control, it keeps you comfortable, so you fall asleep fast, sleep deeply, and wake up refreshed.





Specifications

Capacity

• Capacity (Cooling, Btu/hr): 9000 Btu/hr
• Capacity (Cooling, Min – Max, Btu/hr): 3,000 ~ 11,500 Btu/hr
• Capacity (Cooling, kW): 2.64 kW
• Capacity (Cooling, Min – Max, kW): 0.88 ~ 3.37 kW

Energy Efficiency

• EER (Cooling, W/W): 3.77 W/W
• EER (Cooling, Btu/hW): 12.86 Btu/hW
• CSPF: 5.50

Noise Level

• Noise Level (Indoor, High/Low, dBA): 39 / 20 dBA
• Noise Level (Outdoor, High/Low, dBA): 48 dBA

Electrical Data

• Power Source(Φ/V/Hz): 1 / 220-240 / 50
• Power Consumption(Cooling, W): 700 W
• Operating Current(Cooling, A): 3.8 A

Physical Specification

• Gross Dimension (Indoor, WxHxD): 880x290x375 mm
• Gross Dimension (Outdoor, WxHxD): 778x550x331 mm
• Net Dimension (Indoor, WxHxD): 820x299x215 mm
• Net Dimension (Outdoor, WxHxD): 660x475x242 mm
• Gross Weight (Indoor, kg): 10.2 kg
• Gross Weight (Outdoor, kg): 21.3 kg
• Net Weight (Indoor, kg): 8.9 kg
• Net Weight (Outdoor, kg): 20.1 kg
• Loading Quantity (20/40/40Hft without Pipe): 120 / 248 / 280

Technical Information

• Piping Length (Max, m): 15 m
• Piping Height (Max, m): 8 m
• SVC Valve (Liquid (ODxL)): 6.35
• SVC Valve (Gas (ODxL)): 9.52
• Moisture Removal (l/hr): 1.5 l/hr
• Air Circulation (Cooling, ㎥/min): 11.9 ㎥/min
• Refrigerant (Type): R32
• Refrigerant (Charging, kg): 0.50 kg
• Refrigerant (Charging, tCO2e): 0.34 tCO2e
• Low Ambient (Cooling, ℃): 16~46 ℃
• Outdoor Unit (Compressor Type): BLDC
• Outdoor Unit (Anti-Corrosion Fin): Yes

Air Flow

• Air Direction Control (Up/Down): Auto
• Air Direction Control (Left/Right): Manual
• Air Flow Control Step (Cool/Fan): 5/4

Air Purification

• Easy Filter Plus (Anti-Bacteria): Yes
• Auto Clean (Self Cleaning): Yes

Convenience

• Filter Cleaning Indicatior: Yes
• Indoor Temp. Display: Yes
• Display On/Off: Yes
• Beep On/Off: Yes
• 24-Hour Timer: Yes
• Auto Restart: Yes

Operating Mode

• Auto Mode: Yes
• Fast Cool: Yes
• Good Sleep: Yes
• Eco Mode: Yes
• Dehumidification: Yes
• Fan Mode: Yes
• Quiet: Yes
