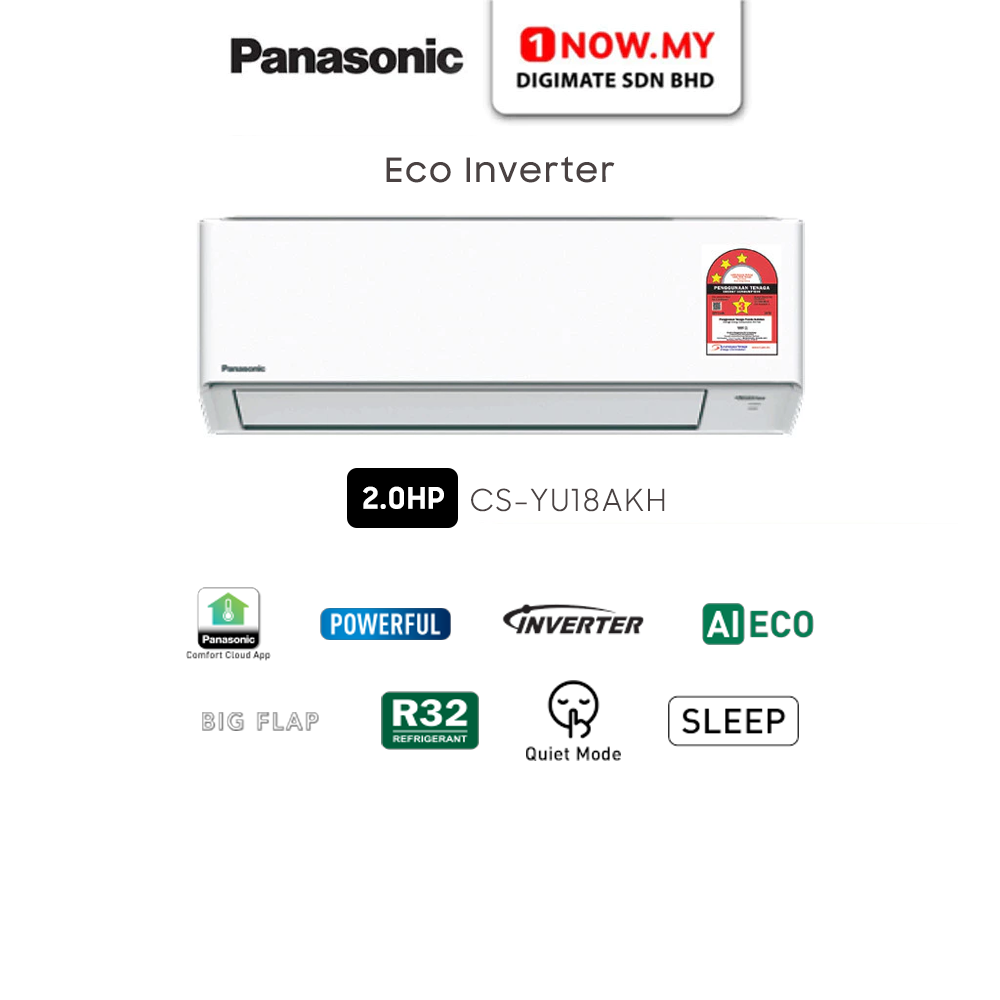

PANASONIC 2HP Eco Inverter Air Conditioner YU Series CS-YU18AKH | YU-AKH Energy Saving Cooling

---

---

Specifications

• Horsepower: 2HP
• Indoor Unit: CS-YU18AKH
• Outdoor Unit: CU-YU18AKH
• Cooling Capacity: 5.30 kw ; 18100 Btu/h
• EER (min-max): 10.90 Btu/hW ; 3.19 W/W
• Voltage(V): 230V
• Current(A): 7.3 A
• Power Input (min-max)(W): 1600 (320-1880) W
• Moisture Removal (L/h): 2.9 L/h
• Moisture Removal (Pt/h) : 6.1 Pt/h

Indoor Unit

• Air Circulation: 12.6 m3/min (390 ft3/min)
• Unit Noise Level (H/L/Q-Lo): 44/34/28 dB(A)
• Unit Dimensions (H x W x D)(mm): 290 x 765 x 214 mm
• Unit Weight: 9kg

Outdoor Unit

• Air Circulation: 39.3 m3/min (860 ft3/min)
• Unit Noise Level (H): 52 dB(A)
• Unit Dimensions (H x W x D)(mm): 619 x 824 x 299 mm
• Unit Weight: 27kg

Refrigerant Pipe Diameter

• Liquid Side:  6.35 mm (1/4 inch)
• Gas Side: 12.70 mm (1/2 inch)

Pipe Extension

• Chargeless Pipe Length: 10m
• Maximum Pipe Length: 30m
• Maximum Elevation Length: 20m
• Additional Refrigerant Gas*: 15 g/m

Power Supply

• Indoor
