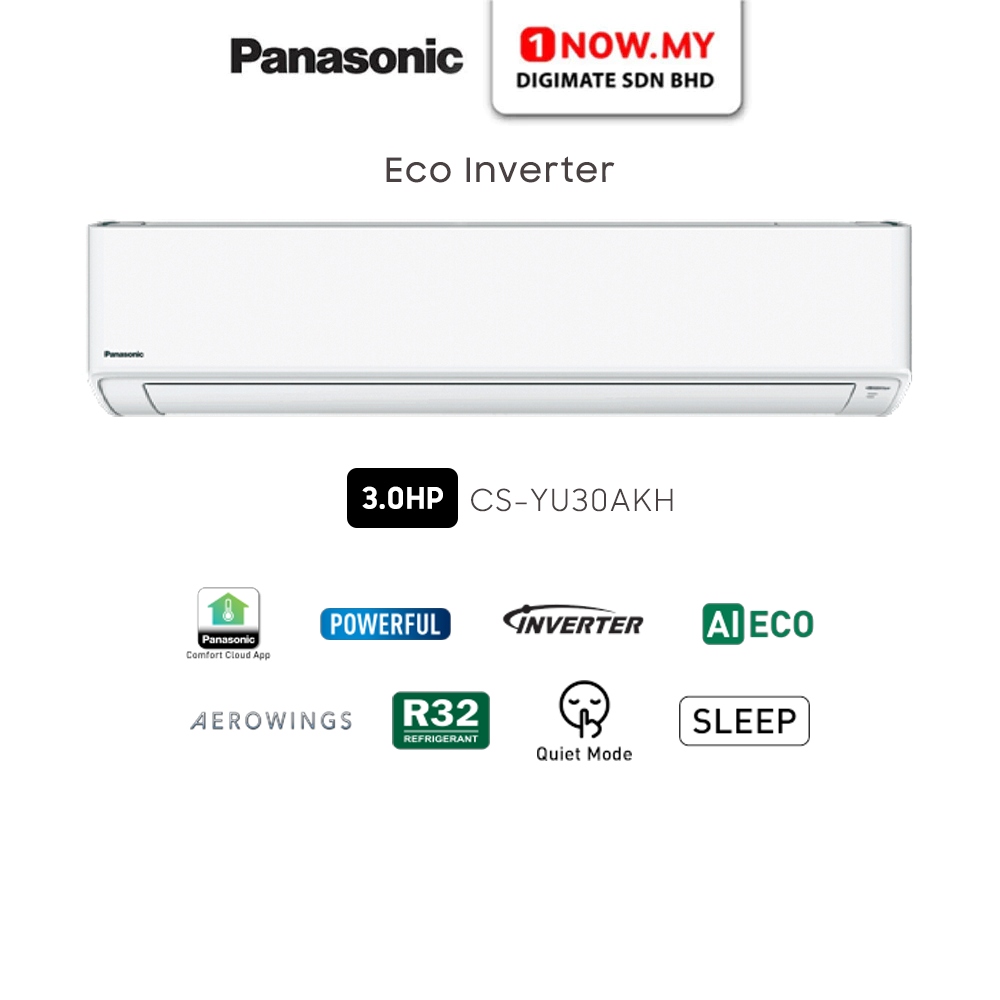

PANASONIC 3HP Eco Inverter Air Conditioner YU Series CS-YU30AKH | YU-AKH Energy Saving Cooling
Specifications
- Horsepower: 3HP
- Indoor Unit: CS-YU30AKH
- Outdoor Unit: CU-YU30AKH
- Cooling Capacity: 8.80 kw ; 30000 Btu/h
- EER (min-max): 10.34 Btu/hW ; 3.03 W/W
- Voltage(V): 230V
- Current(A): 12.7 A
- Power Input (min-max)(W): 2900(400-3200) W
- Moisture Removal (L/h): 5 L/h
- Moisture Removal (Pt/h) : 10.6 Pt/h
Indoor Unit
- Air Circulation: 25.5 m3/min (900 ft3/min)
- Unit Noise Level (H/L/Q-Lo): 51/41/38 dB(A)
- Unit Dimensions (H x W x D)(mm): 295 x 1060 x 249 mm
- Unit Weight: 12kg
Outdoor Unit
- Air Circulation: 34.9 m3/min (940 ft3/min)
- Unit Noise Level (H): 53 dB(A)
- Unit Dimensions (H x W x D)(mm): 695 x 875 x 320mm
- Unit Weight: 40kg
Refrigerant Pipe Diameter
- Liquid Side: 6.35 mm (1/4 inch)
- Gas Side: 15.88 mm (3/8 inch)
Pipe Extension
- Chargeless Pipe Length: 10m
- Maximum Pipe Length: 30m
- Maximum Elevation Length: 20m
- Additional Refrigerant Gas*: 25 g/m
Power Supply
- Outdoor
