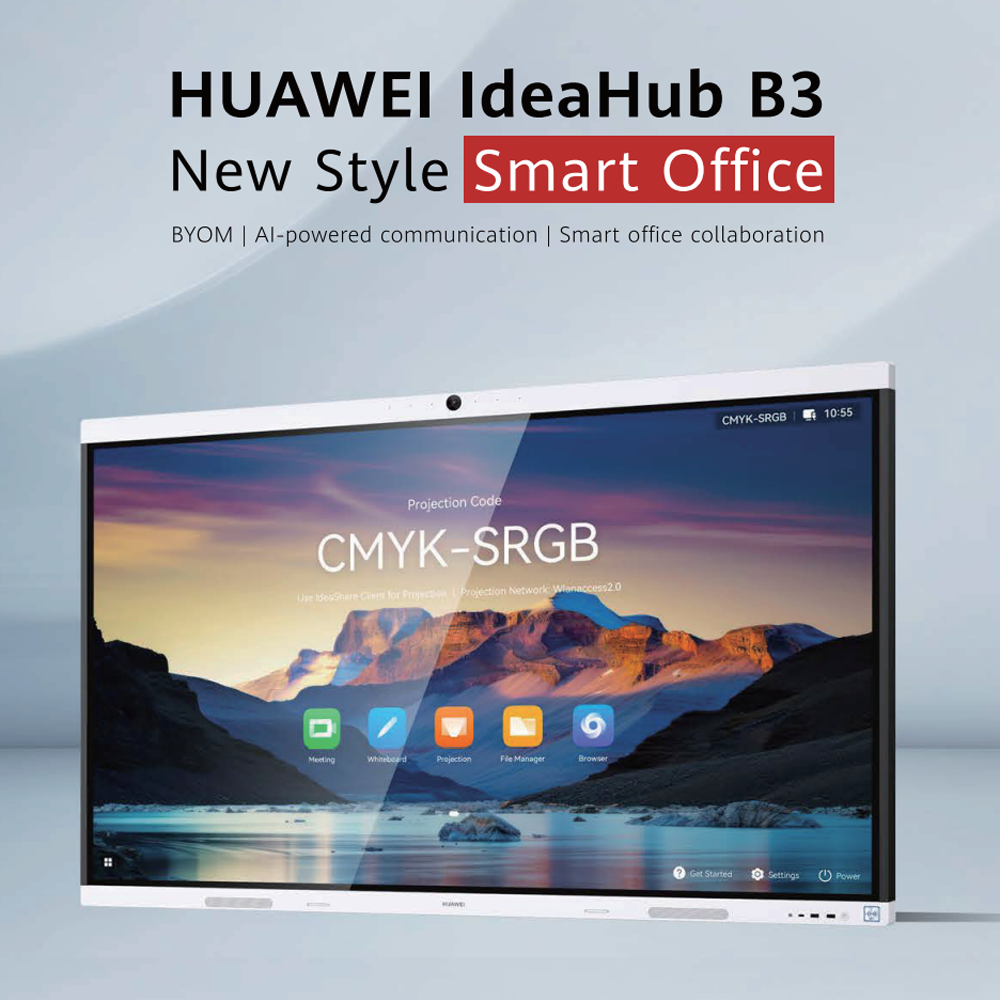

HUAWEI 65"/75"/86" IdeaHub B3 (Meeting Purpose) IHB3-65SA IHB3-75SA IHB3-86SA | Professional Touch Screen Business Display

---

---

Specifications

IdeaHub B3



---

Specifications

IdeaHub B3

• Models: 65" (IHB3-65SA), 75" (IHB3-75SA), 86" (IHB3-86SA)

• 65" – 916.1 mm × 1484.5 mm × 91.6 mm
• 75" – 1040.5 mm × 1705.7 mm × 91.8 mm
• 86" – 1180.6 mm × 1953.0 mm × 91.8 mm

• 65" – 1050 mm × 1650 mm × 220 mm
• 75" – 1170 mm × 1900 mm × 220 mm
• 86" – 1300 mm × 2090 mm × 250 mm

• 65" – 35.5 kg / 43.0 kg
• 75" – 47.8 kg / 57.8 kg
• 86" – 63.0 kg / 74.5 kg

• Device: 1
• Stylus Pen: 2
• Cable: 1 × Power cable
• OPS: Optional
• IdeaShare Key: Optional (Type-C/Type-A port)
• Rolling Stand: Optional (65", 75", and 86")
• Wall-Mounted Bracket: Optional (65", 75", and 86")

• Resolution: 4K
• Backlight Type: D-LED
• Screen Lamination: Zero-gap bonding
• Color Gamut: 85% NTSC

• Zoom: 2× digital zoom
• Max. Angle of View: Pan: 80° / Tilt: 50°
• Resolution: 4K
• TV Distortion: < 2%
• Intelligent Tracking: Supported

• Frequency Domain: 100 Hz – 20 kHz
• Quantity: 4
• Maximum Power: 30 W

• Sound Pickup Angle: 180°
• Quantity: 6
• Sound Pickup Distance: 10 m

• Wi-Fi 6: Supported
• Frequency: 2.4 GHz & 5 GHz
• NFC: Supported

• CPU: 8 cores
• RAM: 8 GB
• Flash: 64 GB
• Operating System: HarmonyOS and Windows (OPS required)
• Languages: Chinese, English, French, Japanese, Spanish, Russian, Portuguese, Italian

• Supported Meeting Apps: Huawei Cloud Meeting, SmartRooms
• Meeting Performance: 1080p @ 30 fps video
• BYOM: Supported

• Writing Latency: 16 ms
• Whiteboard Saving Mode: QR code scanning / Email / Local storage / USB flash drive
• Intelligent Writing Recognition: Supported
• Touch Sensing Distance: 1.5 mm

• 1 × Type-C
• 2 × USB 3.0

• 1 × USB 3.0
• 2 × HDMI IN
• 1 × HDMI OUT
• 1 × COM port
• 1 × 3.5 mm Line-out
• 1 × 3.5 mm Line-in
• 1 × RJ45 (10/100/1000 Mbit/s LAN)
