Your Reliable Hot Water Solution

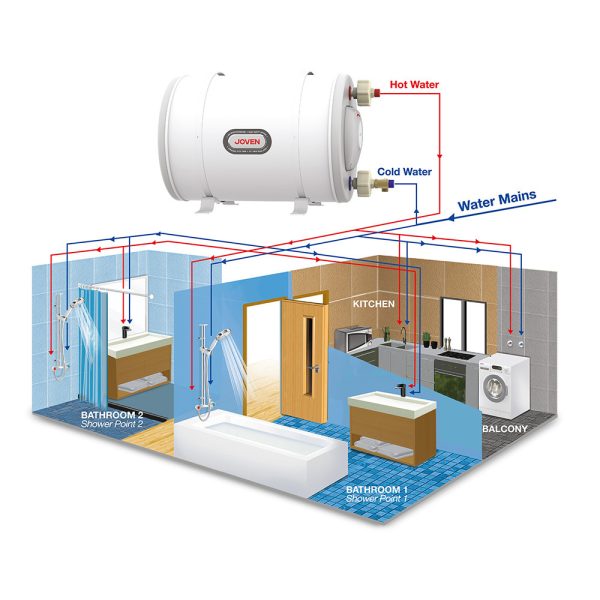

Centralised Multi-Point Storage Water Heater System With Enhanced Dry-Burn Protection

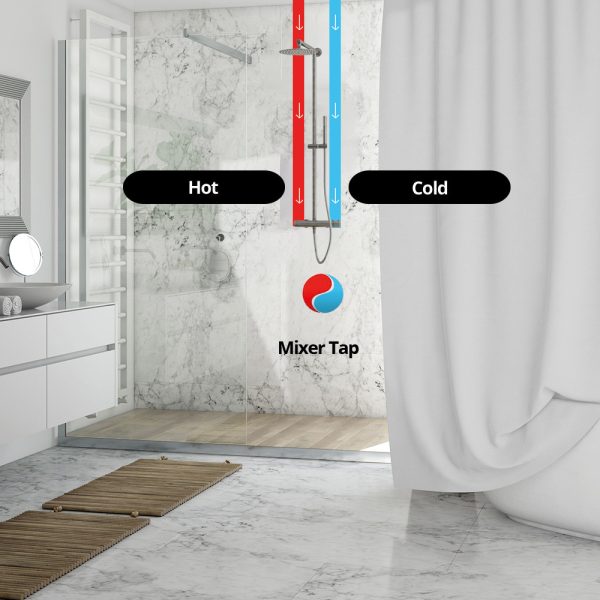

Introducing the latest version of Centralised Multi-Point Storage Water Heater with Enhanced Dry-Burn Protection that auto-trips to ensure longer durability. Enjoy a more luxurious hot shower with personalised accessories with just a connection to the mixer tap system.

Provides For 2 Standing Showers or 1 Rainshower 8”

JSH 50

The capacity 50L or 11.0 Imp. Gallons at 70°C can provide up to 183.5L of warm water at 38°C according to inlet temperature of 26°C. Suitable for 2 Standing Showers or 1 Rainshower 8”.

Longer-Lasting Hot Water

• Heat stays longer with the high-density CFC Free Polyurethane Insulation Foam 2.5 lb/ft³ or 40 kg/m³ which protects against heat loss when temperature has reached maximum cut-off point of 70°C.
• Heat stays up to 18 hours or longer before the temperature drops to 55°C for heating to reactivate.
• Saves energy with less heating frequency.

Durable

Built from high quality materials that withstand rust and rupture, thus ensuring durability and stellar performance.

• High Quality Incoloy Heating Element
• SUS304 Stainless Steel Tank
• Electro-Galvanized Steel With Epoxy Coated Enclosure
• High Quality Engineering Plastic
• Rust Free Materials

SAFETY FEATURES

ACCESSORIES

Easy Mounting With Universal Mounting Ring Bracket (Patent Pending)

An innovation by Joven, the Universal Mounting Ring Bracket enables easy mounting of storage water heater.

1. Mark the location of the ring bracket on a solid surface to secure the storage tank.
2. Drill hole according to marked surface and secure the mounting ring bracket with mounting bolts.
3. Slot in the tank into the ring bracket.

TECHNICAL SPECIFICATION

Specifications

Electrical Loading
3.0kw ; 15.0A ; 240 Va.c. ; 50 Hz

Tank Capacity
50 Litres (11.0 Imp. Gallons)

Time Taken To Heat Max 70°C
45 Mins ( 1st Heat Up From Cold Water )
22.5 Mins ( Subsequent Heat Up )

Recommended Water Pressure
1 – 4 Bar

Dimensions (W * H * L)
381 x 405 x 641 mm

Approx. Weight
Empty : 17 kg ; Full : 67 kg
