INNOVATIVE FEATURES

Your Reliable Hot Water Solution

Centralised Multi-Point Storage Water Heater System With Enhanced Dry-Burn Protection

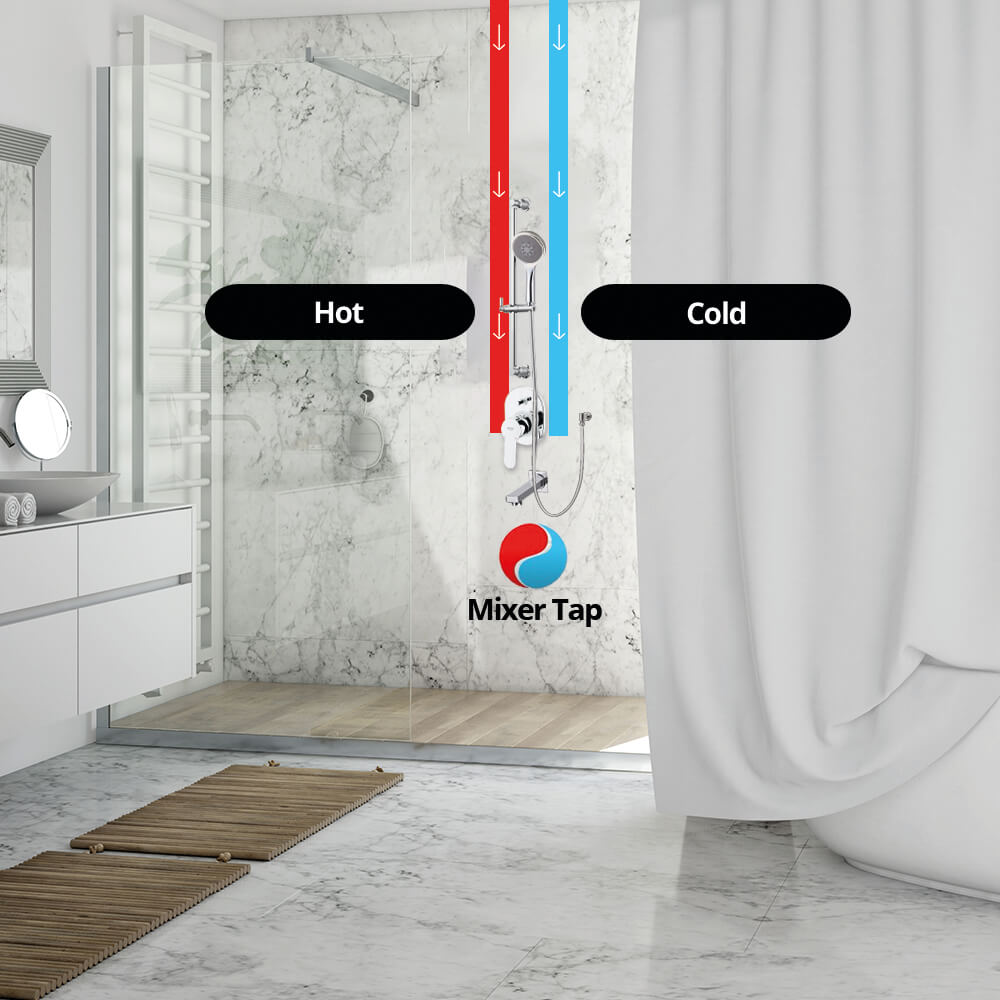

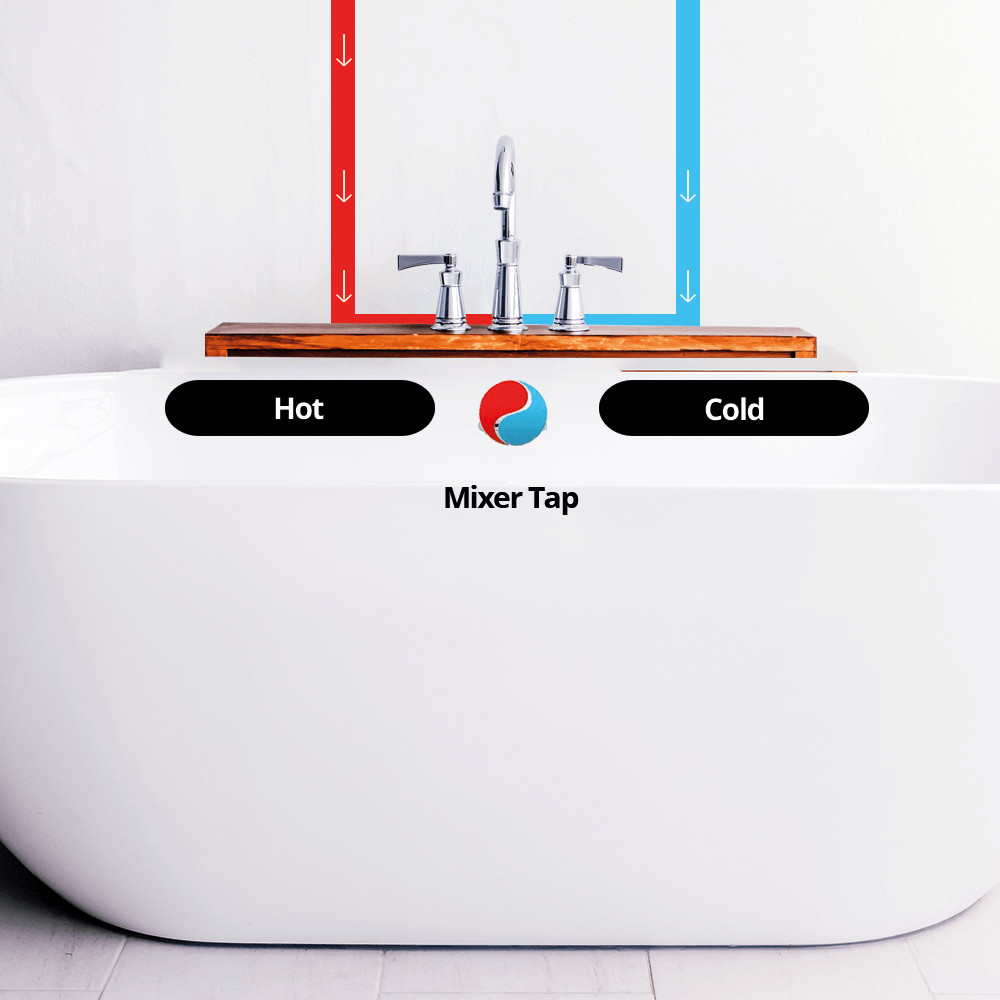

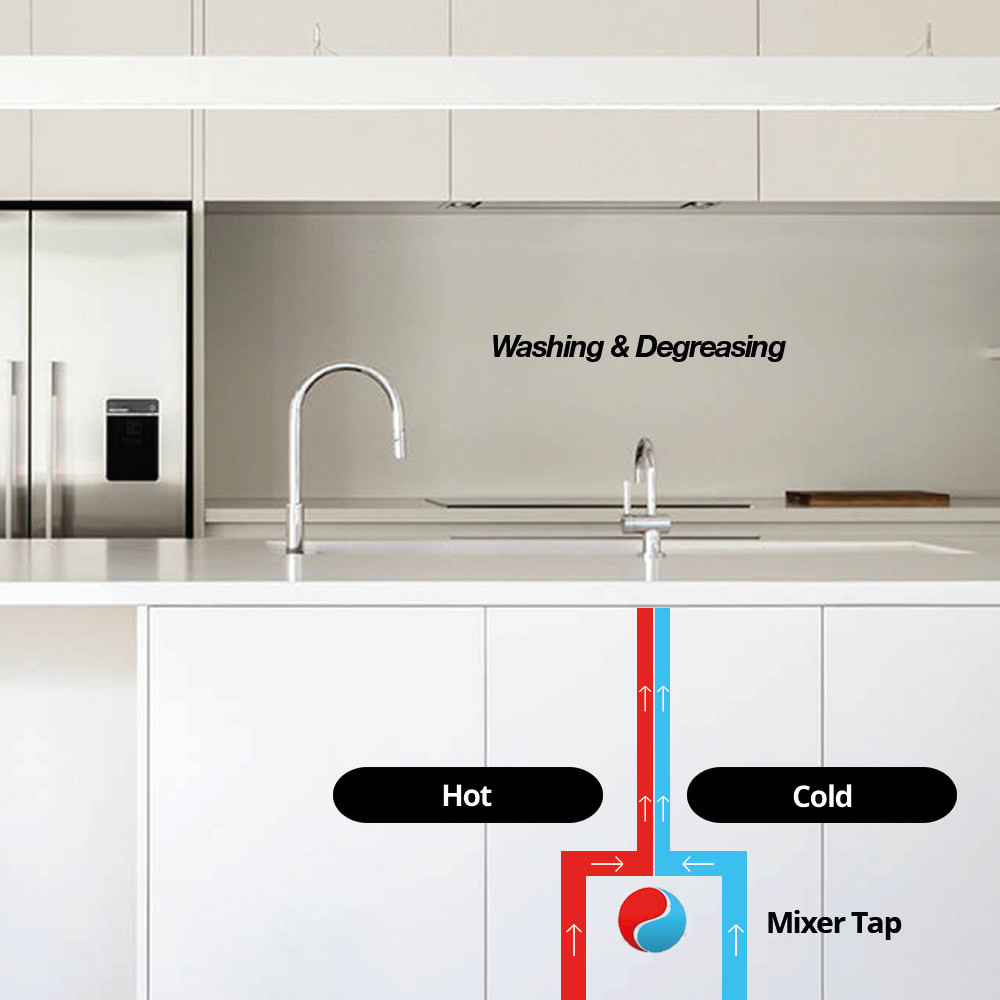

Introducing the latest version of Centralised Multi-Point Storage Water Heater with Enhanced Dry-Burn Protection and Heat Elevator Technology that saves energy and auto-trips to ensure longer durability. Enjoy a more luxurious hot shower with personalised accessories with just a connection to the mixer tap system.

Provides For a Sink or Standing Shower

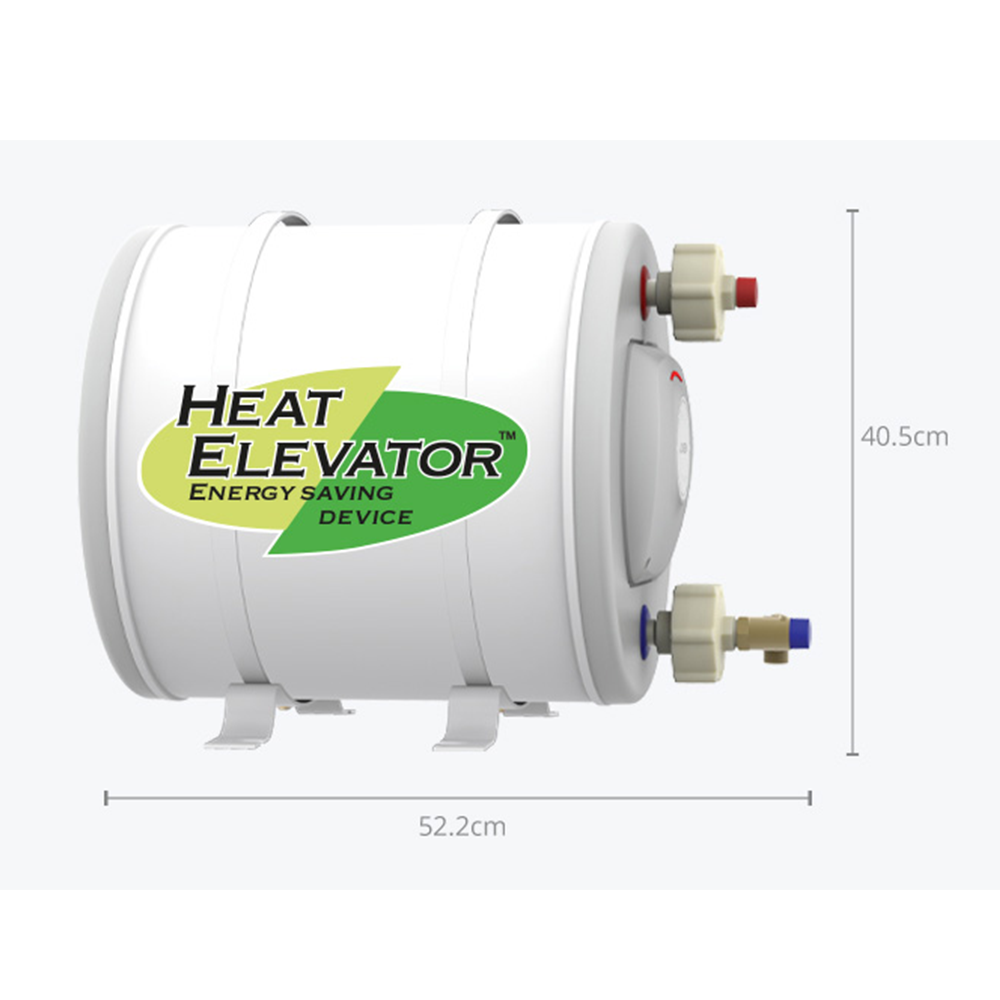

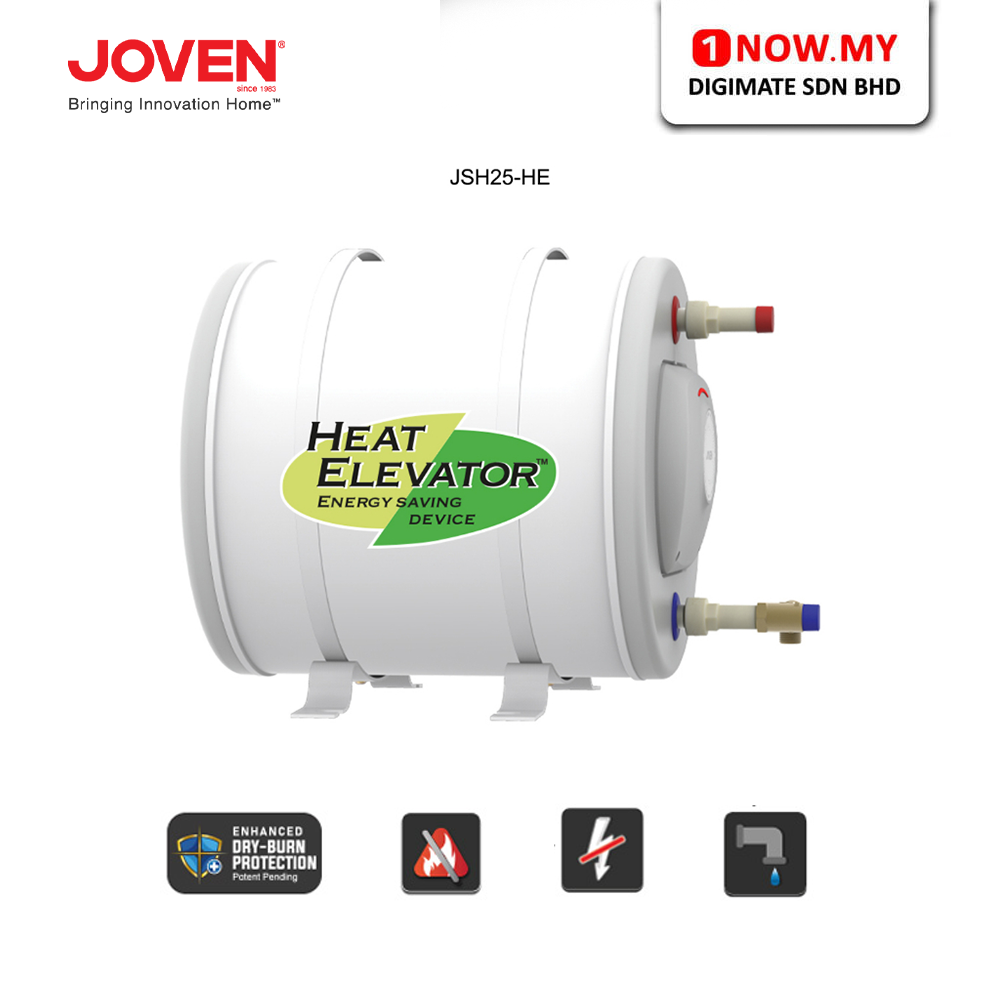

JSH 25-HE

The capacity 25L or 5.5 Imp. Gallons at 70°C can provide up to 91.5L of warm water at 38°C according to inlet temperature of 26°C. Suitable for sink or a standard shower with a normal sized showerhead.

Heat Elevator (HE) Technology

Heat Elevator (HE) Technology is the world’s first innovation that uses patent pending magnetic device that accelerate the convective heat transfer and improve heat stratification in water. This magnetic device is uniquely designed to weaken the inter-molecular bonding energy and accelerate the movement of water molecules to improve heating efficiency.

Energy Saving With Every Heating

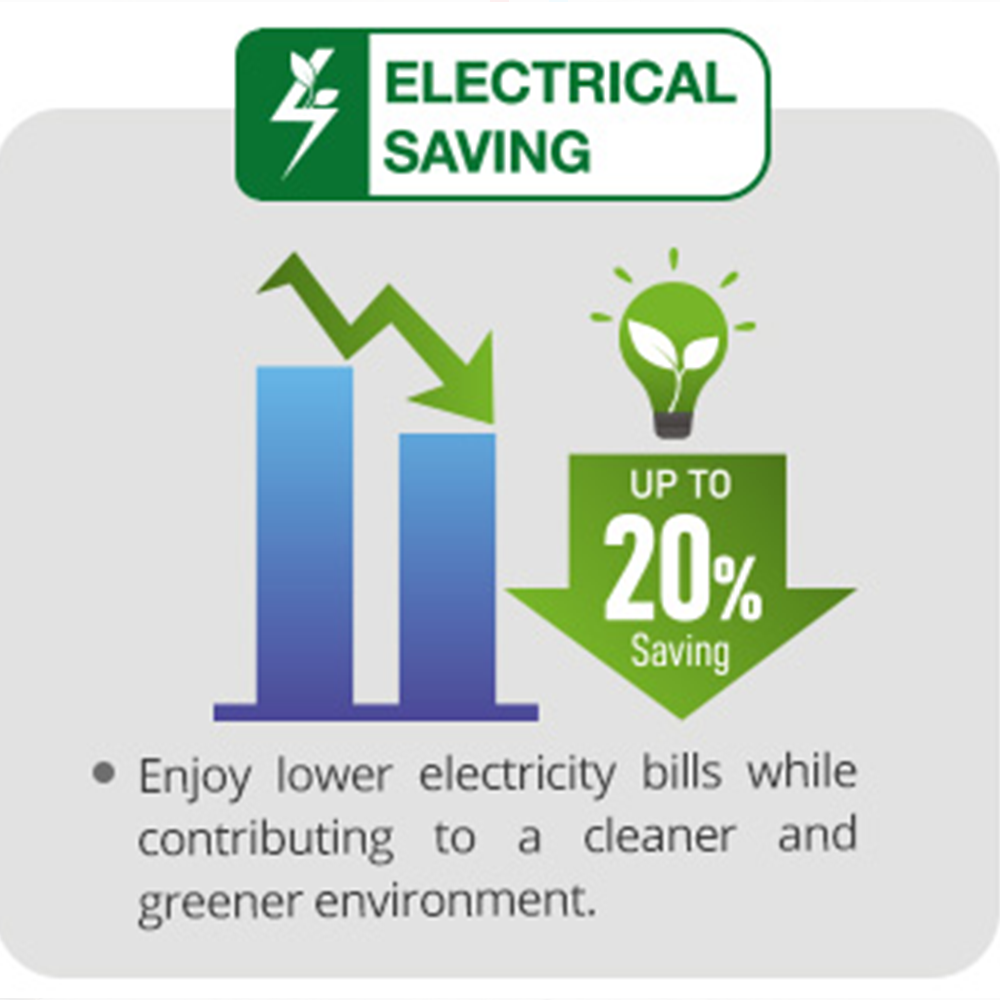

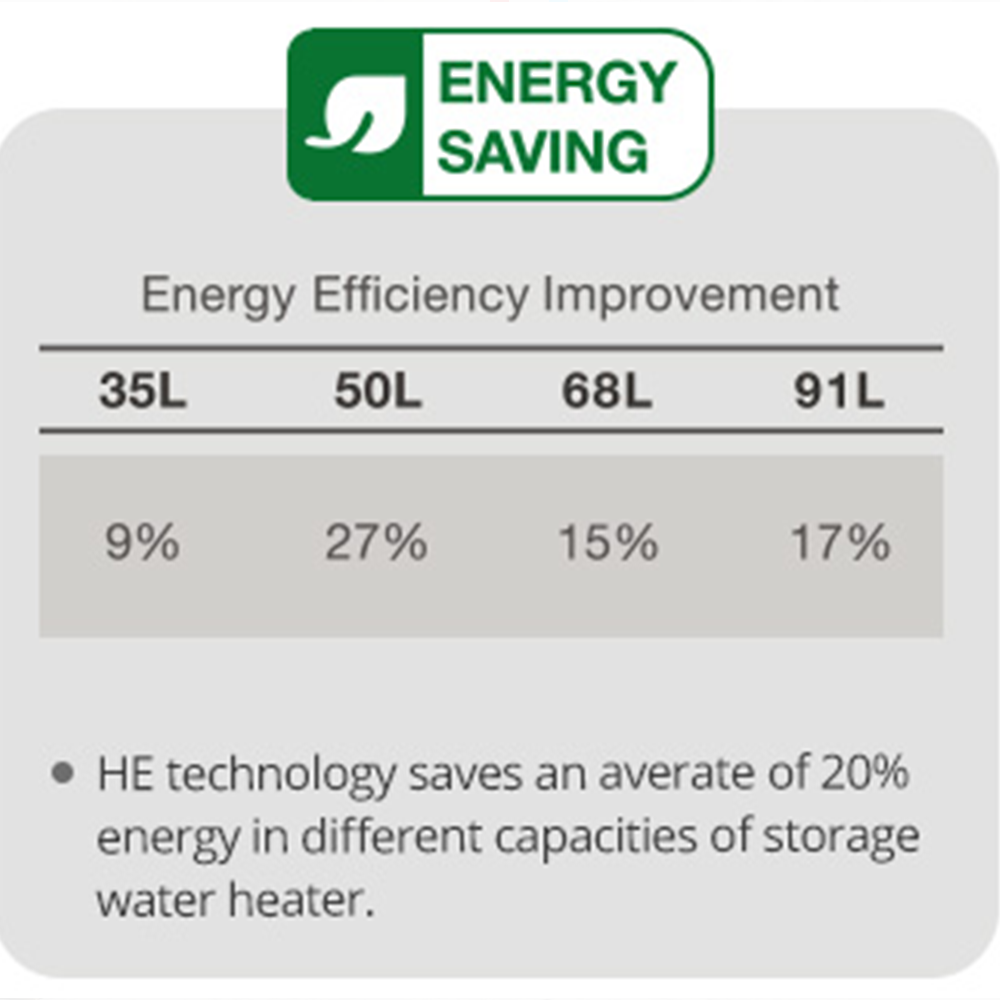

The heat elevator results in an average of 20% energy savings with less energy used and electrical savings in the long run.

(Available for JSH Series with Heat Elevator (HE) models only)

Longer-Lasting Hot Water

• Heat stays longer with the high-density CFC Free Polyurethane Insulation Foam 2.5 lb/ft³ or 40 kg/m³ which protects against heat loss when temperature has reached maximum cut-off point of 70°C.
• Heat stays up to 18 hours or longer before the temperature drops to 55°C for heating to reactivate.
• Saves energy with less heating frequency.

Durable

Built from high quality materials that withstand rust and rupture, thus ensuring durability and stellar performance.

• High Quality Incoloy Heating Element
• SUS304 Stainless Steel Tank
• Electro-Galvanized Steel With Epoxy Coated Enclosure
• High Quality Engineering Plastic
• Rust Free Materials

SAFETY FEATURES

ACCESSORIES

Easy Mounting With Universal Mounting Ring Bracket (Patent Pending)

An innovation by Joven, the Universal Mounting Ring Bracket enables easy mounting of storage water heater.

1. Mark the location of the ring bracket on a solid surface to secure the storage tank.
2. Drill hole according to marked surface and secure the mounting ring bracket with mounting bolts.
3. Slot in the tank into the ring bracket.
