MIDEA 1HP 1.5HP 2HP 2.5HP Non-Inverter Air Conditioner MSMF-10CRN8 / 13CRN8 / 19CRN8 / 25CRN8 | Fairy Series Wall Mount

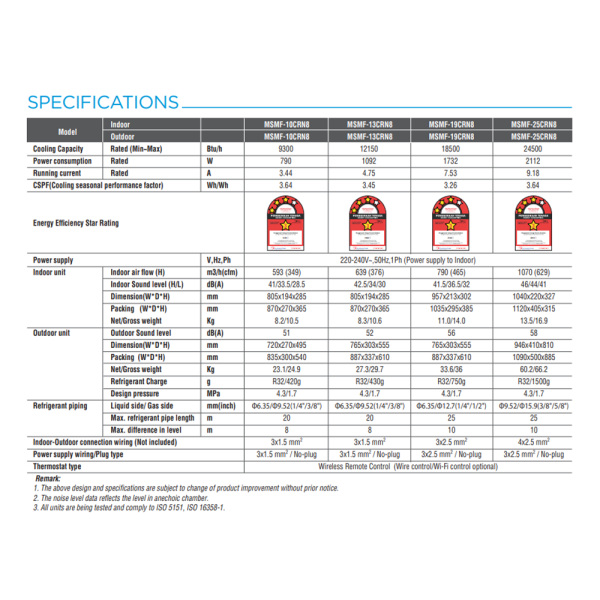

Specifications
MSMF-10CRN8 (1.0HP)
- Cooling Capacity (Rated) (Min~Max) (Btu/h): 9300
- Power consumption (W): 790
- Running current (A): 3.44
- CSPF(Cooling seasonal performance factor) (Wh/Wh): 3.64
- Energy Efficiency Star Rating: 4 Stars
- Power supply: 220-240V~,50Hz,1Ph (Power supply to Indoor)
Indoor Unit
- Indoor air flow (H) [m3/h(cfm)]: 593 (349)
- Indoor Sound level (H/L) [dB(A)]: 41/33.5/28.5
- Dimension(W*D*H) (mm): 805 x 194 x 285
- Packing (W*D*H) (mm): 870 x 270 x 365
- Net/Gross weight (Kg): 8.2/10.5
Outdoor Unit
- Indoor Sound level [dB(A)]: 51
- Dimension(W*D*H) (mm): 720x270x495
- Packing (W*D*H) (mm): 835x300x540
- Net/Gross weight (Kg): 23.1/24.9
- Refrigerant Charge: R32/420g
- Design pressure (MPa): 4.3/1.7
MSMF-13CRN8 (1.5HP)
- Cooling Capacity (Rated) (Min~Max) (Btu/h): 12150
- Power consumption (W): 1092
- Running current (A): 4.75
- CSPF(Cooling seasonal performance factor) (Wh/Wh): 3.45
- Energy Efficiency Star Rating: 4 Stars
- Power supply: 220-240V~,50Hz,1Ph (Power supply to Indoor)
Indoor Unit
- Indoor air flow (H) [m3/h(cfm)]: 639(376)
- Indoor Sound level (H/L) [dB(A)]: 42.5/34/30
- Dimension(W*D*H) (mm): 805 x 194 x 285
- Packing (W*D*H) (mm): 870 x 270 x 365
- Net/Gross weight (Kg): 8.3/10.6
Outdoor Unit
- Indoor Sound level [dB(A)]: 52
- Dimension(W*D*H) (mm): 765 x 303 x 555
- Packing (W*D*H) (mm): 887 x 337 x 610
- Net/Gross weight (Kg): 27.3/29.7
- Refrigerant Charge: R32/430g
- Design pressure (MPa): 4.3/1.7
MSMF-19CRN8 (2.0HP)
- Cooling Capacity (Rated) (Min~Max) (Btu/h): 18500
- Power consumption (W): 1732
- Running current (A): 4.75
- CSPF(Cooling seasonal performance factor) (Wh/Wh): 3.26
- Energy Efficiency Star Rating: 4 Stars
- Power supply: 220-240V~,50Hz,1Ph (Power supply to Indoor)
Indoor Unit
- Indoor air flow (H) [m3/h(cfm)]: 790(465)
- Indoor Sound level (H/L) [dB(A)]: 41.5/36.5/32
- Dimension(W*D*H) (mm): 957 x 213 x 302
- Packing (W*D*H) (mm): 1035 x 295 x 385
- Net/Gross weight (Kg): 11.0/14.0
Outdoor Unit
- Indoor Sound level [dB(A)]: 56
- Dimension(W*D*H) (mm): 765 x 303 x 555
- Packing (W*D*H) (mm): 887 x 337 x 610
- Net/Gross weight (Kg): 33.6/36
- Refrigerant Charge: R32/750g
- Design pressure (MPa): 4.3/1.7
MSMF-25CRN8 (2.5HP)
- Cooling Capacity (Rated) (Min~Max) (Btu/h): 24500
- Power consumption (W): 2112
- Running current (A): 9.18
- CSPF(Cooling seasonal performance factor) (Wh/Wh): 3.64
- Energy Efficiency Star Rating: 4 Stars
- Power supply: 220-240V~,50Hz,1Ph (Power supply to Indoor)
Indoor Unit
- Indoor air flow (H) [m3/h(cfm)]: 1070(629)
- Indoor Sound level (H/L) [dB(A)]: 46/44/41
- Dimension(W*D*H) (mm): 1040 x 220 x 327
- Packing (W*D*H) (mm): 1120 x 405 x 315
- Net/Gross weight (Kg): 13.5/16.9
Outdoor Unit
- Indoor Sound level [dB(A)]: 58
- Dimension(W*D*H) (mm): 946 x 410 x 810
- Packing (W*D*H) (mm): 1090 x 500 x 885
- Net/Gross weight (Kg): 60.2/66.2
- Refrigerant Charge: R32/1500g
- Design pressure (MPa): 4.3/1.7
