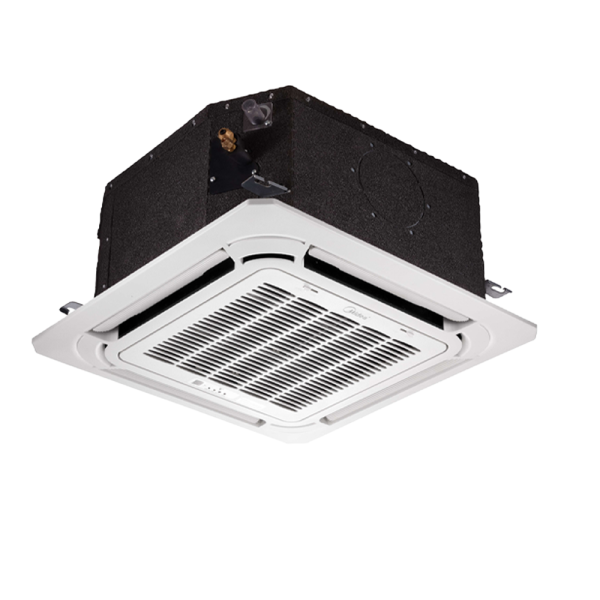

MIDEA 2HP – 5HP Non Inverter Ceiling Cassette MCDX-18CRN8 | MOUX-18CN8 / MCDX-25CRN8 | MOUX-25CN8 / MCDX-30CRN8 | MOUX-30CN8 / MCDX-36CRN8 | MOUX-36CN8 / MCDX-48CRN8 | MOUX-48CN8

*Buy 3 Sets or more GET discount RM150 off!

---

---

Specifications

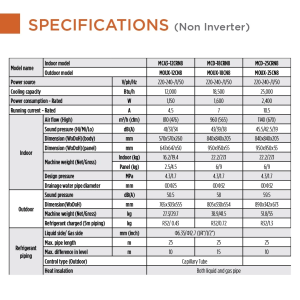

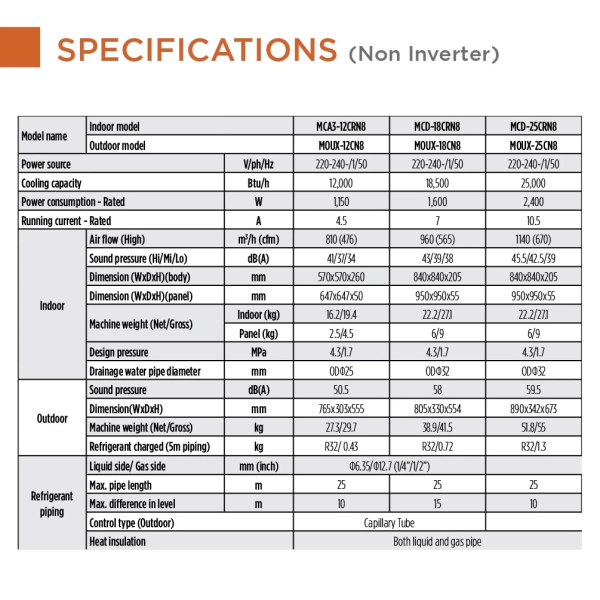

• Cooling Capacity (Btu/h): 12,000

• Power Consumption – Rated (W): 1,150

• Air Flow (High) [m3/h(cfm)]: 810 (476)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 41/37/34
• Dimension (W x D x H) (mm): Body – 570 x 570 x 260 ; Panel – 647 x 647 x 50
• Weight (Net/Gross)(kg): Indoor – 16.2/19.4; Panel: 2.5/4.5

• Sound Pressure [dB(A)]: 50.5
• Dimension (WxDxH) (mm): 765 x 303 x 555
• Weight (Net/Gross) (kg): 27.3/29.7

• Cooling Capacity (Btu/h): 18,500
• Power Consumption – Rated (W): 1,600

• Air Flow (High) [m3/h(cfm)]: 960 (565)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 43/39/38
• Dimension (W x D x H) (mm): Body – 840 x 840 x 205 ; Panel – 950 x 950 x 55
• Weight (Net/Gross)(kg): Indoor – 22.2/27.1; Panel: 6/9

• Sound Pressure [dB(A)]: 56
• Dimension (WxDxH) (mm): 805 x 330 x 554
• Weight (Net/Gross) (kg): 38.9/41.5

• Cooling Capacity (Btu/h): 25,000
• Power Consumption – Rated (W): 2,400

• Air Flow (High) [m3/h(cfm)]: 1150 (670)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 45.5/42.5/39
• Dimension (W x D x H) (mm): Body – 840 x 840 x 205 ; Panel – 950 x 950 x 55
• Weight (Net/Gross)(kg): Indoor – 22.2/27.1; Panel: 6/9

• Sound Pressure [dB(A)]: 59.5
• Dimension (WxDxH) (mm): 890 x 342 x 673
• Weight (Net/Gross) (kg): 51.8/55

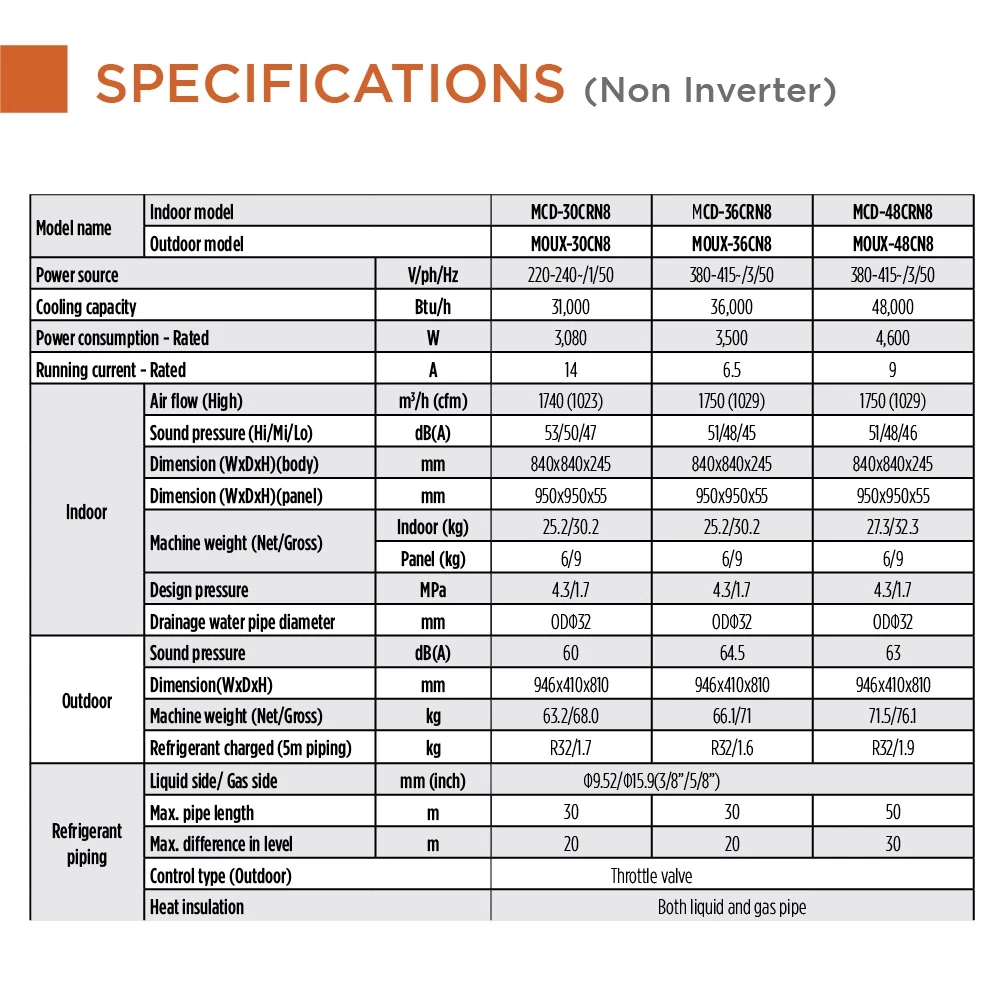

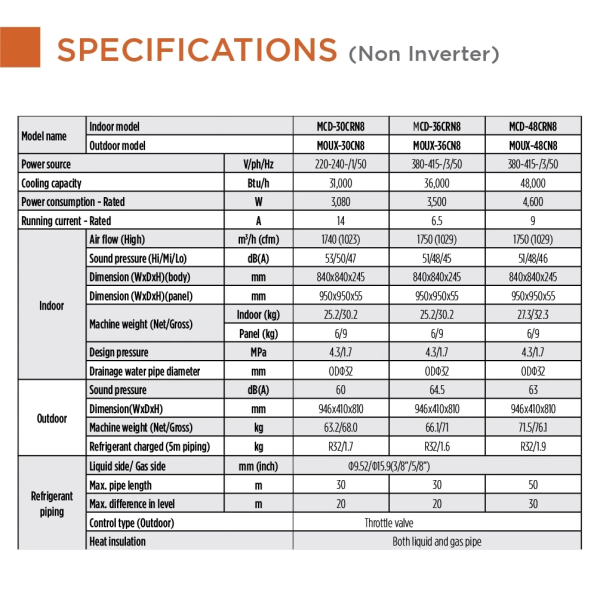

• Cooling Capacity (Btu/h): 31,000
• Power Consumption – Rated (W): 3,080

• Air Flow (High) [m3/h(cfm)]: 1740 (1023)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 53/50/47
• Dimension (W x D x H) (mm): Body – 840 x 840 x 245 ; Panel – 950 x 950 x 55
• Weight (Net/Gross) (kg): Indoor – 25.2/30.2; Panel: 6/9

• Sound Pressure [dB(A)]: 60
• Dimension (WxDxH) (mm): 946 x 410 x 810
• Weight (Net/Gross) (kg): 63.2/68

• Cooling Capacity (Btu/h): 36,000
• Power Consumption – Rated (W): 3,500

• Air Flow (High) [m3/h(cfm)]: 1750 (1029)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 51/48/45
• Dimension (W x D x H) (mm): Body – 840 x 840 x 245 ; Panel – 950 x 950 x 55
• Weight (Net/Gross) (kg): Indoor – 25.2/30.2; Panel: 6/9

• Sound Pressure [dB(A)]: 64.5
• Dimension (WxDxH) (mm): 946 x 410 x 810
• Weight (Net/Gross) (kg): 66.1/71

• Cooling Capacity (Btu/h): 48,000

• Power Consumption – Rated (W): 4,600

• Air Flow (High) [m3/h(cfm)]: 1750 (1029)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 51/48/46
• Dimension (W x D x H) (mm): Body – 840 x 840 x 245 ; Panel – 950 x 950 x 55
• Weight (Net/Gross)(kg): Indoor – 27.3/32.3; Panel: 6/9

• Sound Pressure [dB(A)]: 63
• Dimension (WxDxH) (mm): 946 x 410 x 810
• Weight (Net/Gross) (kg): 71.5/76.1
