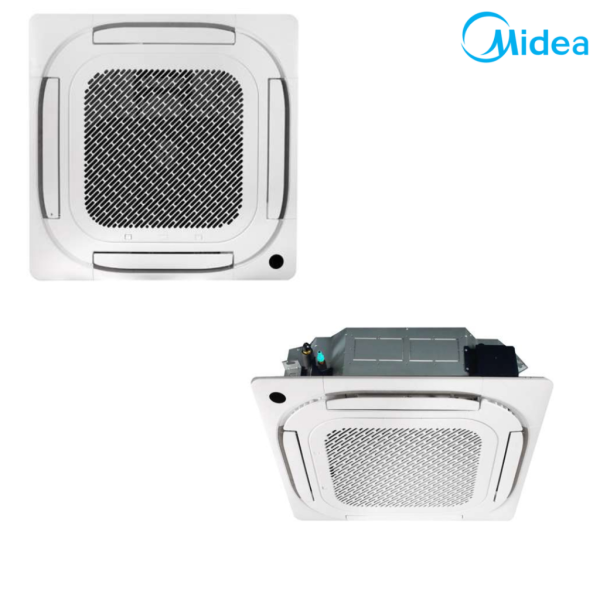

MIDEA 2HP – 5HP Inverter Ceiling Cassette MCX-24CRFNX | MOUX-18CFN8 / MCX-24CRFNX | MOUX-24CFN8 / MCX-30CRFNX | MOUX-30CFN8 / MCX-36CRFNX | MOUX-36CFN8 / MCX-40CRFNX | MOUX-40CFN8 / MCX-42CRFNX | MOUX-42CFN8 / MCX-48CRFNX | MOUX-48CFN8

*Buy 3 Sets or more GET discount RM150 off!

---

---

Specifications

• Cooling Capacity (Btu/h): 18
• Power Consumption – Rated (Min-Max): 1,633 (720-2,088)

• Air Flow (High) [m3/h(cfm)]: 1247 (734)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 45.4/44/39
• Dimension (W x D x H) (mm): Body – 830 x 830 x 205 ; Panel – 950 x 950 x 55
• Weight (Net/Gross)(kg): Indoor – 21.6/25.4; Panel: 6/9

• Sound Pressure [dB(A)]: 56
• Dimension (WxDxH) (mm): 805 x 330 x 554
• Weight (Net/Gross) (kg): 32.5/35.2

• Cooling Capacity (Btu/h): 24,000
• Power Consumption – Rated (Min-Max): 2,320 (780-2,088)

• Air Flow (High) [m3/h(cfm)]: 1247 (734)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 50/47.5/42
• Dimension (W x D x H) (mm): Body – 830 x 830 x 205 ; Panel – 950 x 950 x 55
• Weight (Net/Gross)(kg): Indoor – 21.6/25.4; Panel: 6/9

• Sound Pressure [dB(A)]: 60
• Dimension (WxDxH) (mm): 890 x 342 x 673
• Weight (Net/Gross) (kg): 43.9/46.9

• Cooling Capacity (Btu/h): 30,000
• Power Consumption – Rated (Min-Max): 2,750 (190-3,000)

• Air Flow (High) [m3/h(cfm)]: 1700 (1000)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 50.5/48/46
• Dimension (W x D x H) (mm): Body – 830 x 830 x 245 ; Panel – 950 x 950 x 55
• Weight (Net/Gross)(kg): Indoor – 24.6/28.6; Panel: 6/9

• Sound Pressure [dB(A)]: 62
• Dimension (WxDxH) (mm): 946 x 410 x 810
• Weight (Net/Gross) (kg): 52.8/57.3

• Cooling Capacity (Btu/h): 36,000
• Power Consumption – Rated (Min-Max): 3,950 (900-4,200)

• Air Flow (High) [m3/h(cfm)]: 1700 (1000)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 51/48/46
• Dimension (W x D x H) (mm): Body – 830 x 830 x 245 ; Panel – 950 x 950 x 55
• Weight (Net/Gross)(kg): Indoor – 27.2/31.2; Panel: 6/9

• Sound Pressure [dB(A)]: 63
• Dimension (WxDxH) (mm): 946 x 410 x 810
• Weight (Net/Gross) (kg): 66.9/71.5

• Cooling Capacity (Btu/h): 36,000
• Power Consumption – Rated (Min-Max): 4,000 (890-4,150)

• Air Flow (High) [m3/h(cfm)]: 1700 (1000)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 51/49/46
• Dimension (W x D x H) (mm): Body – 830 x 830 x 245 ; Panel – 950 x 950 x 55
• Weight (Net/Gross)(kg): Indoor – 27.2/31.2; Panel: 6/9

• Sound Pressure [dB(A)]: 63
• Dimension (WxDxH) (mm): 946 x 410 x 810
• Weight (Net/Gross) (kg): 80.5/85

• Cooling Capacity (Btu/h): 42,000
• Power Consumption – Rated (Min-Max): 4,200 (680-4,350)

• Air Flow (High) [m3/h(cfm)]: 1900 (1118)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 52.5/50/47.5
• Dimension (W x D x H) (mm): Body – 830 x 830 x 287 ; Panel – 950 x 950 x 55
• Weight (Net/Gross)(kg): Indoor – 29.3/33.5; Panel: 6/9

• Sound Pressure [dB(A)]: 63
• Dimension (WxDxH) (mm): 946 x 410 x 810
• Weight (Net/Gross) (kg): 71/75

• Cooling Capacity (Btu/h): 48,000
• Power Consumption – Rated (Min-Max): 4,650 (800-5,900)

• Air Flow (High) [m3/h(cfm)]: 1900 (1118)
• Sound Pressure (Hi/Mi/Lo) [dB(A)]: 52.5/50.5/48
• Dimension (W x D x H) (mm): Body – 830 x 830 x 287 ; Panel – 950 x 950 x 55
• Weight (Net/Gross)(kg): Indoor – 29.3/33.5; Panel: 6/9

• Sound Pressure [dB(A)]: 63.5
• Dimension (WxDxH) (mm): 952 x 415 x 1333
• Weight (Net/Gross) (kg): 103.7/118.3
