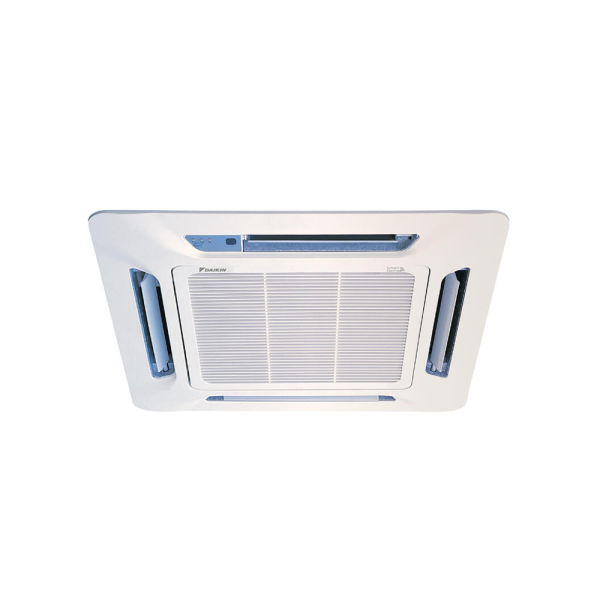

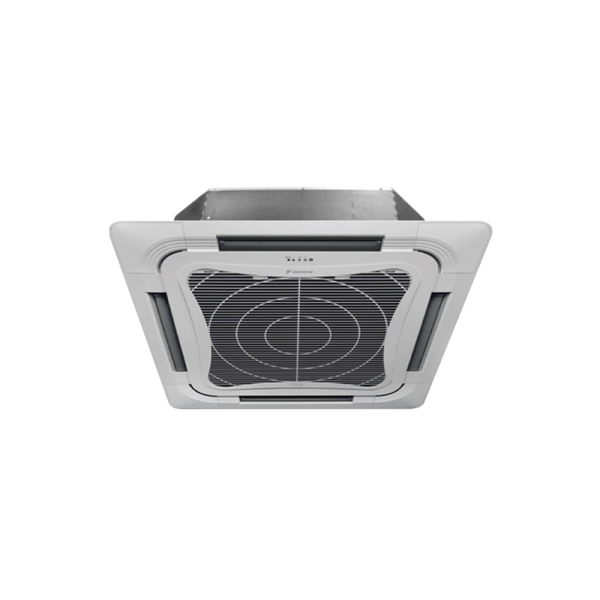

DAIKIN 1.5HP – 5HP FFC-A/FCC-A Series Non Inverter Ceiling Cassette | Smart Control Advanced Cooling

---



---

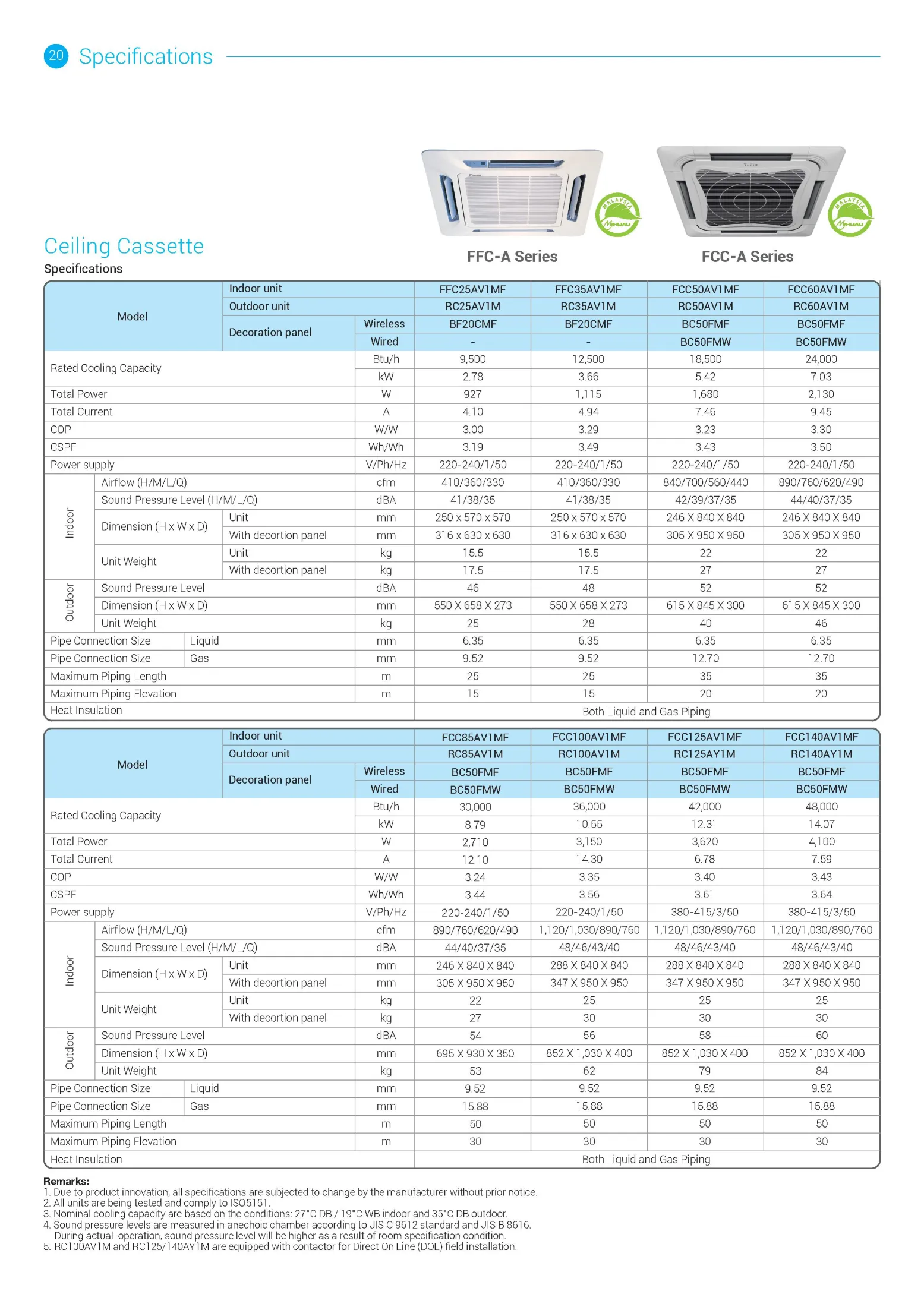

Specifications

1.5HP FFC35AV1MF / RC35BV1M

• 1.5HP (12500Btu/hr)
• Rated Power: 1115W
• Indoor (with Panel): H316 x W630 x D630 mm / 17.5kg
• Outdoor: H550 x W658 x D273 mm / 28kg



2HP FCC50AV1MF / RC50BV1M

• 2HP (18500Btu/hr)
• Rated Power: 1680W
• Indoor (with Panel): H305 x W950 x D950 mm / 27kg
• Outdoor: H615 x W845 x D300 mm / 40kg



2.5HP FCC60AV1MF / RC60BV1M

• 2.5HP (24000Btu/hr)
• Rated Power: 2130W
• Indoor (with Panel): H305 x W950 x D950 mm / 27kg
• Outdoor: H615 x W845 x D300 mm / 46kg



3HP FCC85AV1MF / RC85BV1M

• 3HP (30000Btu/hr)
• Rated Power: 2710W
• Indoor (with Panel): H305 x W950 x D950 mm / 27kg
• Outdoor: H695 X W930 X D350 mm / 53kg



3.5HP FCC100AV1MF / RC100BV1M

• 3.5HP (36000Btu/hr)
• Rated Power: 3150W
• Indoor (with Panel): H347 X W950 X D950 mm / 30kg
• Outdoor: H852 X W1030 X D400 mm / 62kg



4HP FCC125AV1MF / RC125BY1M

• 4HP (42000Btu/hr)
• Rated Power: 3620W
• Indoor (with Panel): H347 X W950 X D950 mm / 30kg
• Outdoor: H852 X W1030 X D400 mm / 79kg



5HP FCC140AV1MF / RC140BY1M

• 5HP (48000Btu/hr)
• Rated Power: 4100W
• Indoor (with Panel): H347 X W950 X D950 mm / 30kg
• Outdoor: H852 X W1030 X D400 mm / 84kg
