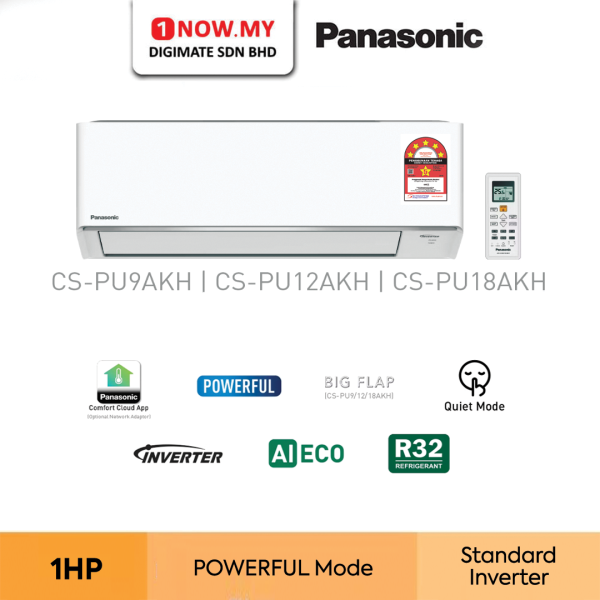

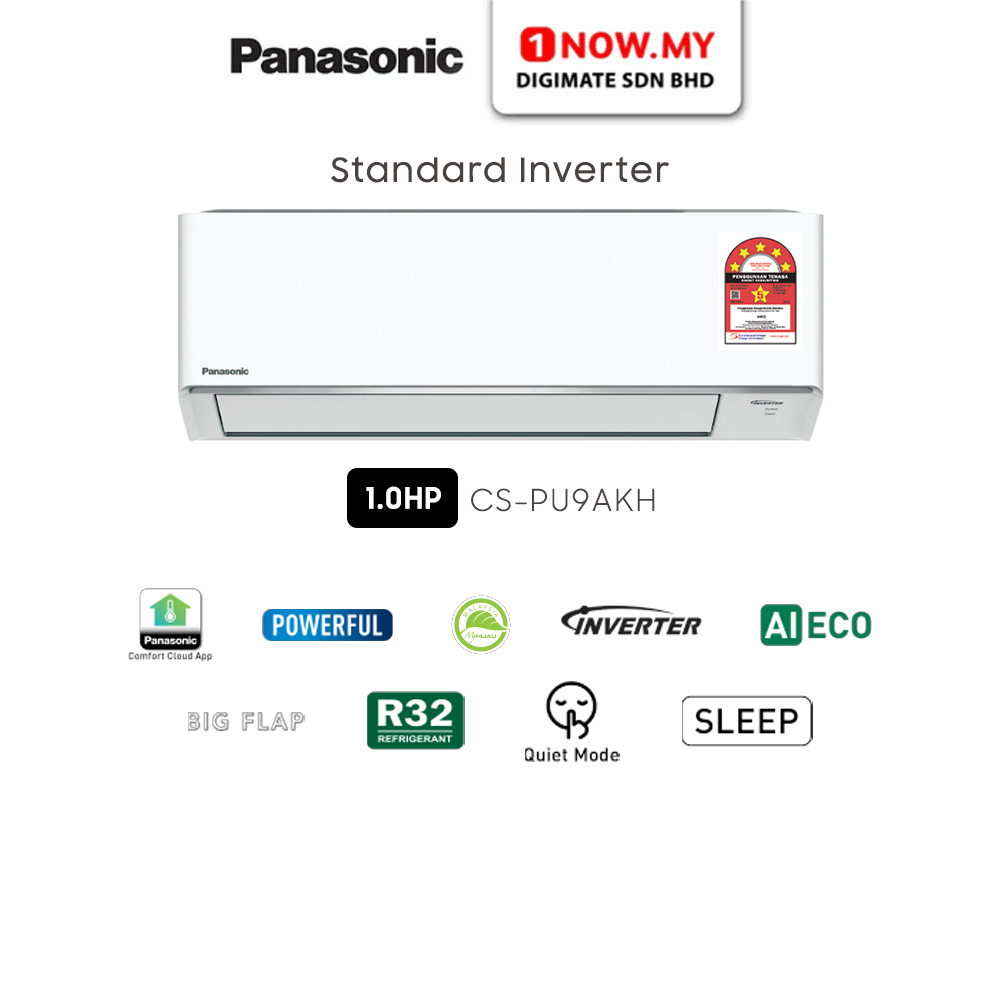

PANASONIC 1HP Standard Inverter Air Conditioner PU Series CS-PU9AKH | PU-AKH Powerful Energy Saving Air Protection

Connect & Control Your Air Conditioners Anywhere, Anytime

Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

Better Living, Together with Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of energy-saving Inverter technology and environmentally friendly R32 refrigerant. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. A smarter, greener choice with energy-saving technologies for a sustainable living.

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.

*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode cools your room faster by 18%*, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling even during start-up.

*Comparison of POWERFUL cool mode & normal cool mode by using 1.5HP Inverter Model.

Comfort Cooling Environment for Your Needs

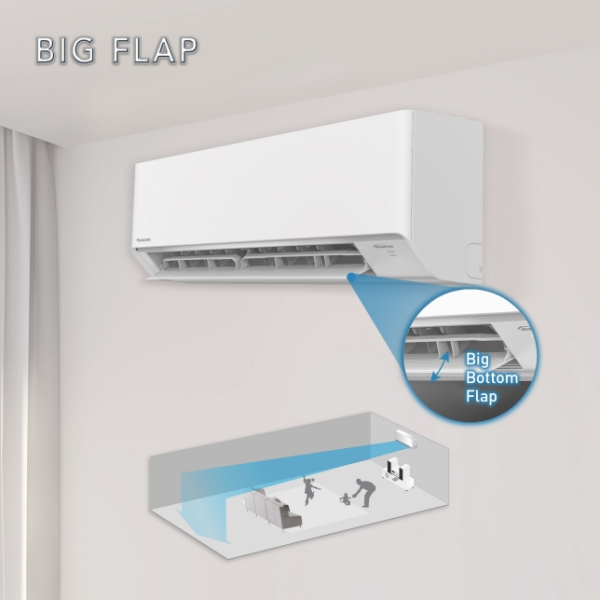

Long Airflow with Big Flap

Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.

*Applicable to CS-PU9AKH, CS-PU12AKH and CS-PU18AKH only.

Stay Cool with Faster, Further Airflow

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.

*Applicable to CS-PU24AKH only.

Calm and Peaceful Environment with Quiet Mode

Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Sleep Better at Night

A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Convenient Control at Your Fingertips

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

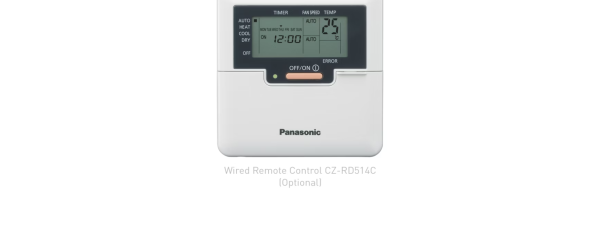

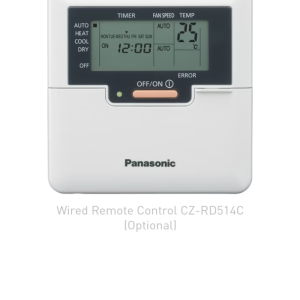

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Specifications

• Horsepower: 1HP
• Indoor Unit: CS-PU9AKH
• Outdoor: CU-RU9AKH
• Cooling Capacity: 2.65 kw ; 9040 Btu/h
• EER (min-max): 12.05 Btu/hW ; 3.53 W/W
• Voltage(V): 220-240V
• Current(A): 3.7-3.4 A
• Power Input (min-max)(W): 750 (225-1030) W
• Moisture Removal (L/h): 1.6 L/h
• Moisture Removal (Pt/h) : 3.4 Pt/h

• Air Circulation: 10.3 m3/min (365 ft3/min)
• Unit Noise Level (H/L/Q-Lo): 36/26/21 dB(A)

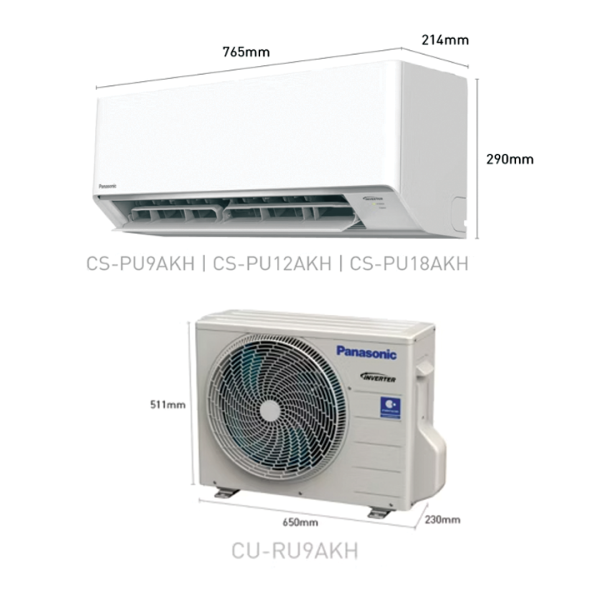

• Unit Dimensions (H x W x D)(mm): 290 x 765 x 214 mm
• Packaging Dimensions (H x W x D)(mm): 260 x 847 x 364 mm
• Unit Weight: 8kg

• Air Circulation: 26.7 m3/min (940 ft3/min)
• Unit Noise Level (H): 47 dB(A)
• Unit Dimensions (H x W x D)(mm): 511 x 650 x 230 mm
• Packaging Dimensions (H x W x D)(mm): 582 x 793 x 356 mm
• Unit Weight: 18kg

• Liquid Side: Ø 6.35 mm (1/4 inch)
• Gas Side: Ø9.52 mm (3/8 inch)

• Chargeless Pipe Length: 7.5m
• Maximum Pipe Length: 20m
• Maximum Elevation Length: 15m
• Additional Refrigerant Gas*: 10 g/m

• Power Supply: Indoor
• Odour Removing Function: Yes
• Wi-Fi: Optional network adaptor is required
• 24/7 Dual ON & OFF Real Setting Timer: Yes
• LCD Wireless Control: Yes
• Wired Remote Control: Optional
• Powerful Mode: Yes
• Sleep Mode: Yes
• Quiet Mode: Yes
• Soft Dry Operation Mode: Yes
• Airflow Direction Control (Up/Down): Yes
• Manual Horizontal Airflow Direction Control: Yes
• Inverter Control: Yes
• Refrigerant Type: R32
• Random Auto Restart: Yes (32 Restart Patterns)
• Blue Fin Condensor: Yes
• Long Piping (max.): 20m
• Top Panel Maintainence Access: Yes
• Self-Diagnosis Function: Yes
