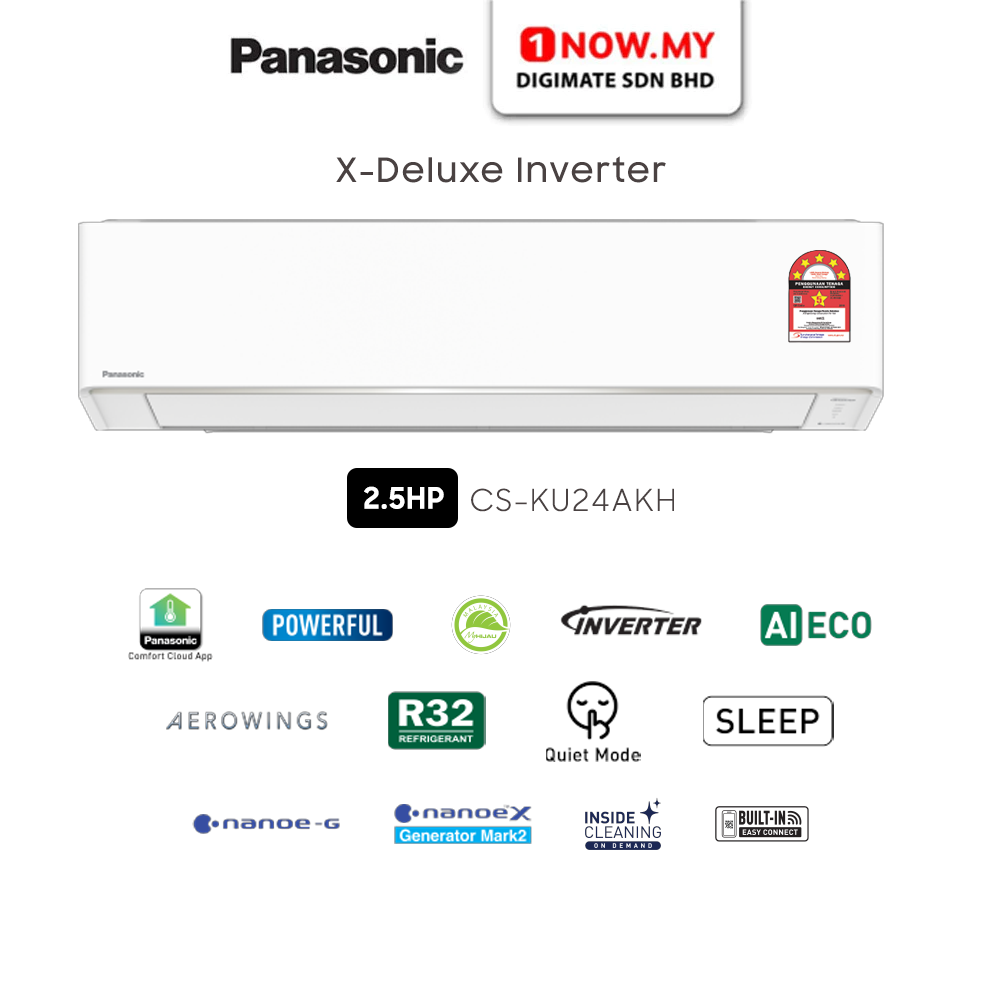

PANASONIC 2.5HP X-Deluxe Inverter Air Conditioner KU Series CS-KU24AKH / CU-RU24AKH | KU-AKH Wifi Energy Efficient

Specifications

• Horsepower: 2HP
• Indoor Unit: CS-KU12AKH-1
• Outdoor: CU-RU12AKH
• Cooling Capacity: 5.3 kw ; 18100 Btu/h
• EER (min-max): 11.24 (12.93-11.20) Btu/hW ; 3.29 (3.79-3.28) W/W
• Voltage(V): 220-240V
• Current(A): 7.4-6.8 A
• Power Input (min-max)(W): 1610 (290-1830) W
• Moisture Removal (L/h): 2.9 L/h
• Moisture Removal (Pt/h) : 6.1 Pt/h
• Power Supply: Indoor

Indoor Unit

• Air Circulation: 19.3 m3/min (390 ft3/min)
• Unit Noise Level (H/L/Q-Lo): 44/32/27 dB(A)

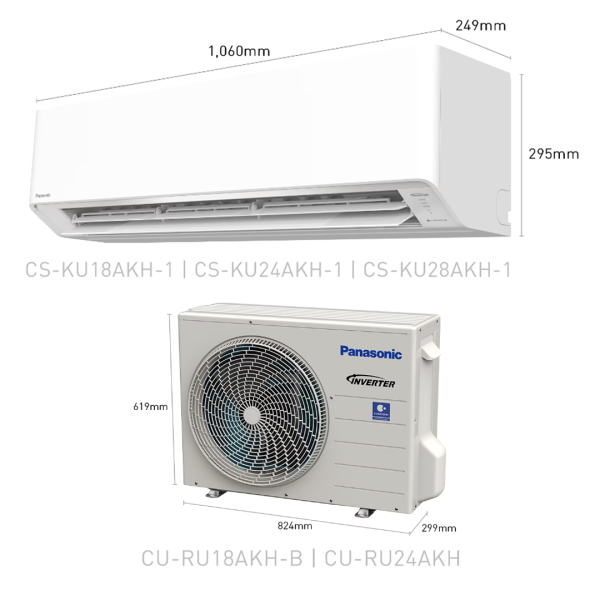

• Unit Dimensions (H x W x D)(mm): 295 x 1060 x 249 mm
• Unit Weight: 12kg

Outdoor Unit

• Air Circulation: 39.3 m3/min (1080 ft3/min)
• Unit Noise Level (H): 50 dB(A)
• Unit Dimensions (H x W x D)(mm): 619 x 824 x 299 mm
• Unit Weight: 29kg

—————————————————————

Refrigerant Pipe Diameter

• Liquid Side: Ø 6.35 mm (1/4 inch)
• Gas Side: Ø 12.70 mm (1/2 inch)

Pipe Extension

• Chargeless Pipe Length: 10m
• Maximum Pipe Length: 30m
• Maximum Elevation Length: 20m
• Additional Refrigerant Gas*: 15 g/m

—————————————————————

Functions

• nanoeX (Generator Mark 2)
• nanoe-G
• Inside Cleaning on Demand
• Odour Removing Function
• Removable, Washable Panel
• Anti-Dust Cross Flow Fan
• Wi-Fi
• 24-Hour ON/OFF Real Setting Timer

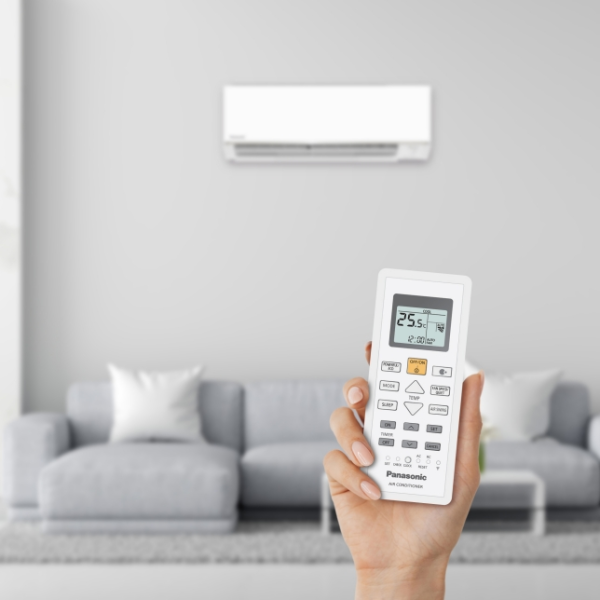

• LCD Wireless Remote Control

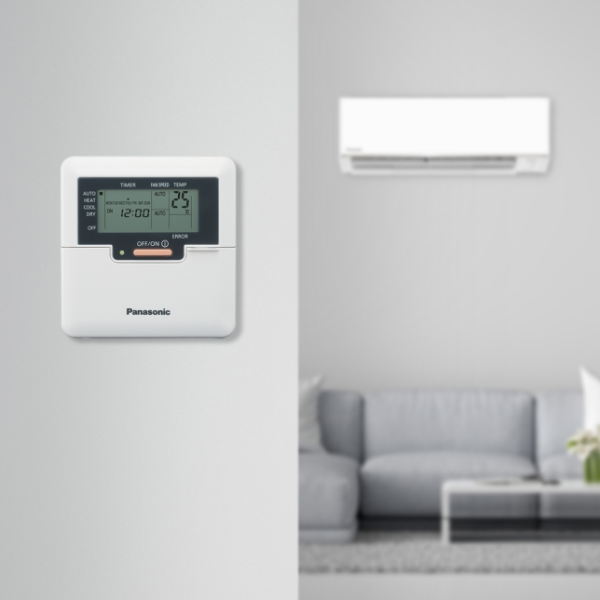

• Wire Remote Control (Optional)
• Powerful Mode
• Sleep Mode
• Quiet Mode
• Soft Dry Operation Mode
• Inverter Control
• ECO Mode with A.I.
• Random Auto Restart (32 Restart Patterns)
• Blue Fin Condenser
• Top Panel Maintenance Access
• Self-Diagnostic Function
