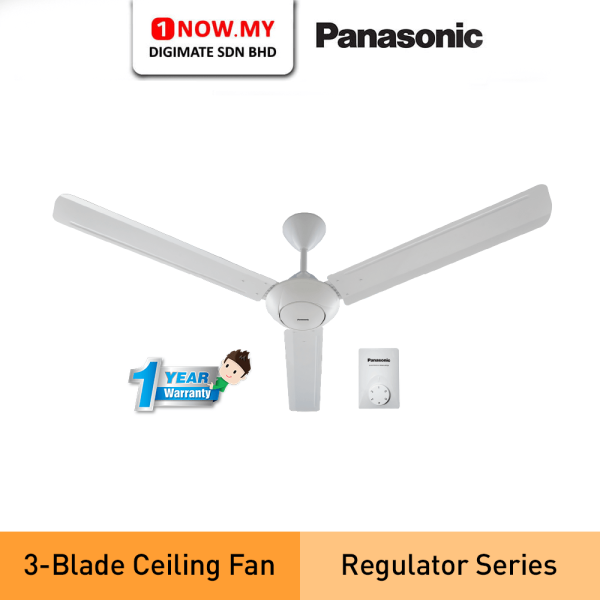

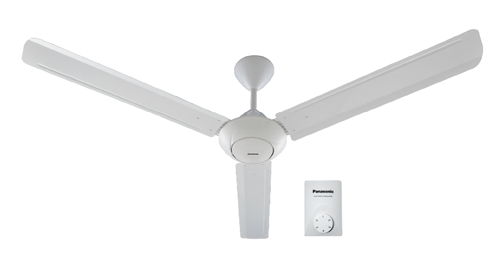

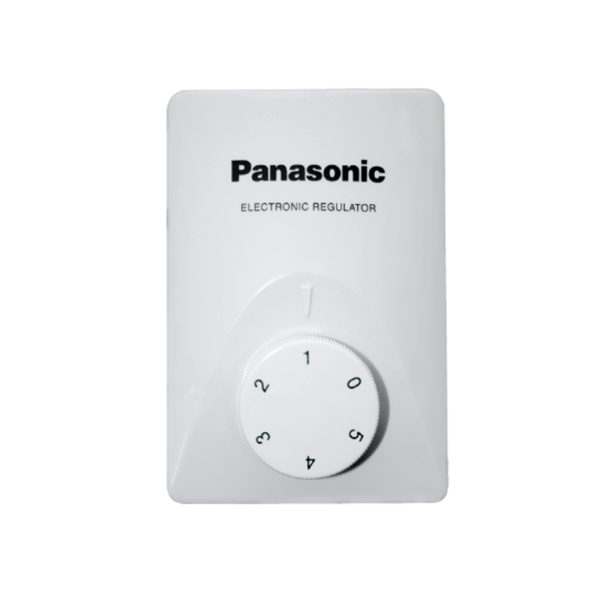

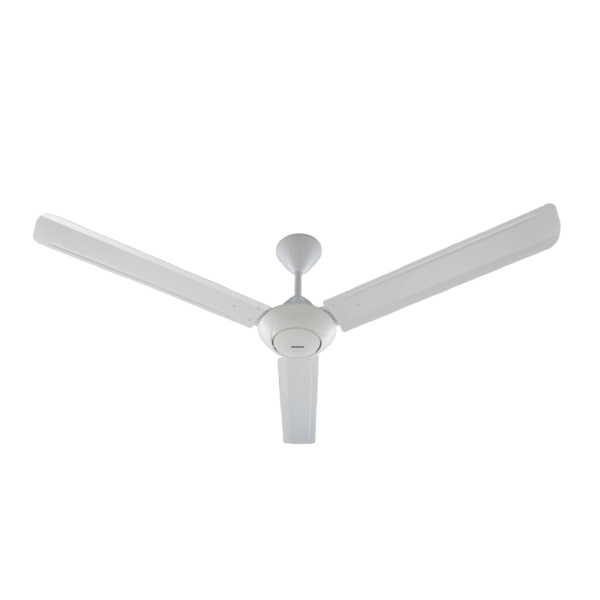

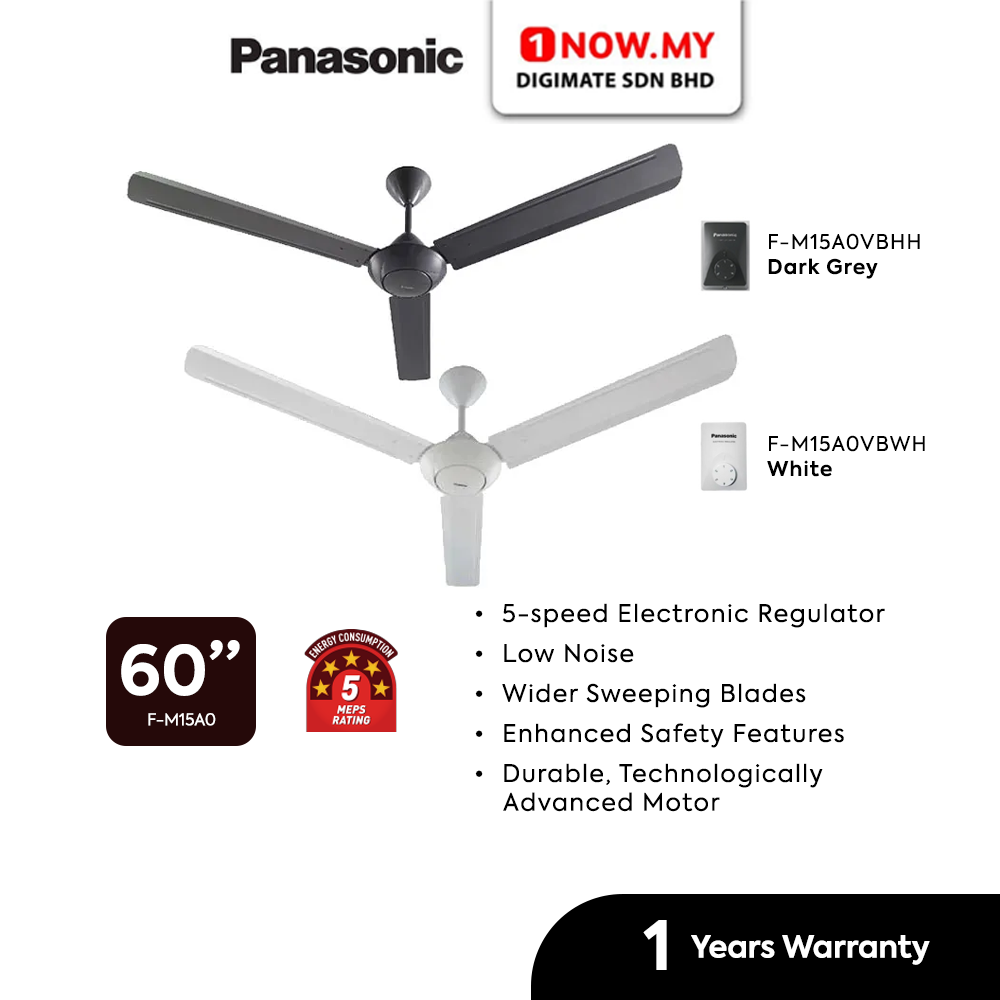

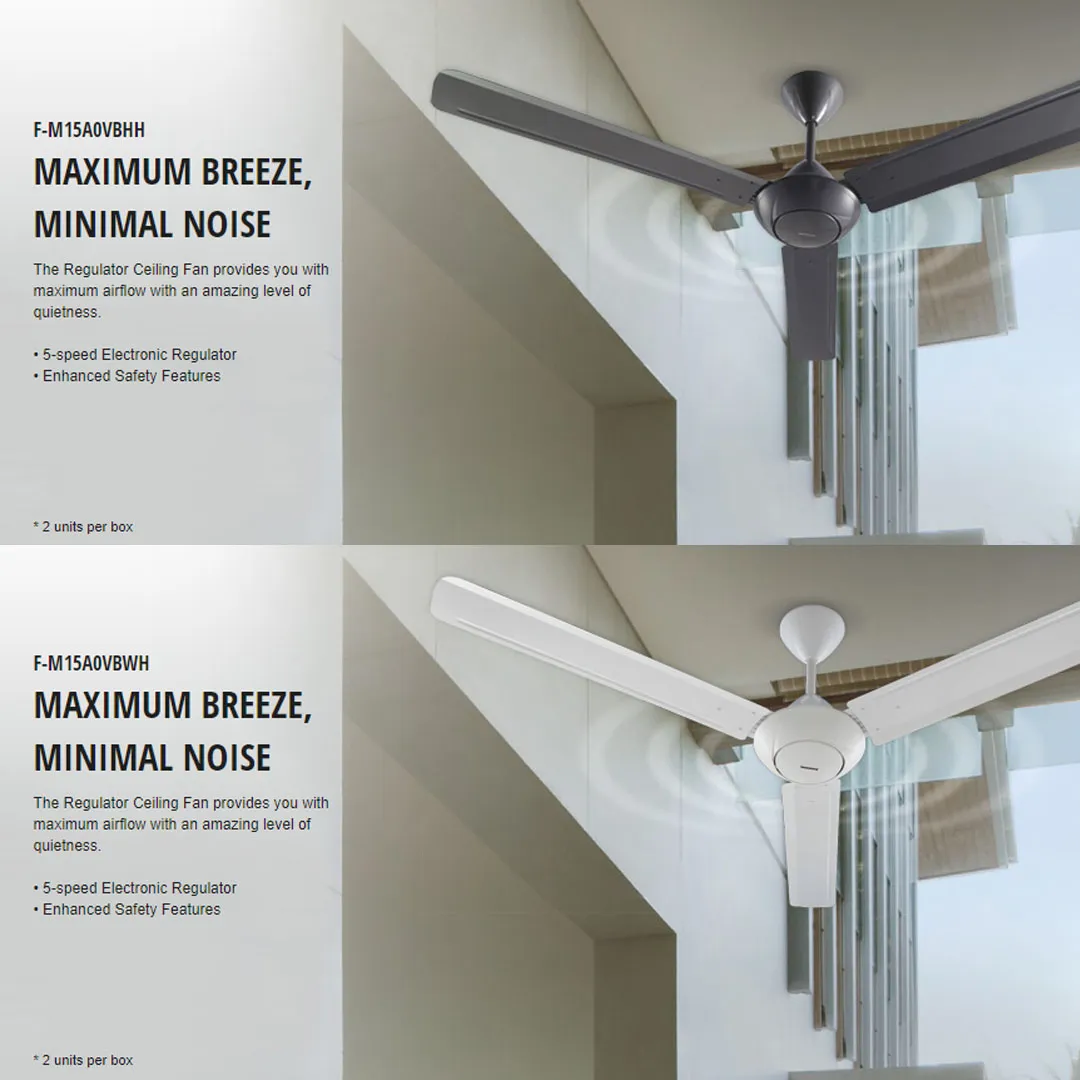

PANASONIC 60" 3 Blade Regulator Ceiling Fan F-M15A0VBWH | Durable Advanced Motor
Reliable – Multi-Level Safety Protection
Thermal Safety Fuse
– Against fire hazard, prevents electric shocks and protects motor from current surge.
Current Fuse
– Prevent current leakage or abnormal current.
Safety wire
– Safety wire secures the fan motor to the ceiling hook to prevent detachment of the fan motor from rod.
Cut-off Safety Switch
– Cut off power supply while detecting dangerous wear and tear of the shaft or bolt.
Blade Safety Plate
– A fall prevention plate is installed on the blade to prevent fan blade to detach and dropping from the ceiling in case it damages.
Specifications
| General Information | Fan Speed (RPM) | (Low) | 81 – 118 |
|---|---|---|---|
| (High) | 216 – 264 | ||
| Power Consumption (W) | (Low) | 15 – 20 | |
| (High) | 67 – 82 | ||
| Air Velocity | 165 m/min | ||
| Air Delivery | 230 m/min | ||
| Motor HP | 0.11 | ||
| Motor Type | 14 Pole Condenser Motor | ||
| Noise Level (dB) | <54 | ||
| Nett Weight (kg) | 7.3 | ||

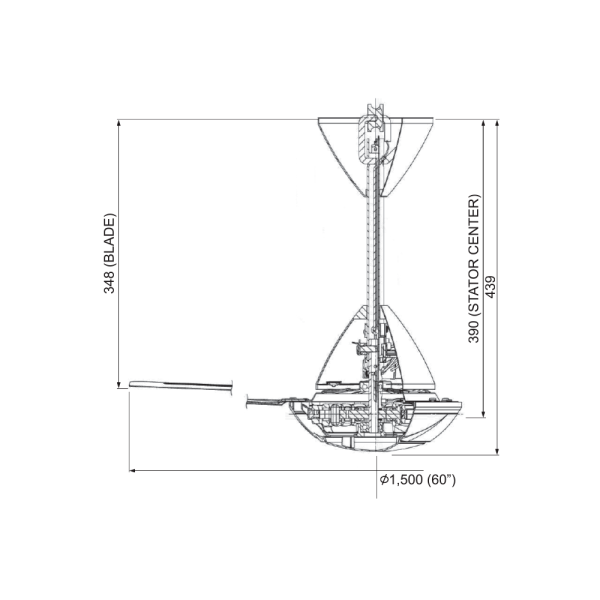

| Length from pully to PCB cover (mm) | 439 | ||
| Length from pully to blade (mm) | 348 | ||
| NOTE | Design and specifications are subject to chance without notice. | ||
| Weight | 8.60 kg |
|---|---|
| Dimensions | 30.00 × 77.00 × 24.00 cm |
