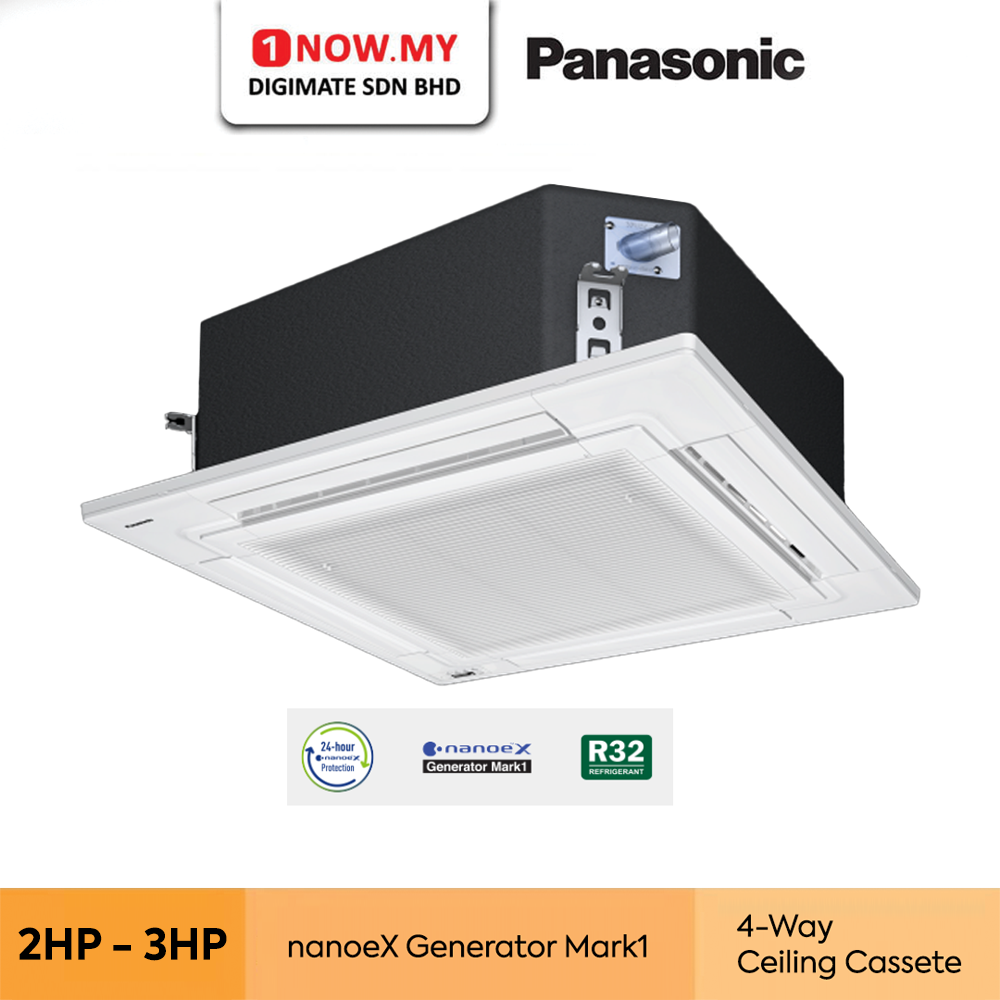

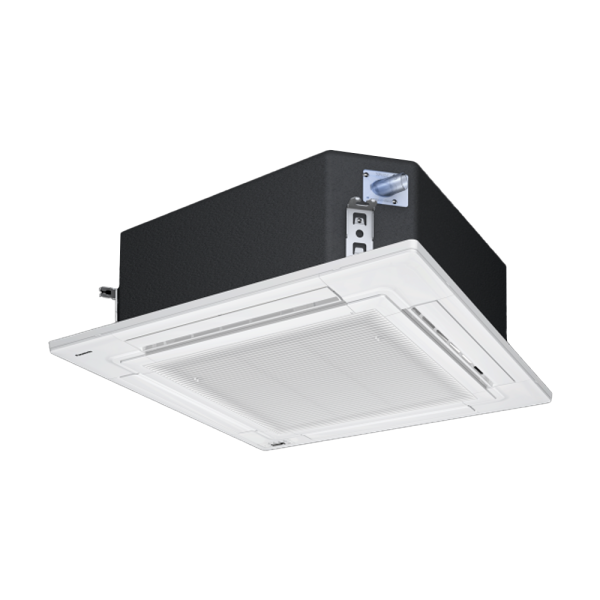

PANASONIC 2HP 2.5HP 3HP Non Inverter 4-Way Ceiling Cassette PU1H5C-N5 S-19PU1H5C / 25PU1H5C / 30PU1H5C-1 | Powerful 360° Airflow Air Purification

---

---

Specifications

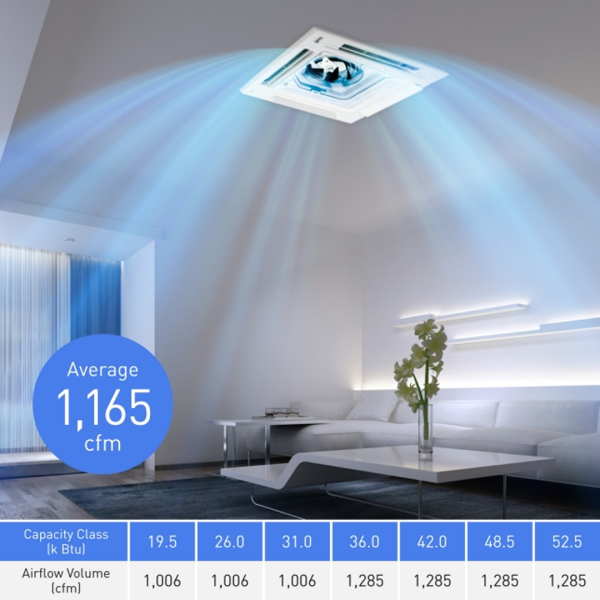

• Air Volume: 28.5 m³/min, 1,006 cfm
• Sound Pressure Level (Hi/Lo): 46/35 dB (A)
• Sound Power Level (Hi/Lo): 61/50 Db
• Dimension (Indoor): H256 x W840 x D840 mm

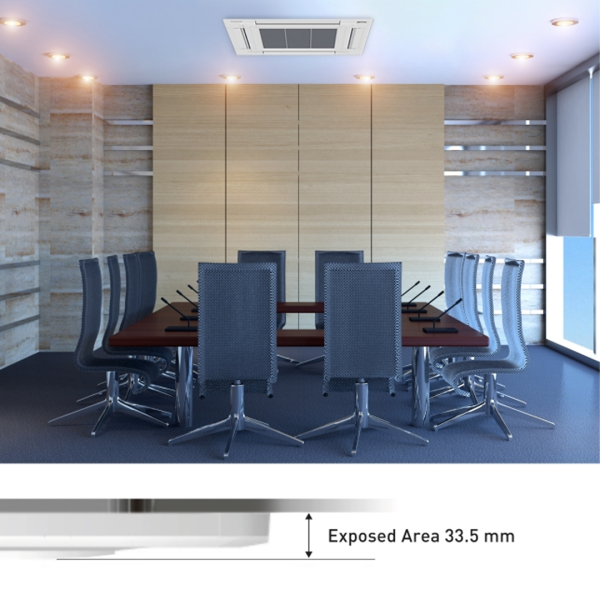

• Dimension (Panel): H33.5 x W950 x D950 mm
• Net Weight (Indoor): 21 kg
• Net Weight (Panel): 5 kg

• Capacity (Btu/h): 19,500
• Current (A): 7.1
• Power Input – Rated (kW): 3.59

• Refrigerant Type: R32
• Sound Pressure Level [dB(A)]: 50
• Sound Power Level (dB): 66
• Dimension (mm): 619 x 824 x 299
• Net Weight (kg): 36
• Piping Connection (mm) – Gas Pipe: 12.70 (1/2) ; Liquid Pipe: 6.35 (1/4)
• Pipe Length (min-max)(m): 7.5-30
• Elevation Difference: 20
• Max. Chargeless Length (Max)(m): 7.5
• Operating Range, Outdoor (Min-Max)( °C): 16-43

• Capacity (Btu/h): 26,000
• Current (A): 9.4
• Power Input – Rated (kW): 2.13

• Refrigerant Type: R32
• Sound Pressure Level [dB(A)]: 52
• Sound Power Level (dB): 68
• Dimension (mm): 619 x 824 x 299
• Net Weight (kg): 42
• Piping Connection (mm) – Gas Pipe: 12.70 (1/2) ; Liquid Pipe: 6.35 (1/4)
• Pipe Length (min-max)(m): 7.5-30
• Elevation Difference: 20
• Max. Chargeless Length (Max)(m): 7.5
• Operating Range, Outdoor (Min-Max)( °C): 16-43

• Capacity (Btu/h): 31,000
• Current (A): 13.6
• Power Input – Rated (kW): 3.13

• Refrigerant Type: R32
• Sound Pressure Level [dB(A)]: 54
• Sound Power Level (dB): 69
• Dimension (mm): 695 x 875 x 320
• Net Weight (kg): 56
• Piping Connection (mm) – Gas Pipe: 155.88 (5/8) ; Liquid Pipe: 9.52 (3/8)
• Pipe Length (min-max)(m): 7.5-45
• Elevation Difference: 30
• Max. Chargeless Length (Max)(m): 7.5
• Operating Range, Outdoor (Min-Max)( °C): 16-43
