Cools you faster

Fast Cooling

Cool a whole room rapidly and effectively. Fast Cooling mode operates with the fastest fan speed, before slowing down. So it cools or heats much faster compared to the normal mode* and reaches the desired temperature in the shortest time. It’s ideal for immediate relief from the heat outside.

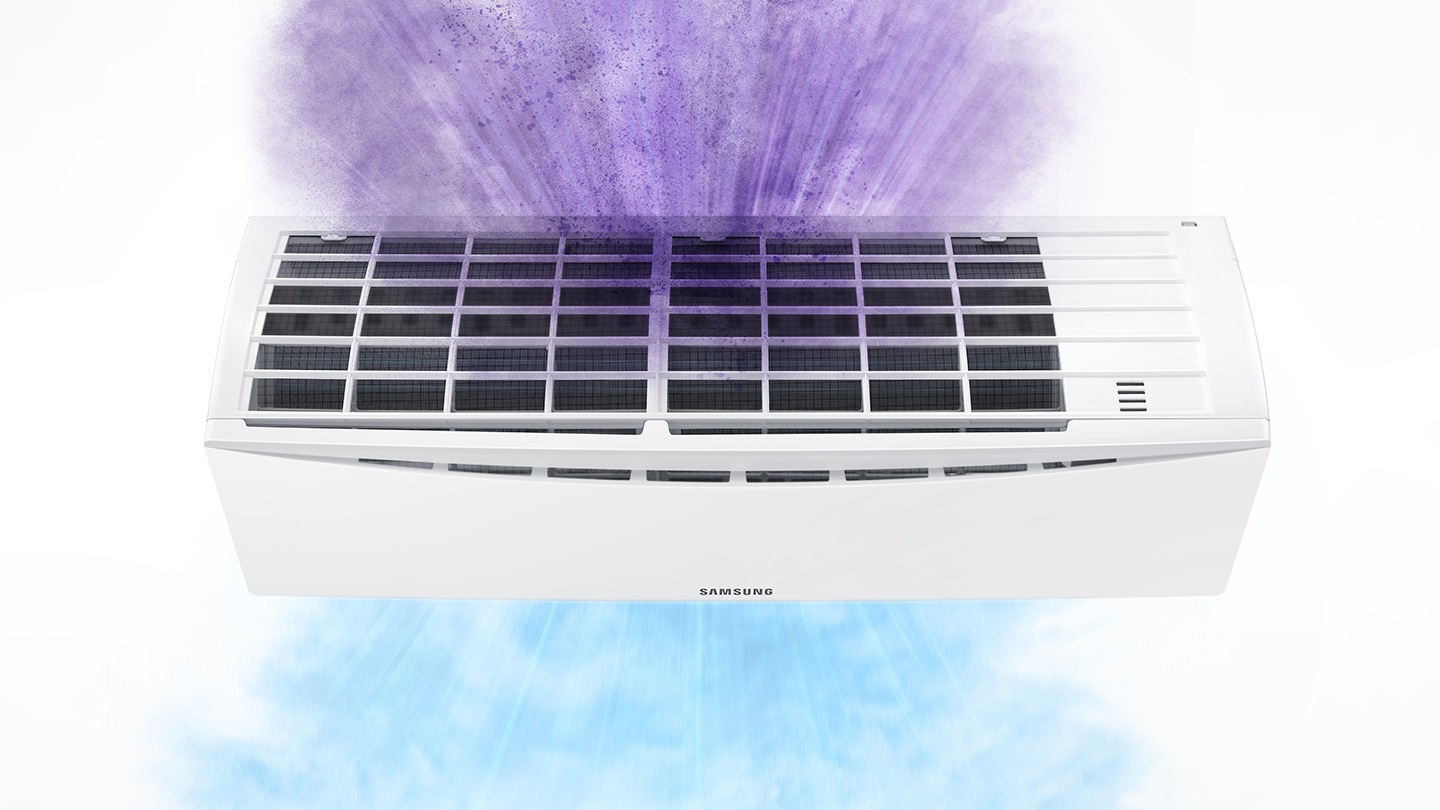

Breathe purer air

HD Filter

Make sure that the air you breathe is always clean and fresh. The HD Filter is really effective at capturing dust, airborne contaminants and allergens, such as pollen, mold spores and pet dander. And it’s also washable, so all you need to do is give it a quick rinse in water and then reuse it.

Enjoy a good sleep

Good Sleep

Enjoy a great night’s sleep – every night! Good Sleep mode automatically controls and fine-tunes the temperature to create the ideal conditions for each stage of the sleep cycle. So you gain precious minutes of sleep and feel fully refreshed. And it also uses less energy than normal cooling.

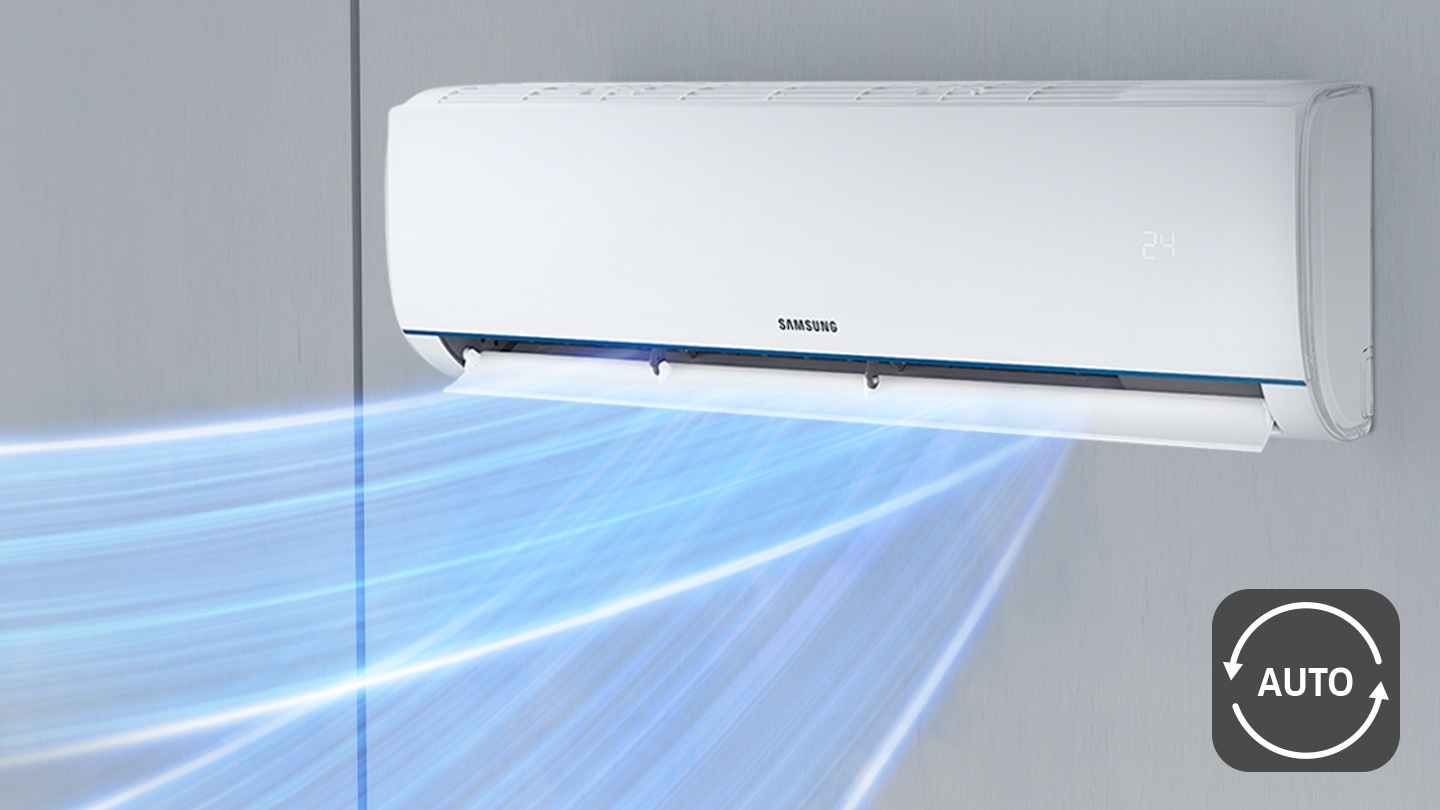

Cools every corner

2-Way Auto Swing

Create a comfortable environment with an even temperature in every corner. The 2-Way Auto Swing function automatically controls the air flow direction, so it’s quickly and evenly distributed across the room. It can expel cool or warm air further and in every direction to ensure maximum comfort.

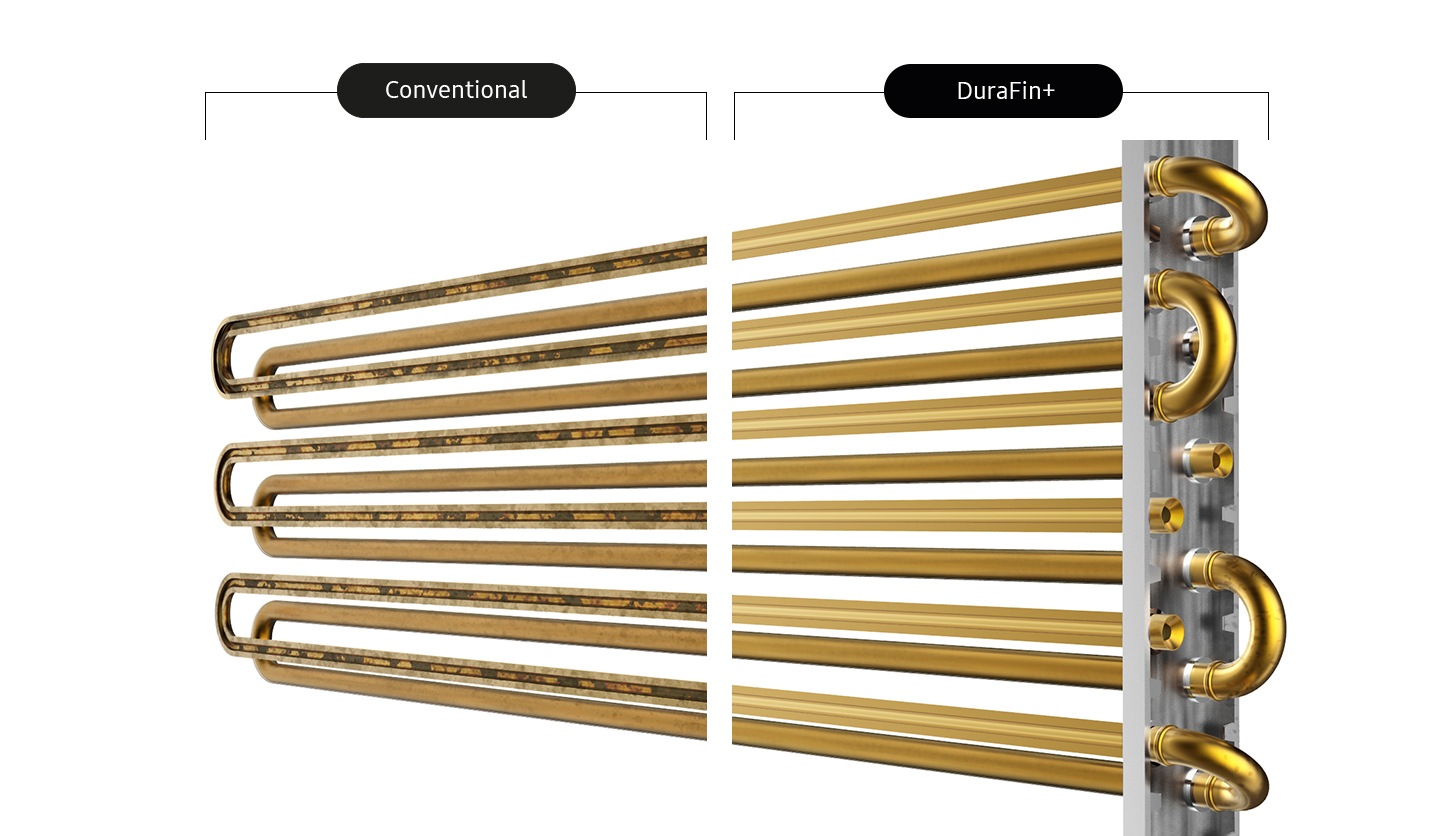

Long-lasting cooling

DuraFin+

Stay comfortably cool for much longer. The DuraFin+ is made of corrosion-resistant material to protect the condenser from rusting, which helps to maintain the optimal performance of the Heat Exchanger. Its superb corrosion-resistance was proven using the Salt Spray Test (SST) for 480 hours*.

* Tested on the AR12TXFCAWKNEU, AR13TYHYAWKNST model.

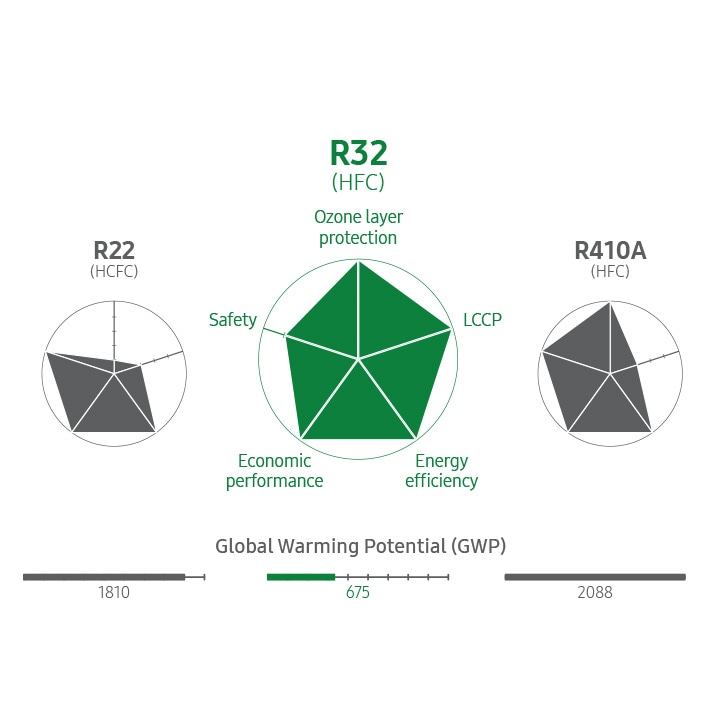

Environmentally friendly refrigerant

R32 Refrigerant

Protect the planet by reducing the impact of climate change. The air conditioner uses the next generation R32 refrigerant, which helps conserve the ozone layer and has a low impact on global warming compared to conventional R22 or R410A refrigerants. So it’s much more environmentally friendly*.

* Tested on R32 refrigerant compared with Samsung conventional refrigerants R410A and R22.

Specifications

Capacity

• Capacity (Cooling, Btu/hr): 9000 Btu/hr
• Capacity (Cooling, kW): 2.64 kW

Energy Efficiency

• SEER(W/W, Energy Label): 3.40
• SEER(Btu/hW): 11.60
• EER (Cooling, W/W): 3.20 W/W
• EER (Cooling, Btu/hW): 10.92 Btu/hW
• Energy Star Rating (Cooling): 3 Star

Noise Level

• Noise Level (Indoor, High/Low, dBA): 43/31 dBA
• Noise Level (Outdoor, High/Low, dBA): 52 dBA

Electrical Data

• Power Source (Φ/V/Hz): 1 / 220-240 / 50
• Power Consumption (Cooling, W): 824 W
• Operating Current (Cooling, A): 3.65 A

Physical specification

• Gross Dimension (Indoor, WxHxD): 870 x 365 x 270 mm
• Gross Dimension (Outdoor, WxHxD): 835 x 540 x 300 mm
• Net Dimension (Indoor, WxHxD): 805 x 285 x 194 mm
• Net Dimension (Outdoor, WxHxD): 720 x 495 x 270 mm
• Gross Weight (Indoor, kg): 11.1 kg
• Gross Weight (Outdoor, kg): 25.2 kg
• Net Weight (Indoor, kg): 9.1 kg
• Net Weight (Outdoor, kg): 23.1 kg
• Loading Quantity (20/40/40Hft without Pipe): 132/274/305

Technical Information

• Piping Length (Max, m): 20 m
• Piping Height (Max, m): 8 m
• SVC Valve (Liquid (ODxL)): 6.35
• SVC Valve (Gas (ODxL)): 9.52
• Moisture Removal (l/hr): 0.57 l/hr
• Air Circulation (Cooling, ㎥/min): 570 ㎥/min
• Refrigerant (Type): R32
• Low Ambient (Cooling, ℃): 18~43 ℃
• Outdoor Unit (Compressor Type): ROTARY

Air Flow

• Air Direction Control (Up/Down): Auto
• Air Direction Control (Left/Right): Manual
• Air Flow Control Step (Cool/Fan): 4 / 4 *New

Air Purification

• PM 1.0 Filter: No
• Tri Care Filter: No
• Easy Filter Plus (Anti-Bacteria): No
• Auto Clean (Self Cleaning): No

Convenience

• SmartThings: No
• AI Auto Cooling: No
• Motion Detect Sensor: No
• Freeze Wash: No
• Filter Cleaning Indicatior: No
• Indoor Temp. Display: Yes
• Display On/Off: Yes
• Beep On/Off: No
• 24-Hour Timer: Yes
• Auto Changeover: No
• Auto Restart: Yes

Operating Mode

• Auto Mode: Yes
• Fast Cool: Yes
• Good Sleep: Yes
• Dehumidification: Yes
• Fan Mode: Yes
• Quiet: No

Smart

• WiFi Embedded: No

App Connectivity

• SmartThings App Support: No
