SAMSUNG 43" Crystal UHD Signage QMC LH43QMCEPGCXXS

---

---

Specifications

LH43QMCEPGCXXS

• Diagonal Size: 43"
• Panel Type: IPS
• Resolution: 3,840 x 2,160
• Pixel Pitch (HxV): 0.245×0.245mm
• Brightness (Typ): 500 nit
• Contrast Ratio – 1,200:1
• Viewing Angle (H/V): 178/178
• Response Time: 8ms
• Color Gamut: 72% (NTSC)
• Glass Haze: 25%
• H-Scanning Frequency: 30~81kHz
• Maximum Pixel Frequency: 594MHz
• V-Scanning Frequency: 48~75Hz
• Contrast Ratio (Dynamic): Mega
• Operation Time Support: 24/7

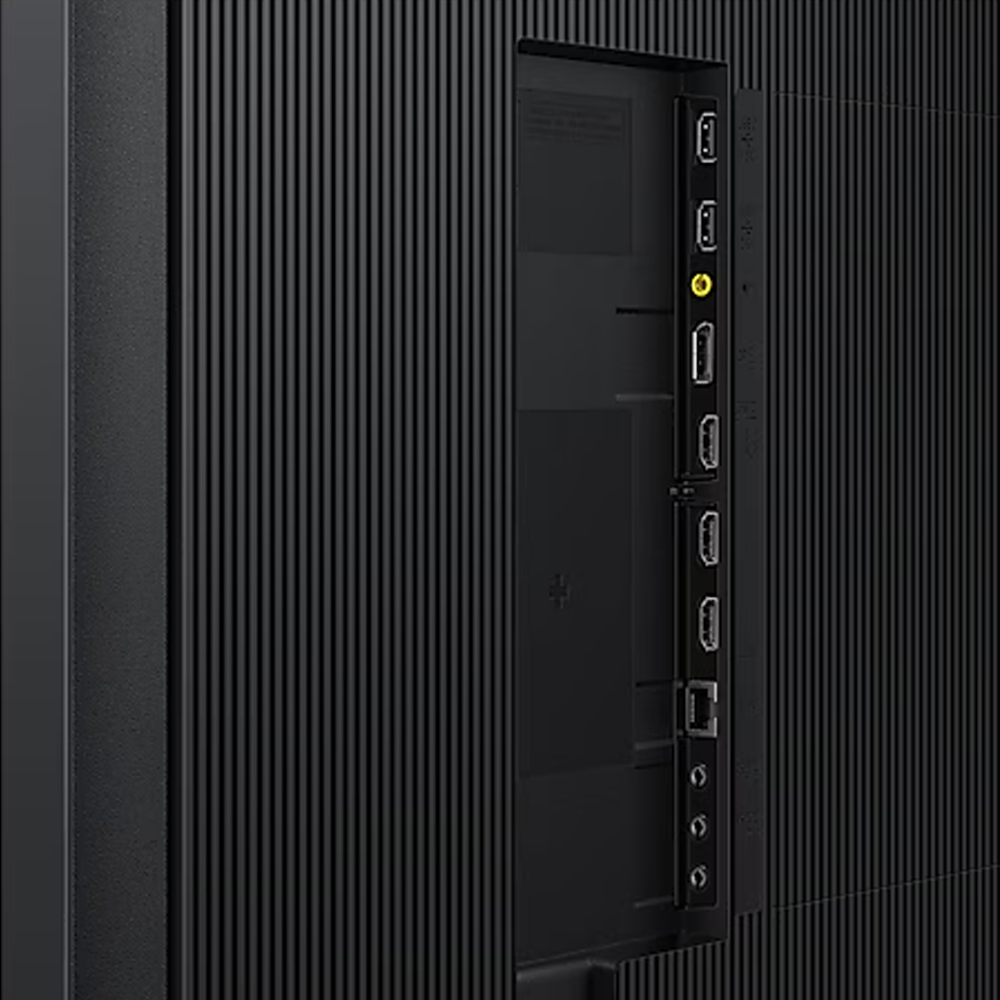

• HDMI In: 3
• DP In: 1
• Version of HDMI: 2
• Version of DP: 1.2
• Version of HDCP: 2.2
• USB: 2
• IR In: Yes
• Audio In: No
• Audio Out: Stereo Mini Jack
• RS232 In: Yes
• RS232 Out: Yes
• RJ45 In: Yes
• WiFi: Yes
• Bluetooth: Yes

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (On Mode): 121 W
• Power Consumption (Sleep Mode): 0.5 W

• Set Dimension (WxHxD): 969.5 x 557.8 x 28.5 mm
• Package Dimension (WxHxD): 1093 x 667 x 126 mm

• Set Weight: 8.8 kg
• Package Weight: 11.3 kg

• Temperature: 0℃~ 40℃
• Humidity: 10 ~ 80%, non-condensing

• VESA Mount: 200 x 200 mm
• Bezel Width: 11.5mm (even)
• Bezel Color: Charcoal Black
• Frame Material: Non-Glossy

• Mount: WMN-B50SC
• Stand: STN-L4355C

• OS Version: Tizen 7.0
• Flash Memory Size: 16GB

• EMC: Class B
• Safety: 60950-1, 62368-1
