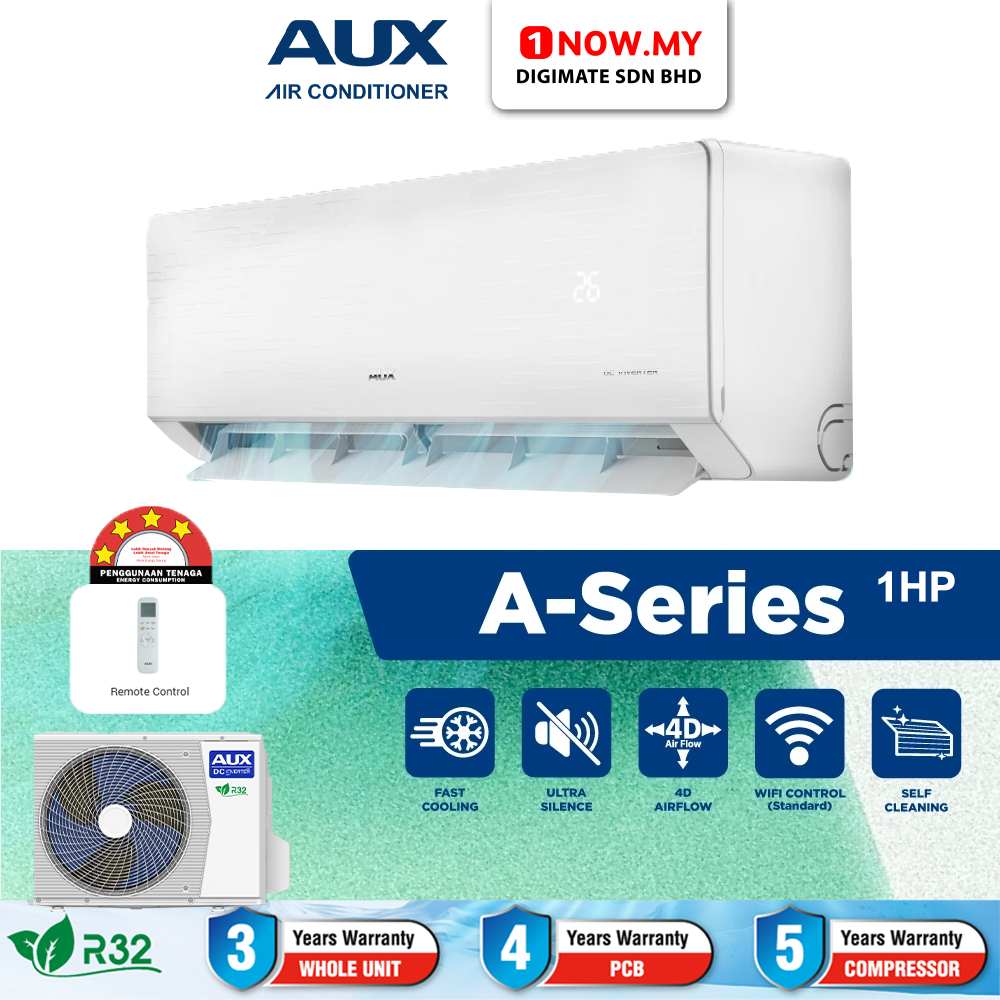

AUX 1HP A-Series Inverter Air Conditioner ASW-09MAR3DI | 4 Star Energy Efficient





Specifications
ASW-09MAR3DI / AS-09MAR3DI
- Cooling Capacity: 10,000 BTU/h (2,050 – 13,600)
- Power Consumption: 960 W (Min–Max: 100 – 1,200 W)
- Running Current: 4.4 A (0.56 – 5.32 A)
- CSPF (Cooling Seasonal Performance Factor): 4.81 Wh/Wh
- Horsepower: 1.0 HP
- Energy Efficiency: 4-Star Energy Rating (Malaysia)
- Power Supply: 220–240V / 50Hz / Single Phase
- Thermostat Type: Wireless Remote Control (USB Wi-Fi, optional)
- Indoor Air Flow (H): 600 m³/h (353 cfm)
- Indoor Sound Level (H/M/L): 38 / 35 / 32 dB(A)
- Dimensions (W × D × H): 768 × 200 × 299 mm
- Weight: 7.5 kg
- Outdoor Sound Level: 52 dB(A)
- Dimensions (W × D × H): 650 × 233 × 455 mm
- Refrigerant Charge: R32 / 360 g
- Weight: 16 kg
- Liquid / Gas Pipe Size: Ø6.35 / Ø9.52 mm (1/4" / 3/8")
- Max. Piping Length: 25 m
- Max. Height Difference: 10 m
- Indoor–Outdoor Connection Wiring: 4 × 1.0 mm²
- Power Supply Wiring: 3 × 1.0 mm²
