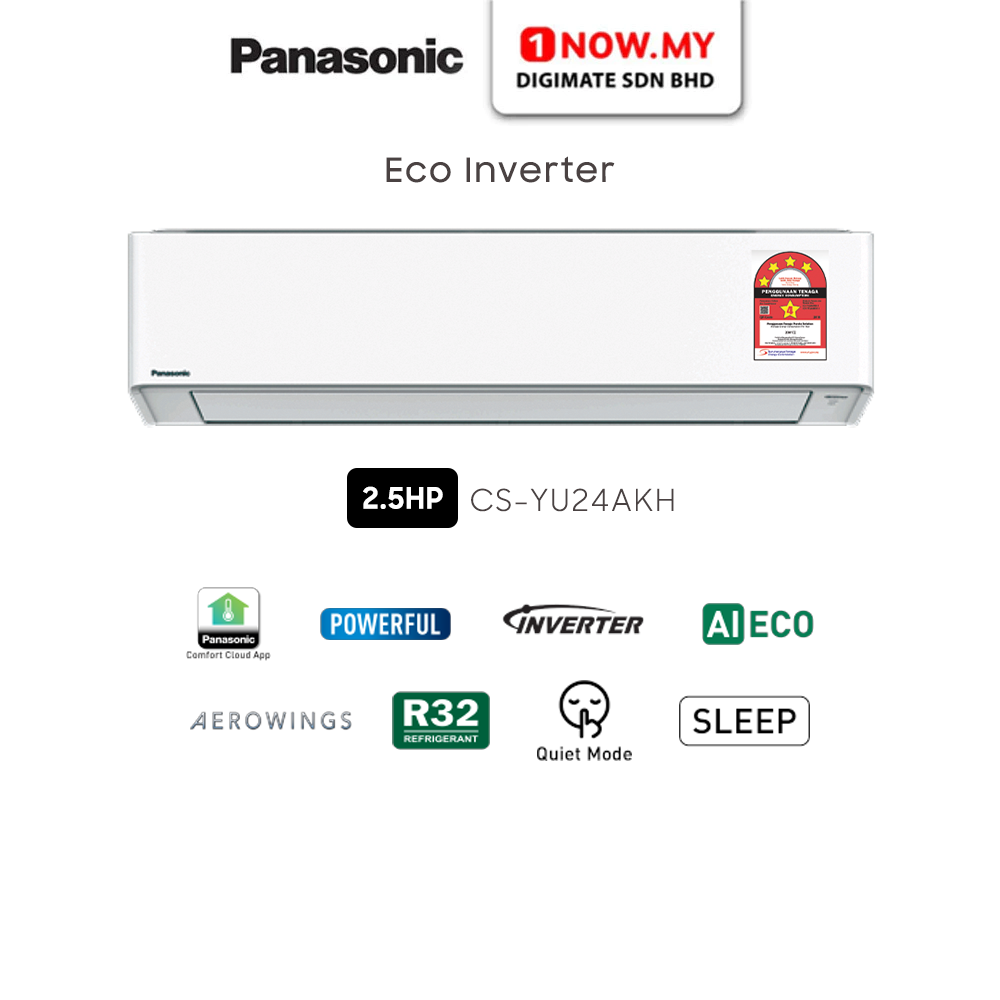

PANASONIC 2.5HP Eco Inverter Air Conditioner YU Series CS-YU24AKH | YU-AKH Energy Saving Cooling

---

---

Specifications

• Horsepower: 2.5HP
• Indoor Unit: CS-YU24AKH
• Outdoor Unit: CU-YU24AKH
• Cooling Capacity: 6.80 kw ; 23200 Btu/h
• EER (min-max): 11.90 Btu/hW ; 3.49 W/W
• Voltage(V): 230V
• Current(A): 8.6 A
• Power Input (min-max)(W): 1950 (350-2100) W
• Moisture Removal (L/h): 3.9 L/h
• Moisture Removal (Pt/h) : 8.2 Pt/h

Indoor Unit

• Air Circulation: 19.9 m3/min (365 ft3/min)
• Unit Noise Level (H/L/Q-Lo): 45/34/28 dB(A)
• Unit Dimensions (H x W x D)(mm): 295 x 1060 x 249 mm
• Unit Weight: 12kg

Outdoor Unit

• Air Circulation: 34.9 m3/min (940 ft3/min)
• Unit Noise Level (H): 53 dB(A)
• Unit Dimensions (H x W x D)(mm): 619 x 824 x 299 mm
• Unit Weight: 30kg

Refrigerant Pipe Diameter

• Liquid Side:  6.35 mm (1/4 inch)
• Gas Side: 12.70 mm (3/8 inch)

Pipe Extension

• Chargeless Pipe Length: 10m
• Maximum Pipe Length: 30m
• Maximum Elevation Length: 20m
• Additional Refrigerant Gas*: 15 g/m

Power Supply

• Indoor
