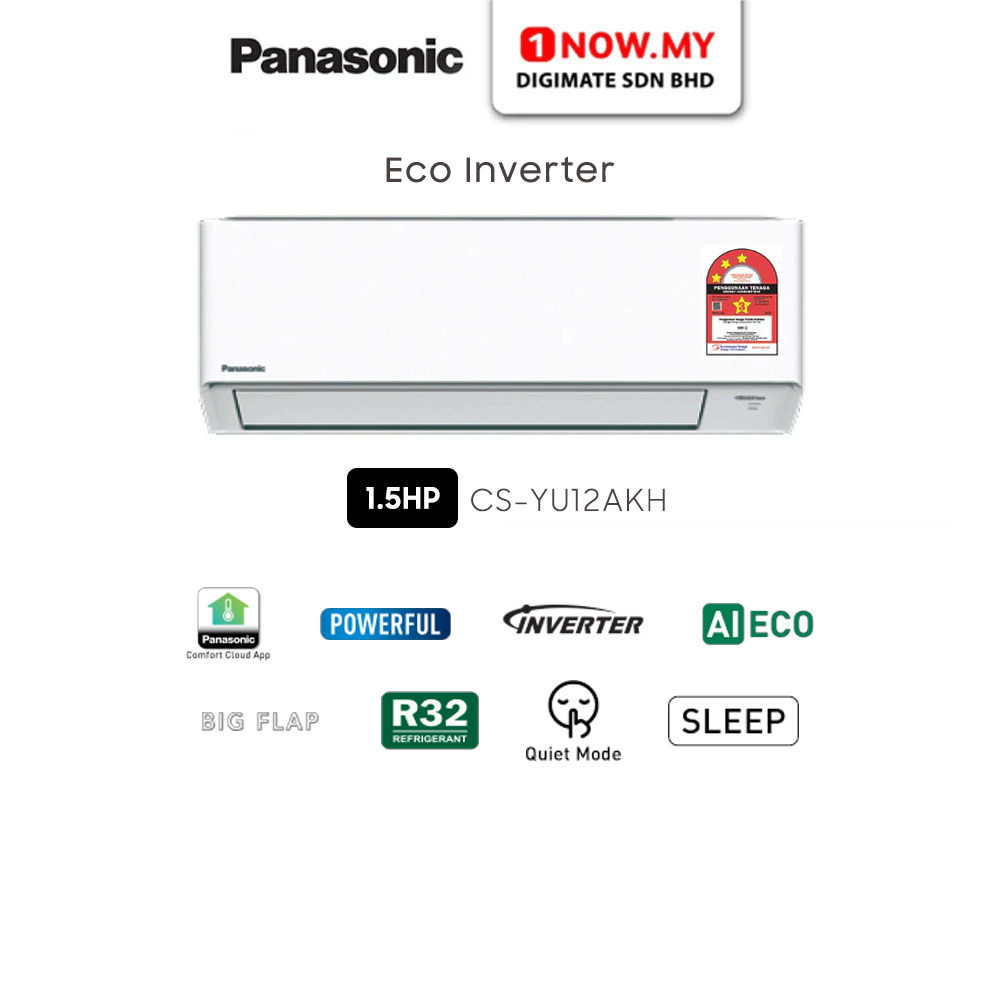

PANASONIC 1.5HP Eco Inverter Air Conditioner YU Series CS-YU12AKH| YU-AKH Energy Saving Cooling
Specifications
- Horsepower: 1.5HP
- Indoor Unit: CS-YU12AKH
- Outdoor Unit: CU-YU12AKH
- Cooling Capacity: 3.52 kw ; 12000 Btu/h
- EER (min-max): 10.00 Btu/hW ; 2.93 W/W
- Voltage(V): 230V
- Current(A): 5.7 A
- Power Input (min-max)(W): 1200 (290-1260) W
- Moisture Removal (L/h): 2.0 L/h
- Moisture Removal (Pt/h) : 4.2 Pt/h
- Air Circulation: 11 m3/min (390 ft3/min)
- Unit Noise Level (H/L/Q-Lo): 40/28/21 dB(A)
- Unit Dimensions (H x W x D)(mm): 290 x 765 x 214 mm
- Packaging Dimensions (H x W x D)(mm): 260 x 847 x 364 mm
- Unit Weight: 8kg
-
Outdoor Unit
- Air Circulation: 24.3 m3/min (860 ft3/min)
- Unit Noise Level (H): 51 dB(A)
- Unit Dimensions (H x W x D)(mm): 511 x 650 x 230 mm
- Packaging Dimensions (H x W x D)(mm): 582 x 793 x 356 mm
- Unit Weight: 19kg
Refrigerant Pipe Diameter
- Liquid Side: 6.35 mm (1/4 inch)
- Gas Side: 9.52 mm (3/8 inch)
Pipe Extension
- Chargeless Pipe Length: 7.5m
- Maximum Pipe Length: 20m
- Maximum Elevation Length: 15m
- Additional Refrigerant Gas*: 10 g/m
Power Supply
- Indoor
