AUX 1HP Inverter M-Series Air Conditioner ASW-09MER3DI | Fast Cooling Wifi 5 Star Energy Saving

• M-Series Aircon Catalogue PDF (Source: AUX)

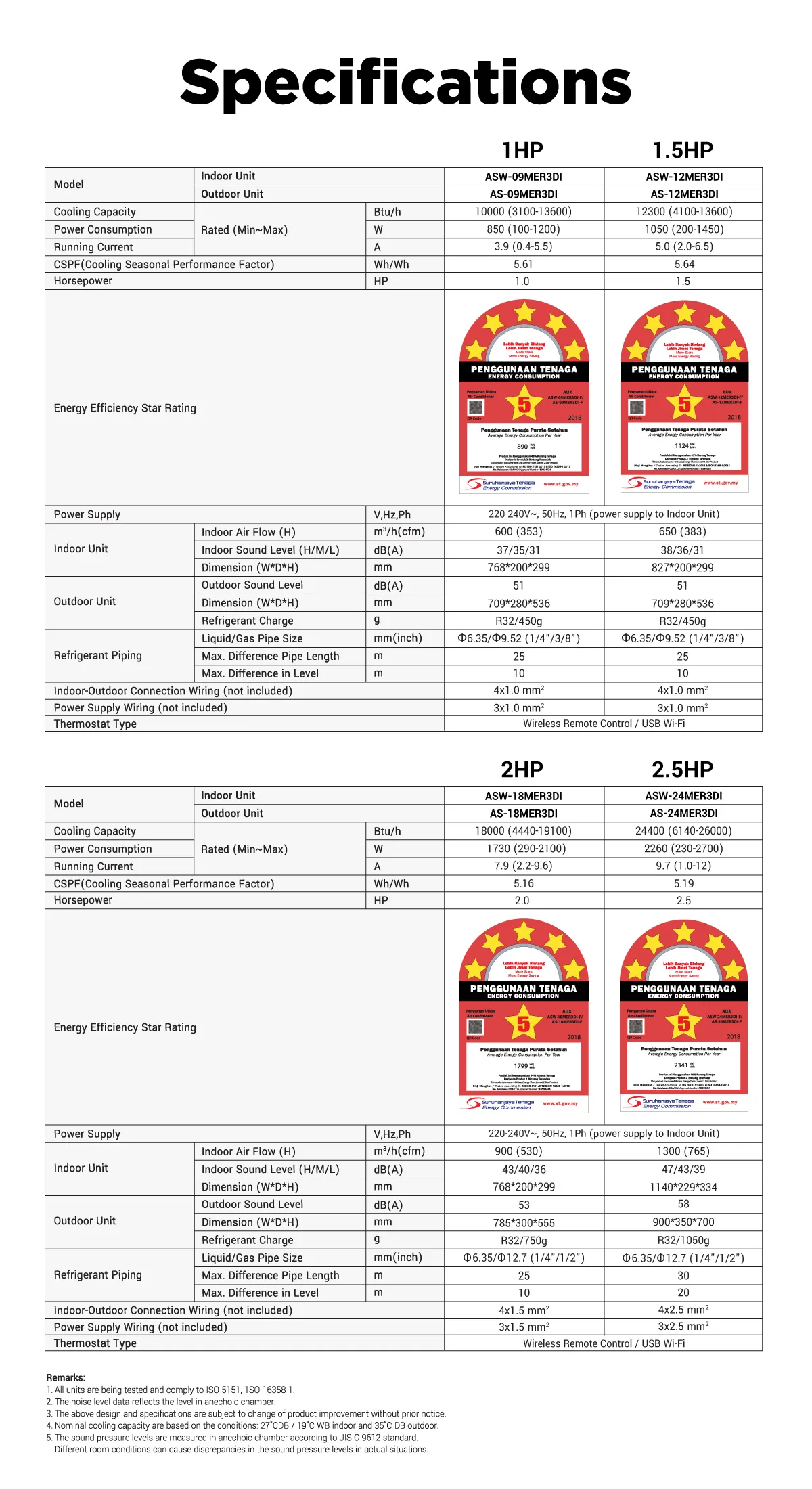

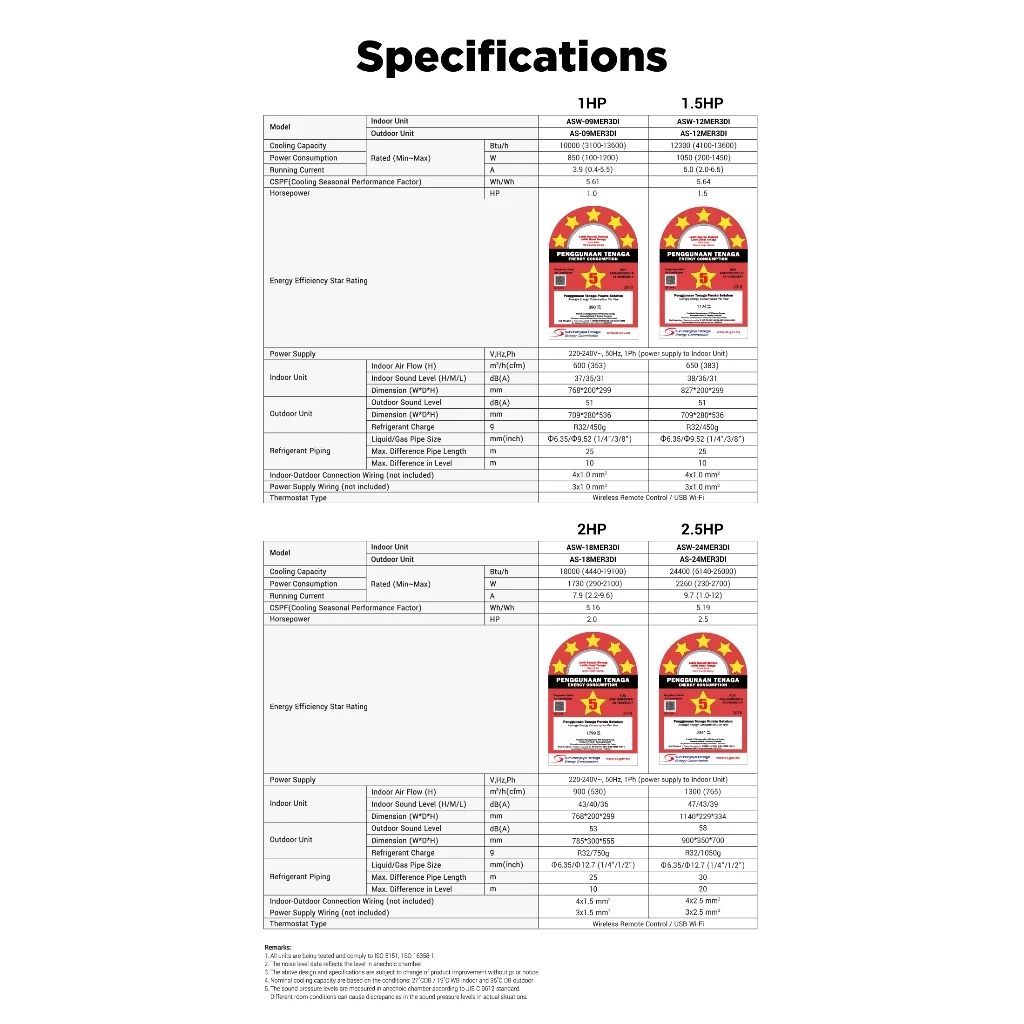

Specifications

1HP (ASW-09MER3DI)

Cooling Performance

• Capacity: 10,000 Btu/h (3,100–13,600)
• Power Consumption: 850W (100–1200W)
• Running Current: 3.9A (0.4–5.5A)
• CSPF (Cooling Seasonal Performance Factor): 5.61 Wh/Wh
• Energy Efficiency Star Rating: ⭐⭐⭐⭐⭐ (5-Star)

Power Supply

• Voltage / Frequency / Phase: 220-240V~, 50Hz, 1Ph (power supply to Indoor Unit)

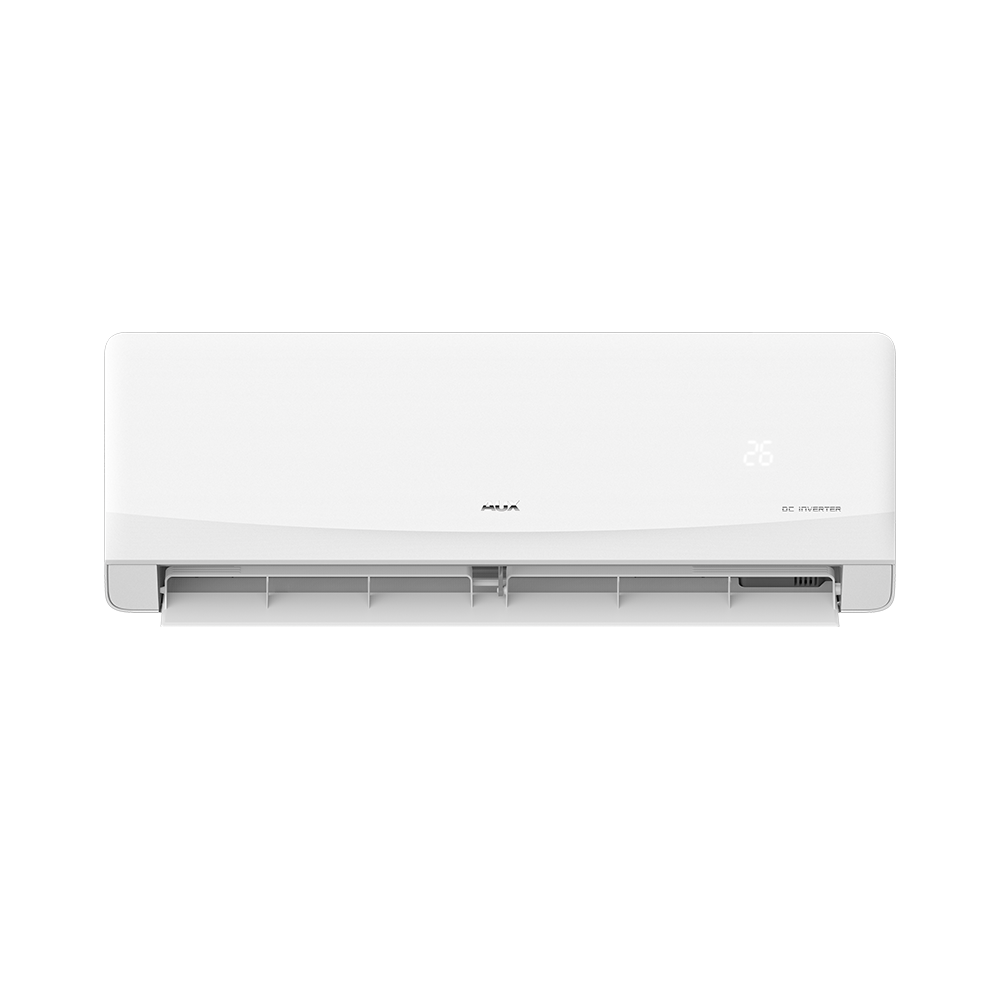

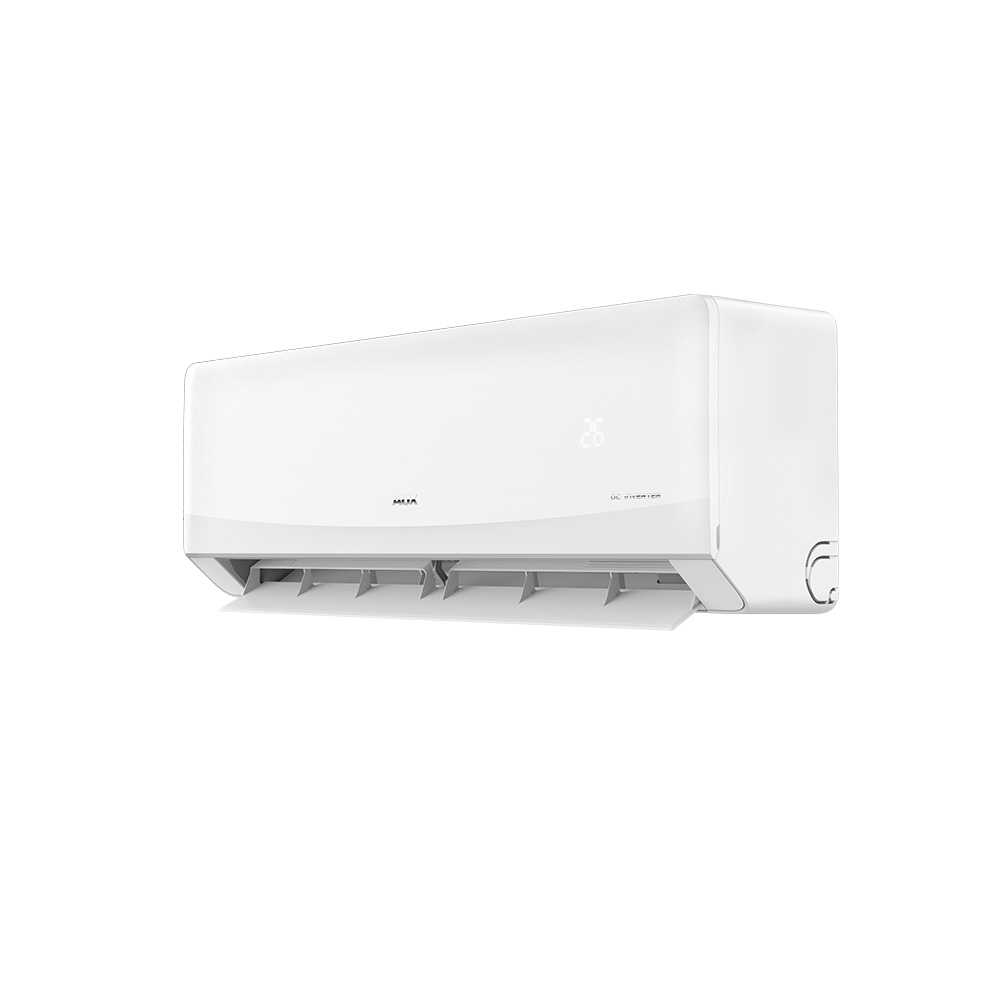

Indoor Unit

• Air Flow (H): 600 m³/h (353 cfm)
• Sound Level (H/M/L): 37 / 35 / 31 dB(A)
• Dimensions (W×D×H): 768 × 200 × 299 mm

Outdoor Unit

• Sound Level: 51 dB(A)
• Dimensions (W×D×H): 709 × 280 × 536 mm
• Refrigerant Charge: R32 / 450 g

Refrigerant Piping

• Liquid/Gas Pipe Size: Φ6.35 / Φ9.52 mm (1/4” / 3/8”)
• Max. Pipe Length: 25 m
• Max. Height Difference: 10 m

Wiring

• Indoor–Outdoor Connection: 4 × 1.0 mm²
• Power Supply Wiring (not included): 3 × 1.0 mm²

Thermostat Type

• Wireless Remote Control / USB WI-FI
