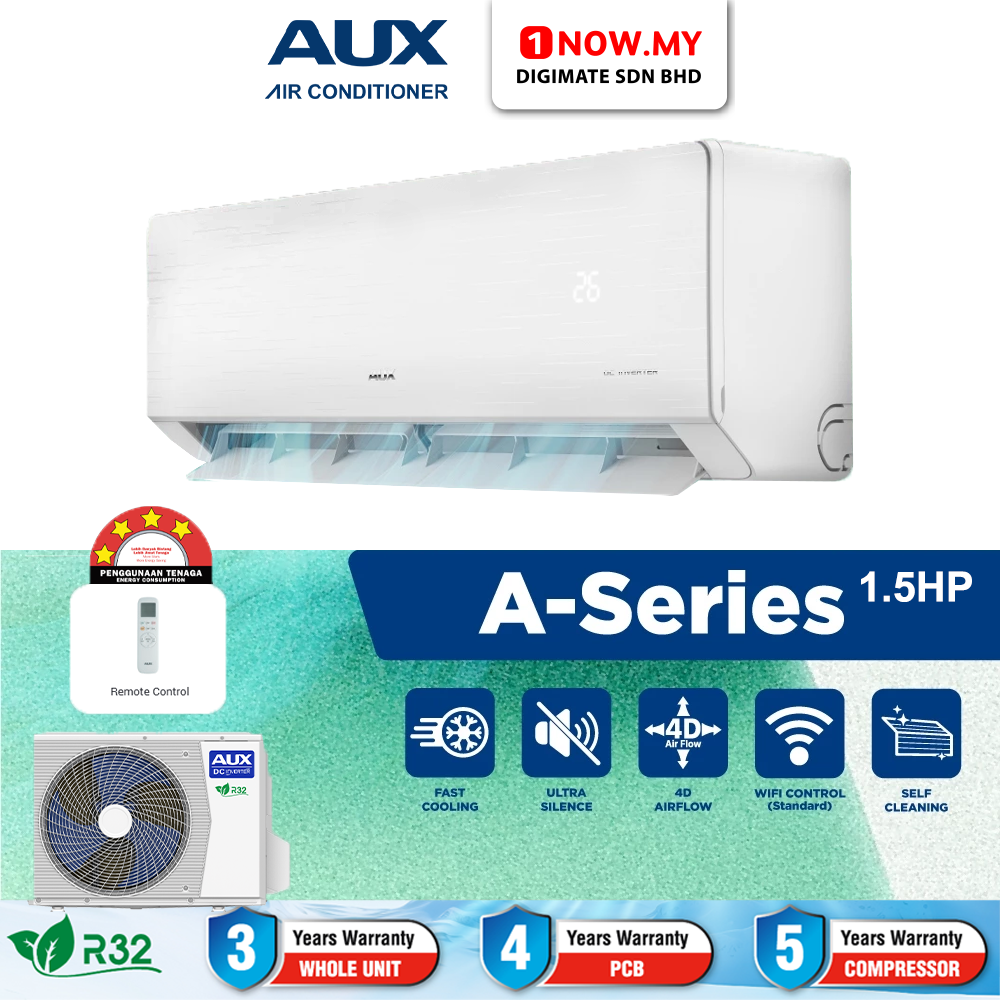

AUX 1.5HP A-Series Inverter Air Conditioner ASW-12MAR3DI | 4 Star Energy Efficient

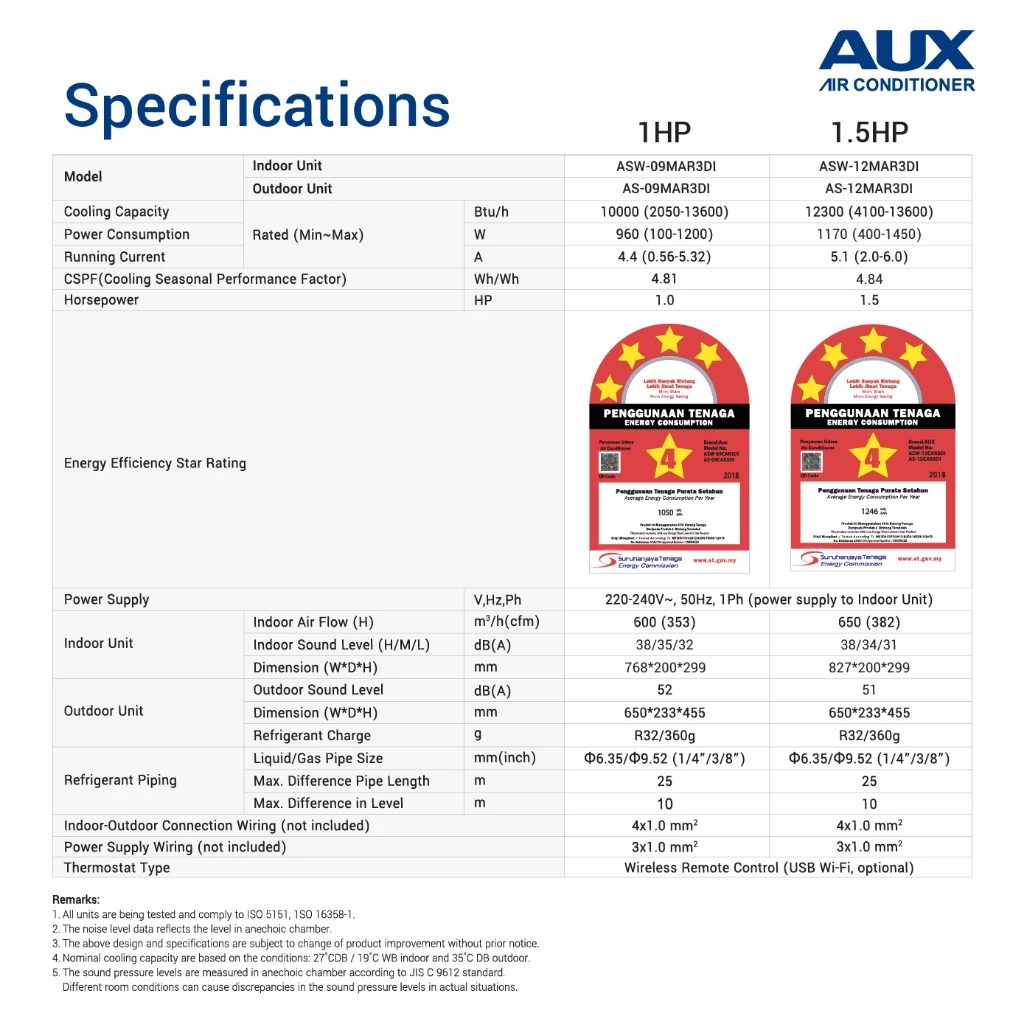

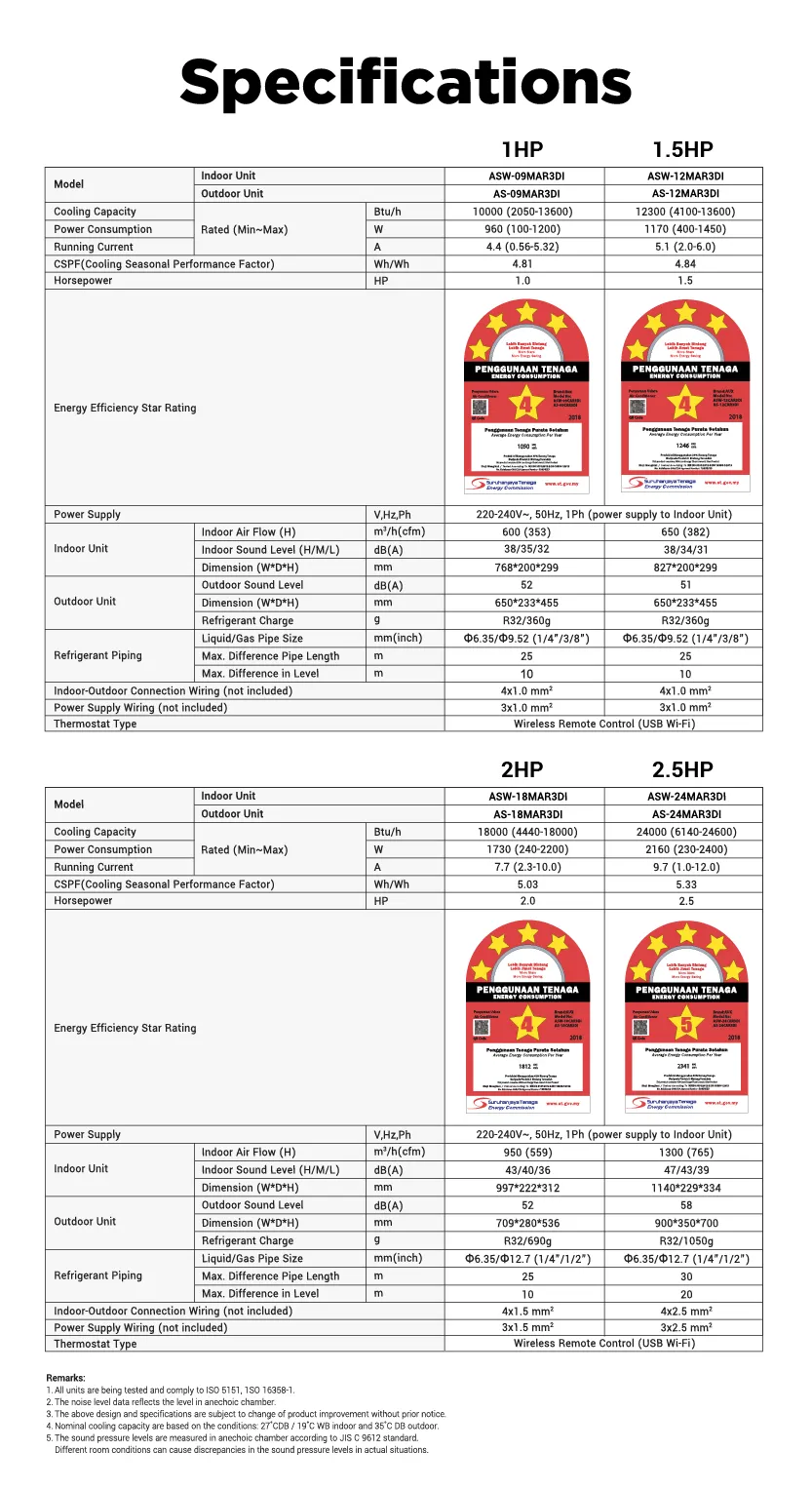

Specifications
ASW-12MAR3DI / AS-12MAR3DI
- Cooling Capacity: 12,300 BTU/h (4,100 – 13,600)
- Power Consumption: 1170 W (Min–Max: 400 – 1,450 W)
- Running Current: 5.1 A (2.00 – 6.00 A)
- CSPF (Cooling Seasonal Performance Factor): 4.84 Wh/Wh
- Horsepower: 1.5 HP
- Energy Efficiency: 4-Star Energy Rating (Malaysia)
- Power Supply: 220–240V / 50Hz / Single Phase
- Thermostat Type: Wireless Remote Control (USB Wi-Fi, optional)
Indoor Unit
- Indoor Air Flow (H): 650 m³/h (382 cfm)
- Indoor Sound Level (H/M/L): 38 / 34 / 31 dB(A)
- Dimensions (W × D × H): 827 × 200 × 299 mm
- Weight: 8 kg
Outdoor Unit
- Outdoor Sound Level: 51 dB(A)
- Dimensions (W × D × H): 650 × 233 × 455 mm
- Refrigerant Charge: R32 / 360 g
- Weight: 16 kg
Refrigerant Piping
- Liquid / Gas Pipe Size: Ø6.35 / Ø9.52 mm (1/4" / 3/8")
- Max. Piping Length: 25 m
- Max. Height Difference: 10 m
Wiring (Not Included)
- Indoor–Outdoor Connection Wiring: 4 × 1.0 mm²
- Power Supply Wiring: 3 × 1.0 mm²
