INNOVATIVE FEATURES

Your Reliable Hot Water Solution

Centralised Multi-Point Storage Water Heater System With Enhanced Dry-Burn Protection

Introducing the latest version of Centralised Multi-Point Storage Water Heater with Enhanced Dry-Burn Protection that auto-trips to ensure longer durability. Enjoy a more luxurious hot shower with personalised accessories with just a connection to the mixer tap system.

Provides For 2 Standing Showers or 1 Rainshower 8”

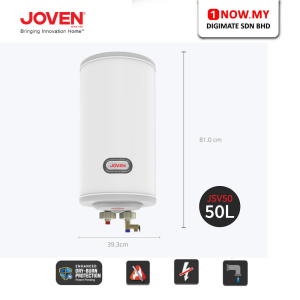

JSV 50

The capacity 50L or 11.0 Imp. Gallons at 70°C can provide up to 183.5L of warm water at 38°C according to inlet temperature of 26°C. Suitabe for 2 standing showers or 1 rainshower 8”.

Adjustable Temperature Control Knob

Adjust the temperature from Low, Med to High (For JSV models only).

Longer-Lasting Hot Water

• Heat stays longer with the high-density CFC Free Polyurethane Insulation Foam 2.5 lb/ft³ or 40 kg/m³ which protects against heat loss when temperature has reached maximum cut-off point of 70°C.
• Heat stays up to 18 hours or longer before the temperature drops to 55°C for heating to reactivate.
• Saves energy with less heating frequency.

Durable

Built from high quality materials that withstand rust and rupture, thus ensuring durability and stellar performance.

• High Quality Incoloy Heating Element
• SUS304 Stainless Steel Tank
• Electro-Galvanized Steel With Epoxy Coated Enclosure
• High Quality Engineering Plastic
• Rust Free Materials

SAFETY FEATURES

ACCESSORIES

Wall Bracket For Easy Mounting (Patent Pending)

A wall bracket enables easy mounting of the vertical storage water heater.

1. Mark the location of the wall bracket on a solid surface.
2. Drill the hole and secure the storage tank with the mounting bolt.

TECHNICAL SPECIFICATION

Specifications

Electrical Loading
3.0kw ; 15.0A ; 240 Va.c. ; 50 Hz

Tank Capacity
50 Litres (11.0 Imp. Gallons)

Time Taken To Heat Max 70°C
45 Mins ( 1st Heat Up From Cold Water )
22.5 Mins ( Subsequent Heat Up )

Recommended Water Pressure
1 – 4 Bar

Dimensions (W * H * L)
372 x 810 x 393 mm

Approx. Weight
Empty : 17 kg ; Full : 67 kg
