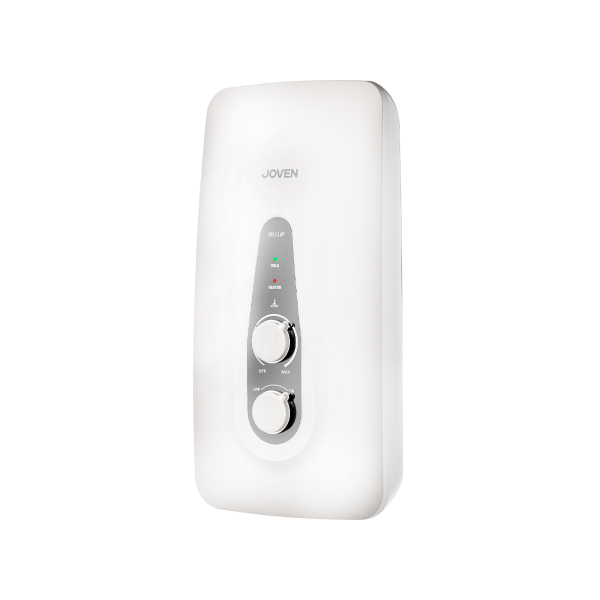

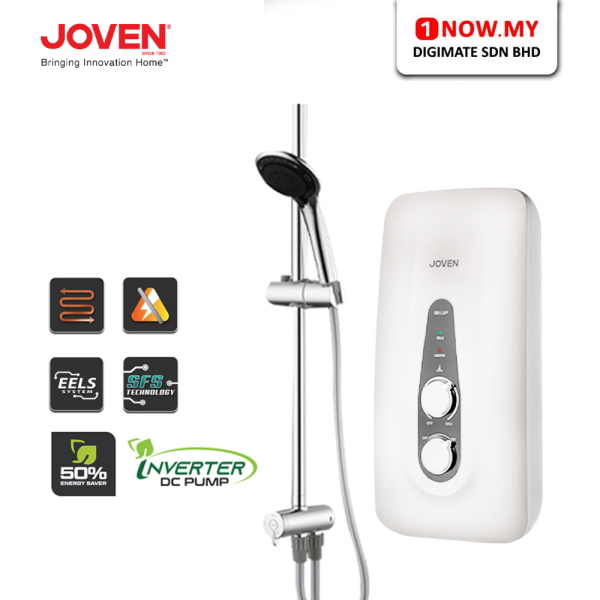

JOVEN Inverter Water Heater SB11iP | White Energy Saving Silent Pump NO Rain Shower

---

Accessories

• Rotatable Rainshower 8” with 3.8” Showerhead (Pat.Pending)
• 5 Spray Showerhead
• Slim and Chromed Slider Bar with Shower Diverter
• ¼ Turn Valve for turn On/Off Shower
• Durable, Safe and Hygienic Triple Reinforced Non-Conductive Hose

Safety

• Thermostat with Safety Cut-Out
• Single Pole EELS System with 10mA sensitivity
• Splash Proof IP25 Casing
• SVF Valve With Built-In Filter



INNOVATIVE FEATURES

Elegantly Designed with
Classy Finish

The SB11 Series is elegantly designed with sleek and stylish casing. Now you can have elegance and performance all in one package.

Energy Saving &
SilentPlus Technology

Quiet Operation (Below 35dB)

The Inverter DC Pump Technology gives you 50% energy savings compared to the conventional booster pump and is silent below 35dB giving you the peaceful shower you desire.

Adjust to the Temperature You Desire with Extra Power On/Off Knob

Get Your Ideal Shower Temperature

Turn the knob to your desired temperature setting with our Stepless Electronic Power Control System for smooth temperature settings. The Extra Power On/Off provides extra protection when is not in use.

Premium & Long Lasting Colour Finish

Double Layer 2K Spray Paint Finish

For that long lasting colour finish that lasts for years to come, our colour models come with double layer 2K Spray paint finish.
(Colour models only)

SAFETY FEATURES

High Protection Against
Water Splash

Comply with IEC 60529 (IP25) Standard

The casing is sealed to prevent water from accessing the internal parts in-line with splash proof standard.

The Safest Protection
Against Current Leakage

Single Pole EELS | <10mA Standard

Your safety are assured with the industry’s safest Single Pole EELS which is 10mA sensitivity. Any current leakage above 10mA, the EELS will cut-out both live & neutral line at high speed.

Surge Protector

Comply with IEC 61000-4-5 (Level 3)

Protection against power surge which disconnects instantly.

Anti-Scalding
Technology

This Anti-Scalding device will prevent against scalding.

Thermal Cut-Out
Technology

This safety device will interrupt power supply in the event of overheating and prevent fire hazard.

Durable Copper
Heating Element

Reliable, high performance and efficient copper heating element for constant hot water.

Nylon Fibre Tank With
Swirl Technology

Swirl technology minimises thermal shock and prevent scalding. Nylon Fibre tank insulated structure ensures better heat insulation and prevent electric shock.

SFS Technology

The Safety Flow Sensor (SFS) ensures sufficient flow of water before the heater activates to prevent scalding.

Triple Reinforced &
Insulated Hose

5” length 3 Layer Reinforced and Insulated Hose for longer reliability and non-conductive material for better heat insulation and prevent electric shock.

SVF Valve with Built-In Filter

Turn On/Off the water with the 1/4 turn pattern pending SVF Valve with water saving feature and easy clean with built-in filter.

ACCESSORIES

Rotatable 8″ RainShower Bar Set (Pat.Pending)

With Triple Reinforced Non-Conductive Hose

Enjoy showering with the 8” Rotatable Rainshower & diverter valve that switches between normal and rainshower mode. The hose material is reinforced with triple layer for longer durability, safety & hygiene with 5 feet length for your comfort.

Larger 5 Spray Showerhead

Shower in extra comfort with the 3.8” showerhead and 5 Spray Options.

Instruction Manual
Local language included

Warranty Card
Local product warranty included

Screw and Wall Plug
5 sets to mount unit on the wall

Washer
2 pieces to be placed at inlet and outlet as water tight seal

Filter Cup
1 piece to be placed at hand shower entry as water tight seal and filter action

---

Specifications

Electrical Loading
2.2-5.5kw ； 220-240Va.c. ； 50/60Hz

Min. Water Pressure
10kPa / 1.45psi / 0.1 bar

Max. Water Pressure
380kPa / 55psi / 3.8 bar

Min. Water Flow
2 Litres per minute

Max. Water Flow
8 Litres per minute

Water Temp. Control
Stepless Electronic Power Control

Inlet/Outlet Connection
Ø15mm (1/2″ BSP) – Single Point System

Dimensions
213 x 405 x 81 mm

Weight
4.7kg
