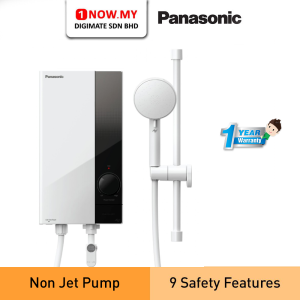

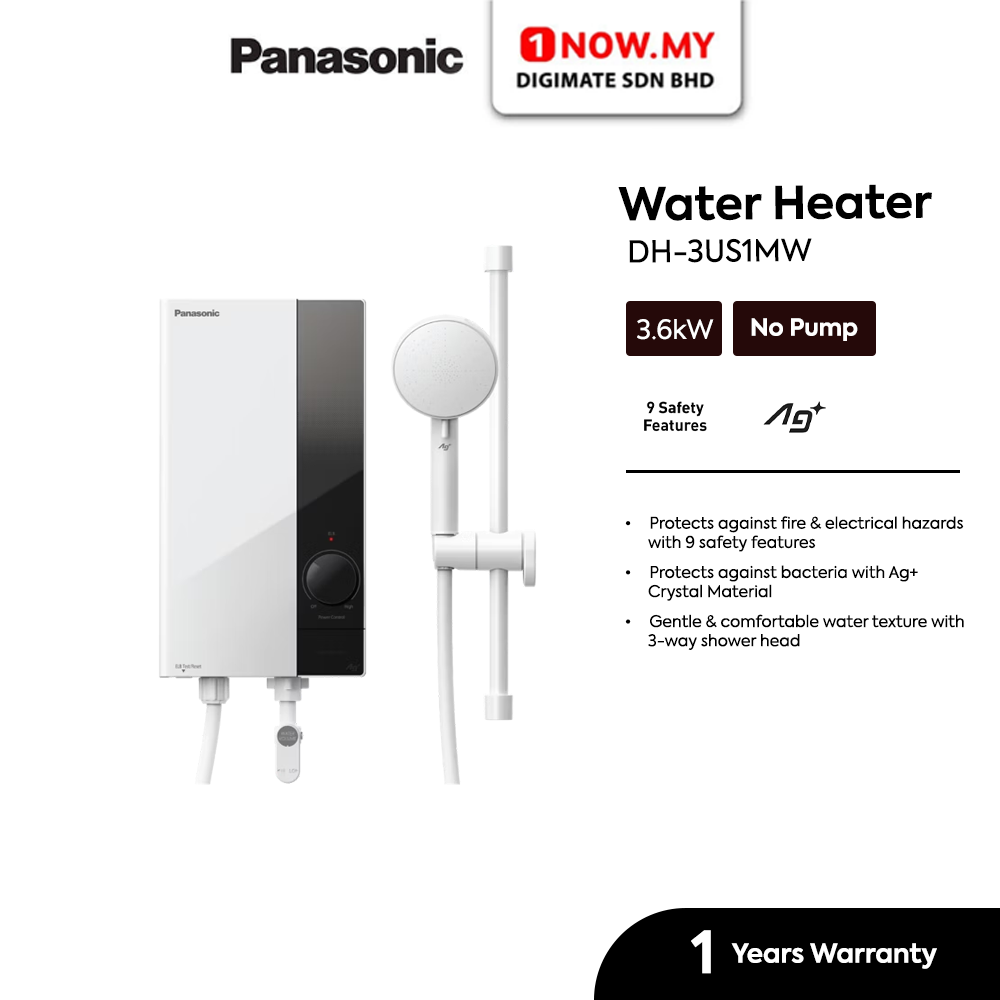

PANASONIC (Analog) Water Heater DH-3US1MW | U Series Non Jet Pump

Specifications

Basic Specification

• PUMP/ NO PUMP: Non Pump
• TYPE: Non LCD type (Analogue)
• Power Supply: 240 V, 50 Hz
• Rated Power: 3.6 kW
• Water Pressure: Minimum: 0.10 kgf/cm² / Maximum: 3.87 kgf/cm²
• Dimensions (h x w x d) mm: 385 x 210 x 78
• Main Unit Weight (kg): 1.5 kg
• Body Colour: Skin Silver
• Standard Regulation: SURUHANJAYA TENAGA (Safety)
• ELB indication method: Red ELB light
• Water Stop System: One Push On/Off Switch

9 Safety Features

• 1. Water Splash Prood Case Cover: IEC 60529 (IP2X)
• 2. Durable Copper Heater Uni
• 3. On Push On/Off Switch
• 4. Insulated Structure: IEC 60529 (IP2X)
• 5. Built-in Earth Leakage Breaker (ELB)
• 6. Water Flow Sensor
• 7. Non-flammable Material Cover
• 8. Manual Reset Thermostat
• 9. Auto Thermal Cut-off: 55ºC

Comfort Features

• U-memory: N/A
• U-mode: N/A
• On/Off Pump function: N/A
• Ag+ Antibacterial material: Yes
• 3-way Shower: Normal, Wide, Spot
