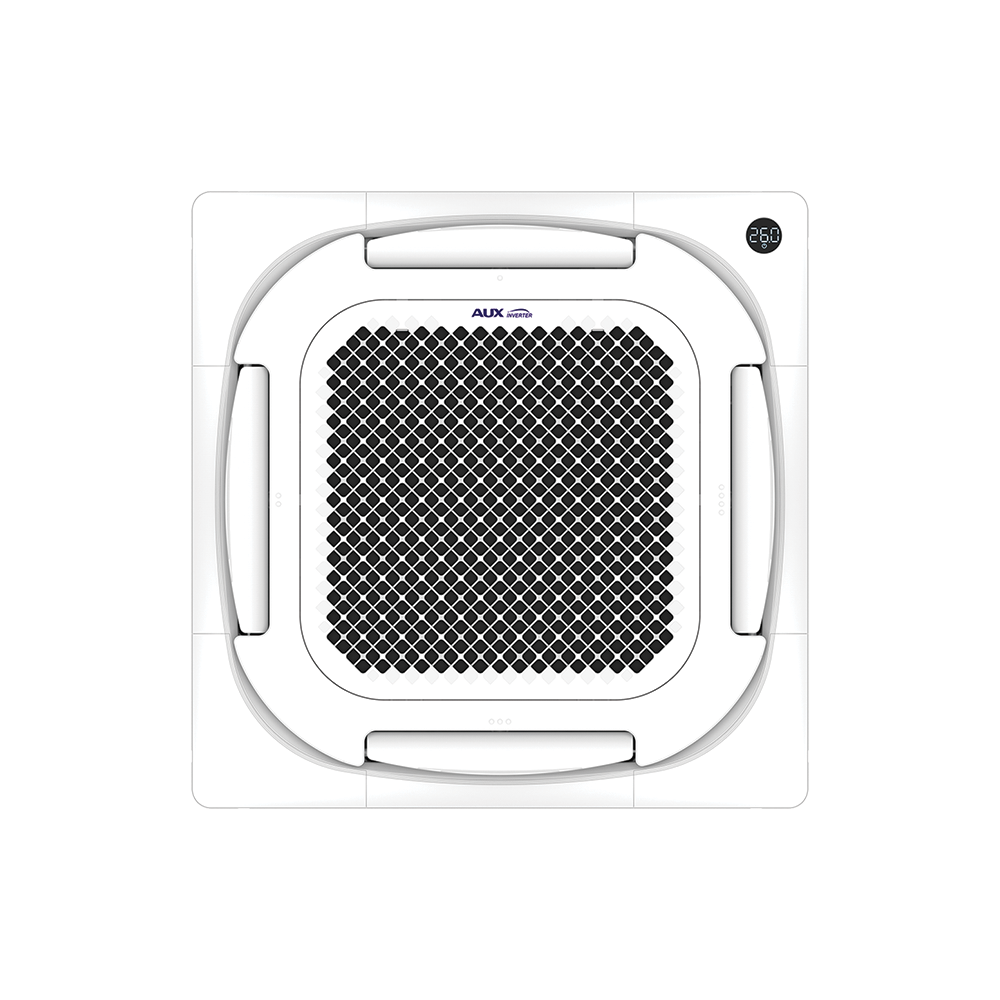

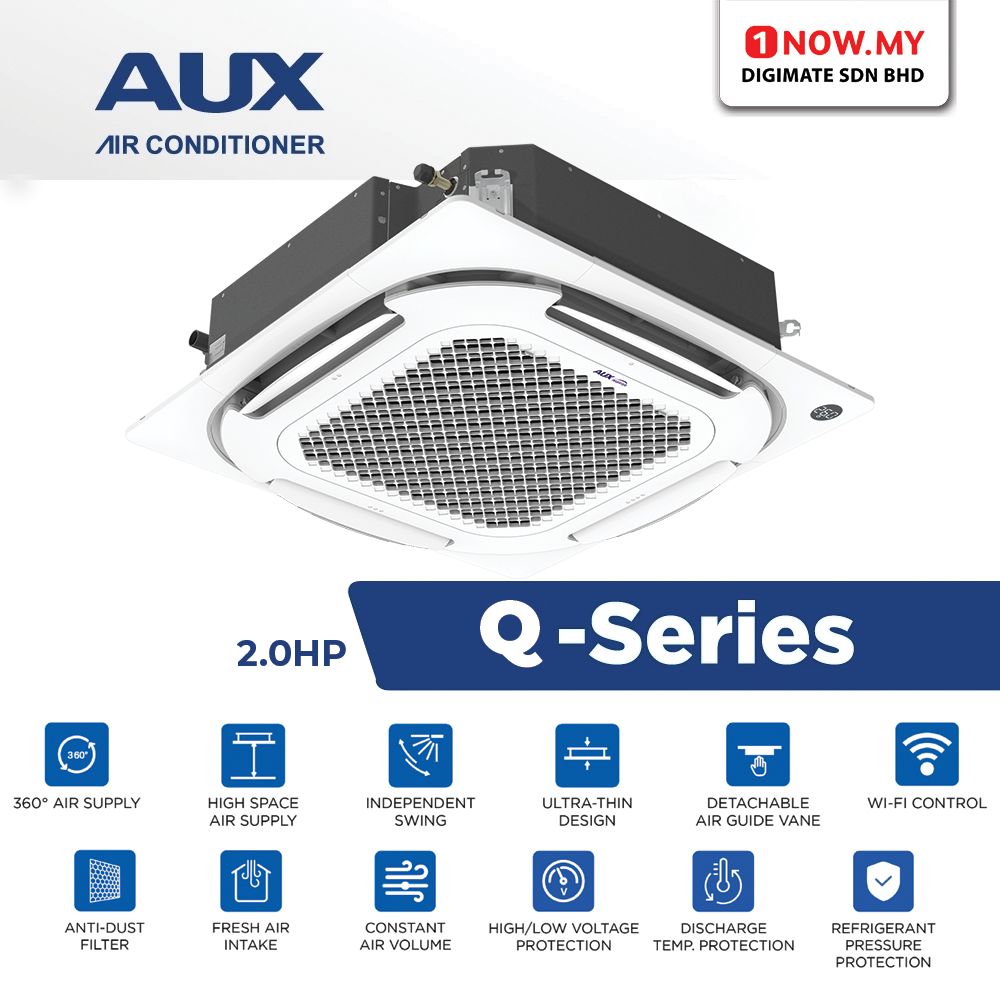

AUX 2HP Inverter Ceiling Cassette Model-Q ALCA-C18

Specifications

Model

• Indoor | Outdoor: ALCA-C18/4DR3QAB | AL-C18/4DR3Q(U)

Capacity (Cooling)

• Btu/h: 18,000
• kW: 5.28 (1.58–5.59)

Electric Data

• Rated Cooling Power Input (kW): 1.60 (0.43–1.90)
• Rated Cooling Current (A): 8.00 (2.18–8.70)


Performance

• EER (W/W): 3.30


Indoor Unit

• Power Supply (V, Hz, Ph): 220–240V~, 50Hz, 1Ph
• Indoor Airflow (SH/Hi/Mi/Lo) (m³/h): 1100 / 1000 / 850 / 700
• Noise Level (Hi/Mi/Lo) [dB (A)]: 42 / 39 / 35

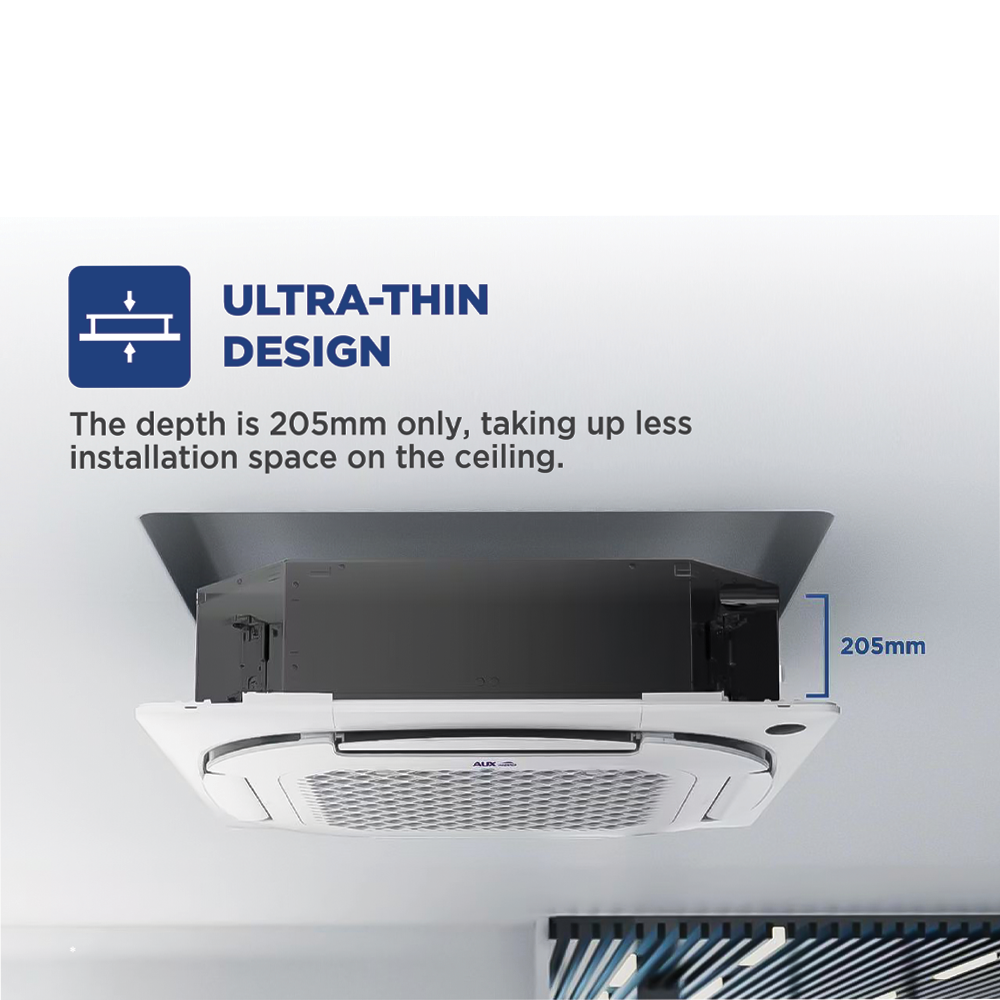

• Dimensions (WxDxH): Net (Body): 840 × 840 × 205 mm | (Panel): 950 × 950 × 53 mm
• Weight: Net (Body): 18.5 kg | (Panel): 5.3 kg

Outdoor Unit

• Power Supply (V, Hz, Ph): 220–240V~, 50Hz, 1Ph
• Air Flow Volume – CFM: 1353 | m³/h: 2300
• Noise Level [dB (A)]: 52
• Net Dimensions (WxDxH) [mm]: 705 × 279 × 530
• Net Weight: 26 kg


Refrigerant Pipe

• Liquid Size (mm/inch): 6.35 (1/4)
• Gas Size (mm/inch): 12.7 (1/2)
