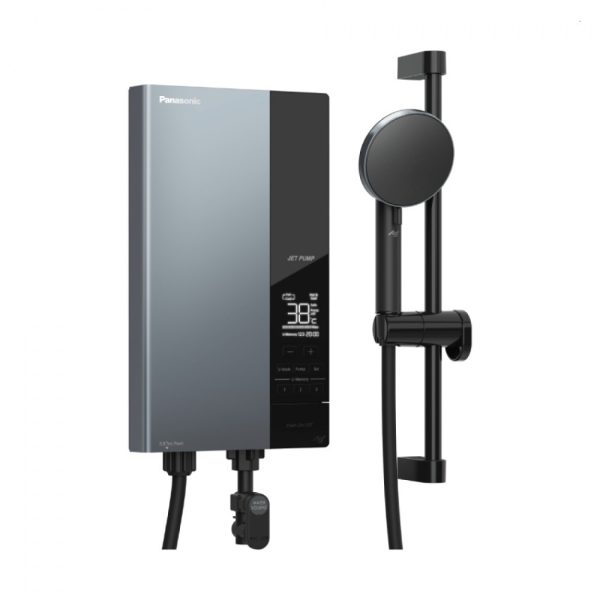

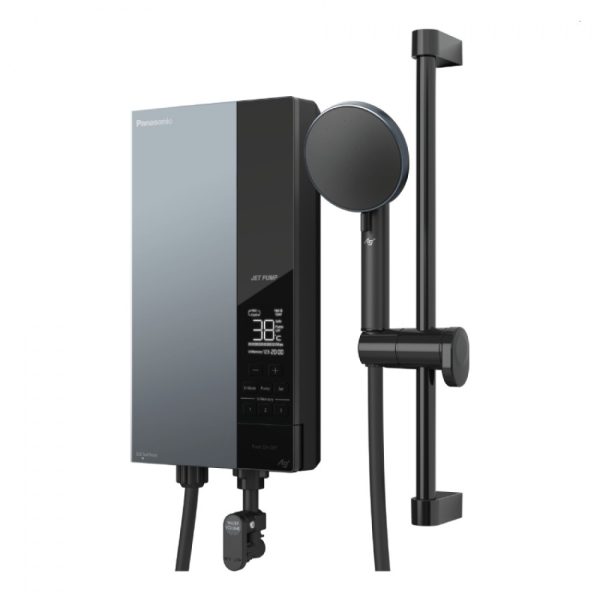

PANASONIC U Series Digital Instant Water Heater DH-3UDP1MZ (DC Pump)

Specifications

Basic Specification

• PUMP/ NO PUMP: DC Pump
• TYPE: LCD type
• Power Supply: 240 V, 50 Hz
• Rated Power: 3.6 kW
• Water Pressure: Minimum: 0.05 kgf/cm² / Maximum: 3.87 kgf/cm²
• Dimensions (h x w x d) mm: 385 x 210 x 78
• Main Unit Weight (kg): 2.8 kg
• Body Colour: Dark Metallic Navy
• Standard Regulation: SURUHANJAYA TENAGA (Safety)
• ELB indication method: "SAFE" word on LCD screen

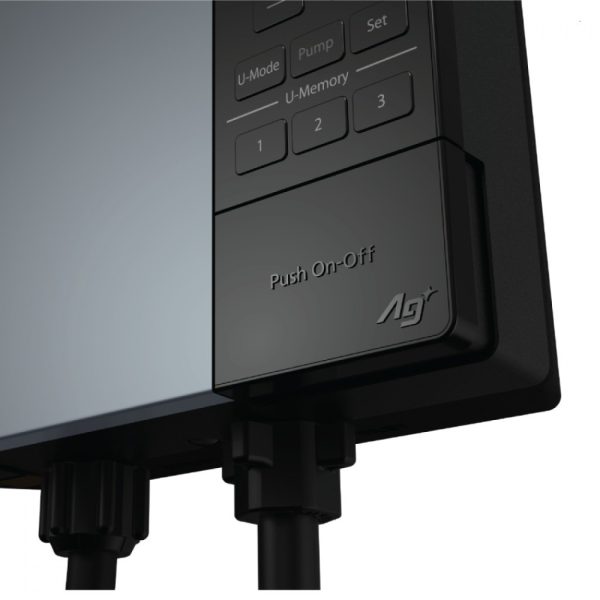

• Water Stop System: One Push On/Off Switch

9 Safety Features

• 1. Water Splash Prood Case Cover: IEC 60529 (IP2X)
• 2. Durable Copper Heater Uni
• 3. On Push On/Off Switch
• 4. Insulated Structure: IEC 60529 (IP2X)
• 5. Built-in Earth Leakage Breaker (ELB)
• 6. Water Flow Sensor
• 7. Non-flammable Material Cover
• 8. Manual Reset Thermostat
• 9. Auto Thermal Cut-off: 55ºC

Comfort Features

• U-memory: Yes
• U-mode: Yes (Warm Up, Cool Down, Hot & Cool Modes)
• On/Off Pump function: Yes
• Ag+ Antibacterial material: Yes

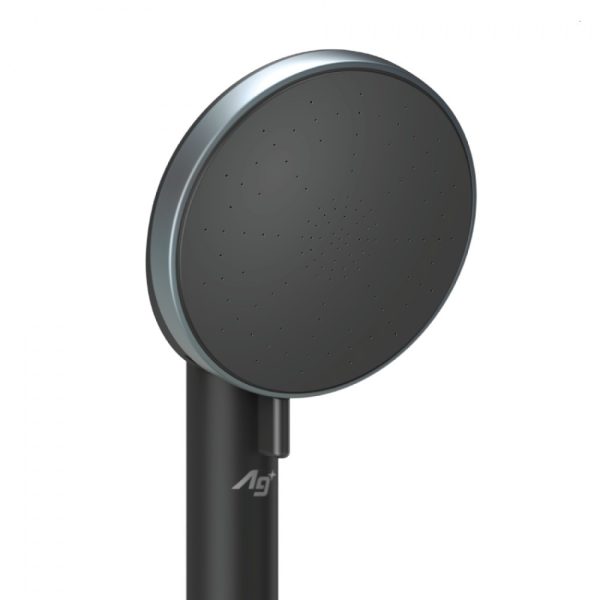

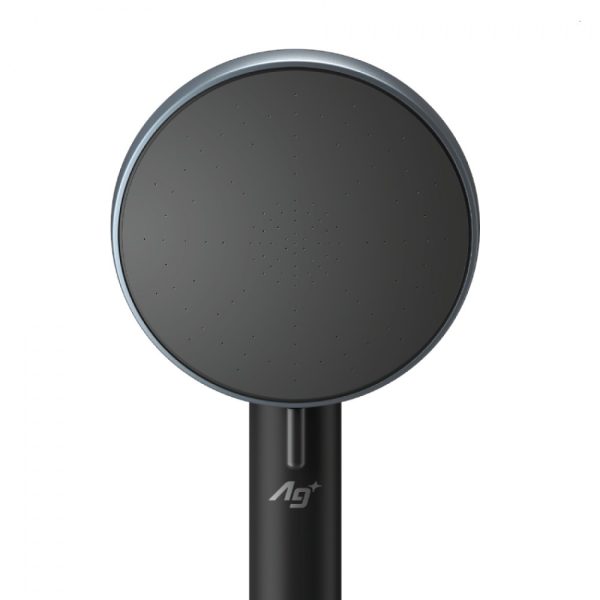

• 3-way Shower: Normal, Wide, Spot
