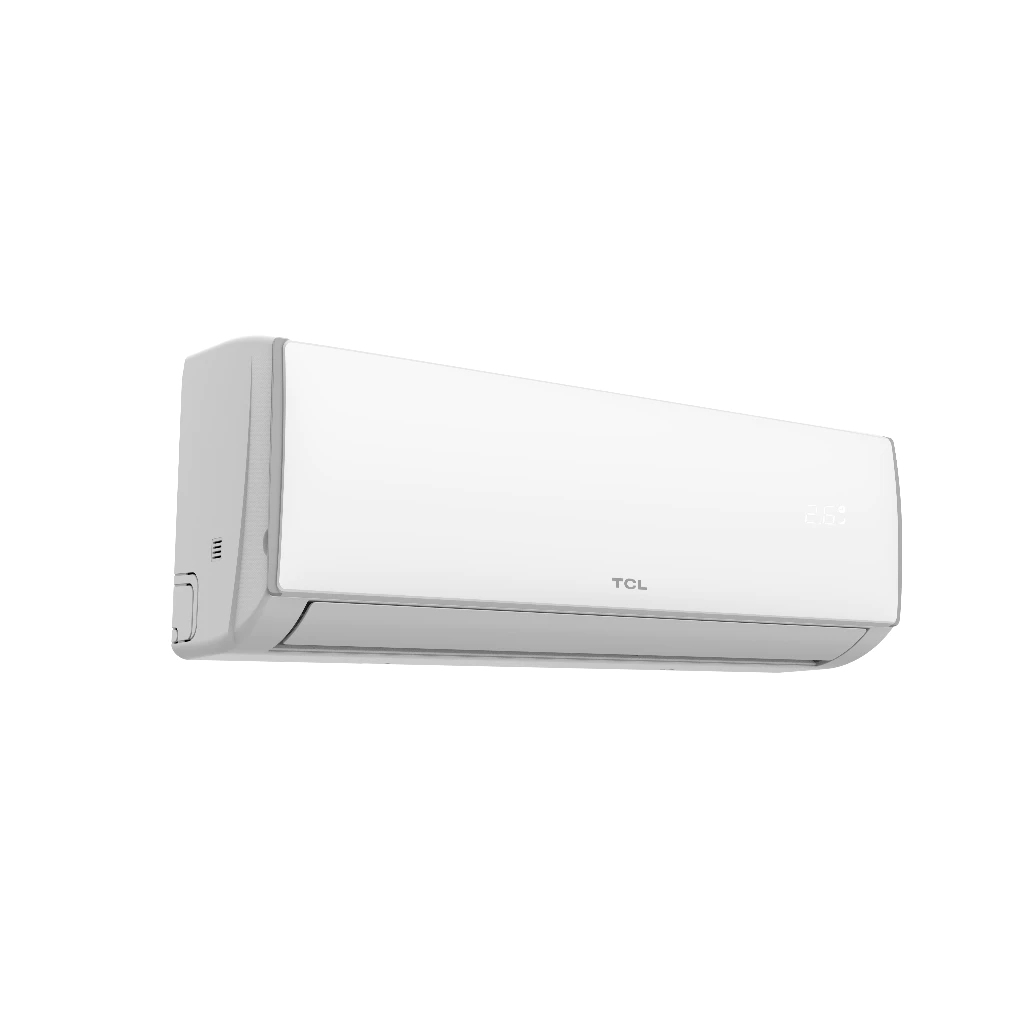

TCL 1HP Inverter Air Conditioner Elite TAC-10CSD/KCI | 4 Star Energy Efficient

Specifications

TAC-10CSD/KCI

• Rated cooling capacity (BTU/hr): 9010
• Rated cooling capacity (W): 2640
• Moisture Removal (Liters/h): 0.8
• Indoor air circulation (m3/h): 570
• Suitable Area (m2): 9~16

Electrical Data

• Power supply (V/Hz): 220-240V~/50Hz/1P
• Voltage Range (V): 165~265
• Rated Current (A): 4.0（1~7）
• Rated Input Power (W): 900（220~1200）

Refrigerating System

• Refrigerant: R32

Connections

• Liquid Connecting Pipe (Inches): φ6(1/4'')
• Gas Connecting Pipe (Inches): φ9.52(3/8'')
• Connecting Wiring (Size x Core number): 1.0×4

Others

• Net Weight Indoor(kg): 7.5
• Net Weight Outdoor(kg): 19
• Gross Weight Indoor(kg): 9.5
• Gross Weight Outdoor(kg): 22
• Net Dimension Indoor(W*H*D): 777×250×201
• Net Dimension Outdoor(W*H*D): 722×276×459
• Packing Dimension Indoor(mm): 840×315×260
• Packing Dimension Outdoor(mm): 765×310×481
